Product Description

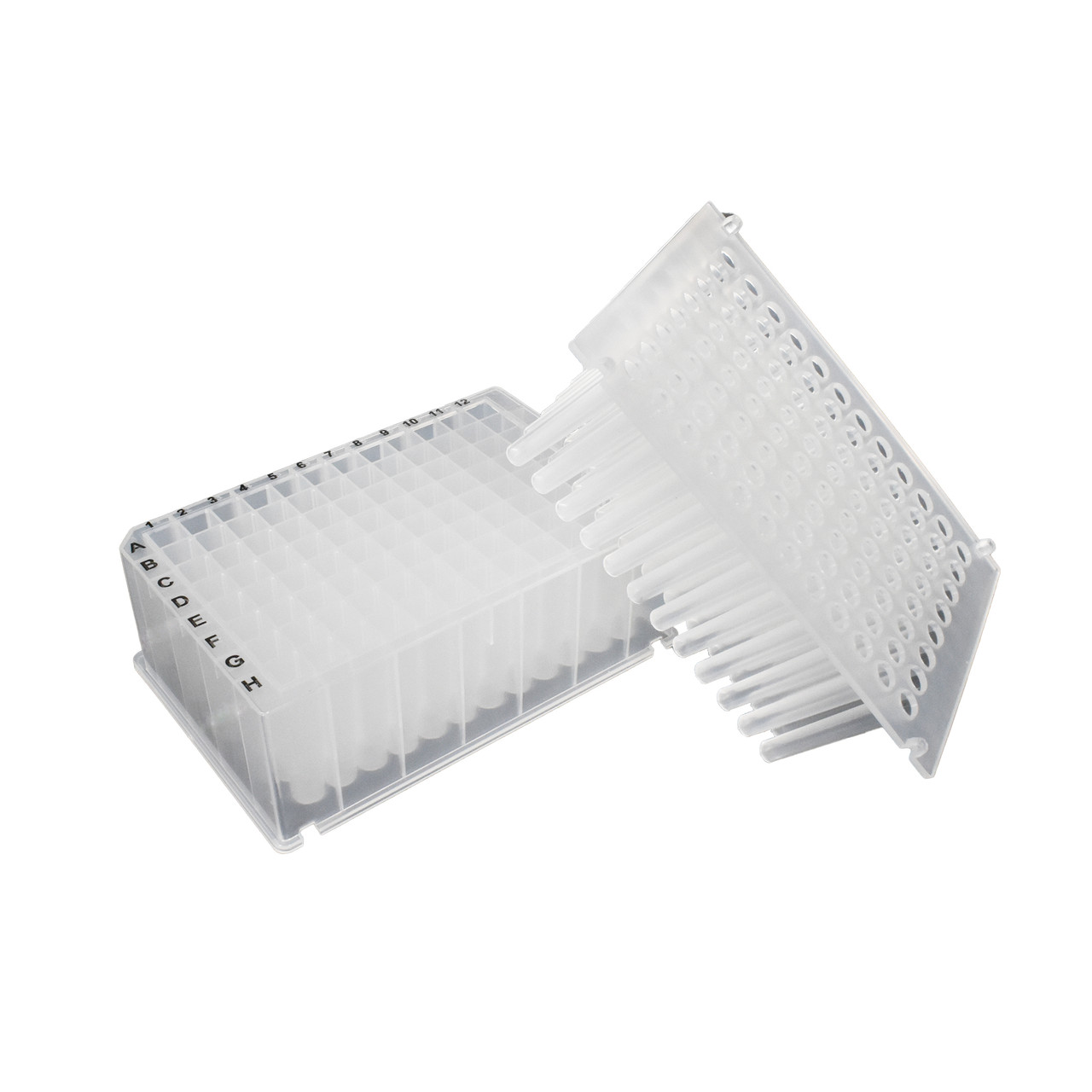

The MTC Bio OptiWell™ D3096-KFC is a sterile, pre-paired combo pack containing one 96-well deep well plate and one matching tip comb per set — packaged in cases of 50 sets (10 bags of 5). Engineered as a cost-effective, high-performance alternative consumable for KingFisher™ magnetic particle processing instruments, the OptiWell combo delivers consistent results in automated nucleic acid purification and related molecular biology workflows.
Compatible Instruments Designed for use with the full KingFisher™ instrument family:
- KingFisher Flex™
- KingFisher Duo Prime™
- KingFisher Apex™
- KingFisher Presto™
- Accuris IsoPure™ automation platforms
Deep Well Plate — 96-Well, 2.2mL, V-Bottom The OptiWell deep well plate is useful for bacterial cultures, centrifugation (up to 4,000 × g), and general sample storage. Each plate features:
- 96 square wells with conical V-bottoms
- 2.2 mL working volume per well
- 44.2 mm well height for deep-well magnetic processing
- Black alphanumeric printing for easy plate orientation and sample tracking
- Virgin, medical-grade polypropylene construction with minimal liquid retention
- Compatible with silicone sealing mats and various types of sealing film
Tip Combs — Low-Binding Medical-Grade Polypropylene Designed for optimal performance in magnetic particle-based protocols, these tip combs are ideal for DNA and RNA extraction, viral RNA isolation, immunoprecipitations, and nucleic acid quantification. I The low-binding polypropylene surface minimizes sample loss and non-specific binding, ensuring maximum recovery from magnetic bead-based purification workflows.
Manufacturing & Quality Standards All plates are produced in a class 100,000 cleanroom facility and are ANSI/SLAS 1-2004 compliant. All plates are certified RNase/DNase free and non-pyrogenic. Sterilized by gamma irradiation in accordance with ISO 13485.
Key Features
- Pre-paired combo: one plate + one tip comb per sterile bag
- 50 matched sets per case (10 bags × 5 sets)
- Compatible with KingFisher Flex, Duo Prime, Apex, and Presto
- 96-well format, 2.2 mL V-bottom square wells
- Low-binding, medical-grade polypropylene tip combs
- Sterile — gamma irradiated per ISO 13485
- Certified RNase-free, DNase-free, non-pyrogenic
- ANSI/SLAS 1-2004 compliant
- Black alphanumeric printing for sample identification
- Class 100,000 cleanroom manufactured
Ideal Applications
- Automated genomic DNA extraction
- Viral RNA purification and isolation
- Cell-free DNA (cfDNA) purification
- Immunoprecipitation (IP / ChIP)
- Nucleic acid quantification workflows
- Any magnetic bead-based sample prep on KingFisher™ platforms
