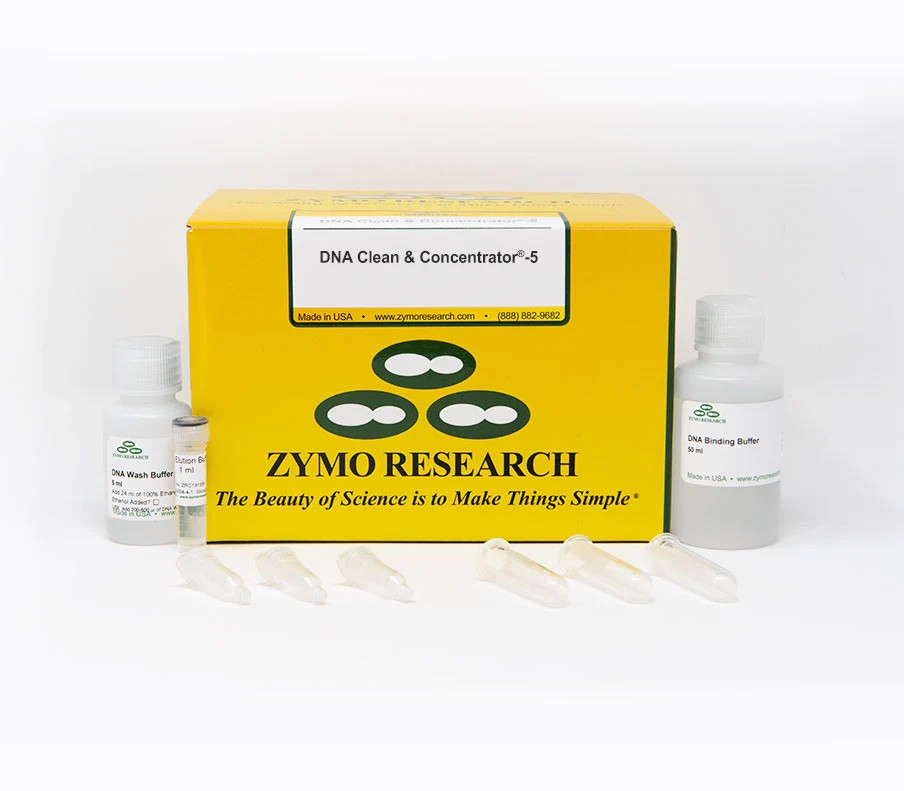

Zymo Research D4013 DNA Clean & Concentrator™-5 — Capped Columns, 50 Preps

The Zymo Research D4013 DNA Clean & Concentrator™-5 (DCC™-5) is Zymo Research's most popular PCR purification and DNA clean-up kit, delivering ultra-pure, highly concentrated DNA from PCR reactions, enzymatic digestions, and other impure DNA preparations in as little as 2 minutes. The D4013 is the 50-prep format with capped Zymo-Spin™ IC columns — ideal for labs that prefer labeled or secured columns for easy sample tracking. Up to 5 µg of DNA can be purified per prep with a minimum elution volume of just 6 µL and zero wash residue carryover.

2-Minute PCR Cleanup — No Precipitation Required Clean and concentrate up to 5 µg DNA with ≥ 6 µl elution in as little as 2 minutes with 0 µl wash residue carryover. Simply add the DNA Binding Buffer to your sample, transfer to the Zymo-Spin™ IC Column, wash, and elute. No ethanol precipitation, no phenol-chloroform extraction, no lengthy centrifuge spins — just clean, sequencing-ready DNA in 2 minutes.

Comprehensive Contaminant Removal The DCC-5 facilitates removal of a broad range of contaminants in a single cleanup step including: DNA polymerases, modifying enzymes, RNA polymerases, ligases, kinases, nucleases, phosphatases, restriction endonucleases, free dNTPs and their analogs (including radiolabeled and fluorescent derivatives), salts, and primers. The result is ultra-pure DNA with A260/A280 > 1.8, ready for the most sensitive downstream applications.

Zero Buffer Retention — Maximum Yield in Minimum Volume Zymo-Spin™ IC columns are specifically engineered for complete elution with no buffer retention or carryover. This means every microliter of your precious elution buffer delivers DNA — no volume lost to column dead space. Elute in as little as 6 µL of DNA Elution Buffer or water for maximum concentration.

Capped Zymo-Spin™ IC Columns The D4013 uses capped Zymo-Spin™ IC columns, which many researchers prefer for easy labeling, secure sample identification during processing, and added protection against evaporation or contamination between steps. The uncapped equivalent is D4003 (50 preps) — the column matrix, binding capacity, and performance are identical between both formats.

Broad DNA Source Compatibility The DCC-5 cleans up DNA from a wide range of sources including:

• PCR products and amplicons
• Restriction endonuclease digestions
• DNA modification reactions
• Isotope and fluorescence labeling reactions
• post-RT cDNA preparations
• M13 phage DNA from phage-infected E. coli
• Cell lysates and crude DNA preparations

Detergent Tolerant Compatible with samples containing ≤ 5% Triton X-100, ≤ 5% Tween-20, ≤ 5% Sarkosyl, and ≤ 0.1% SDS — making it suitable for a broad range of lysis and reaction buffers.

Kit Components (50 Preps — D4013)

• Zymo-Spin™ IC Columns, capped (50)
• Collection Tubes (50)
• DNA Binding Buffer
• DNA Wash Buffer Concentrate (requires addition of ethanol prior to use — see label)
• DNA Elution Buffer
• Instruction Manual

Available DCC-5 Formats:

• D4003T — DCC-5, Uncapped, 10 Preps
• D4003 — DCC-5, Uncapped, 50 Preps
• D4004 — DCC-5, Uncapped, 200 Preps
• D4013 — DCC-5, Capped (Zymo-Spin™ IC), 50 Preps (this product)
• D4014 — DCC-5, Capped (Zymo-Spin™ IC), 200 Preps

Need Higher Capacity? See the DCC Series:

• D4005/D4033 — DNA Clean & Concentrator-25 (up to 25 µg)
• D4029/D4030 — DNA Clean & Concentrator-100 (up to 100 µg)
• D4031/D4032 — DNA Clean & Concentrator-500 (up to 500 µg)
• D4010/D4011 — Genomic DNA Clean & Concentrator-10 (HMW DNA, up to 200 kb)

Key Features

• 2-minute PCR purification — fastest in the DCC family
• Up to 5 µg DNA per prep
• Minimum elution volume: ≥ 6 µL
• Zero buffer retention or carryover — Zymo-Spin™ IC column design
• Capped columns for easy labeling and secure sample handling
• Removes polymerases, dNTPs, salts, primers, and enzymes in one step
• DNA size range: 50 bp to 23 kb
• Recovery: 70–95% for 50 bp–10 kb; 50–70% for 11–23 kb
• Purity: A260/A280 > 1.8
• Detergent tolerant (Triton X-100, Tween-20, Sarkosyl, SDS)
• Compatible with cDNA, ssDNA, and M13 phage DNA cleanup
• Picogram-level DNA recovery possible
• Equipment: microcentrifuge only (10,000–16,000 × g)
• 50 preps per kit
• 1-year kit integrity guarantee; lot-to-lot tested

Supported Applications PCR cleanup and purification, restriction endonuclease digestion cleanup, post-labeling cleanup, sequencing preparation, DNA ligation, microarray analysis, RNA transcription, cDNA cleanup, radiolabeling reactions, DNA transfection, and any sensitive downstream application requiring ultra-pure, highly concentrated DNA.

Technical Specifications
