Product Description
Accurate vacuum measurement and control is the key to reproducible evaporation and drying. VACUUBRAND gauges and controllers measure and regulate process pressure precisely, protecting samples and reducing process time.

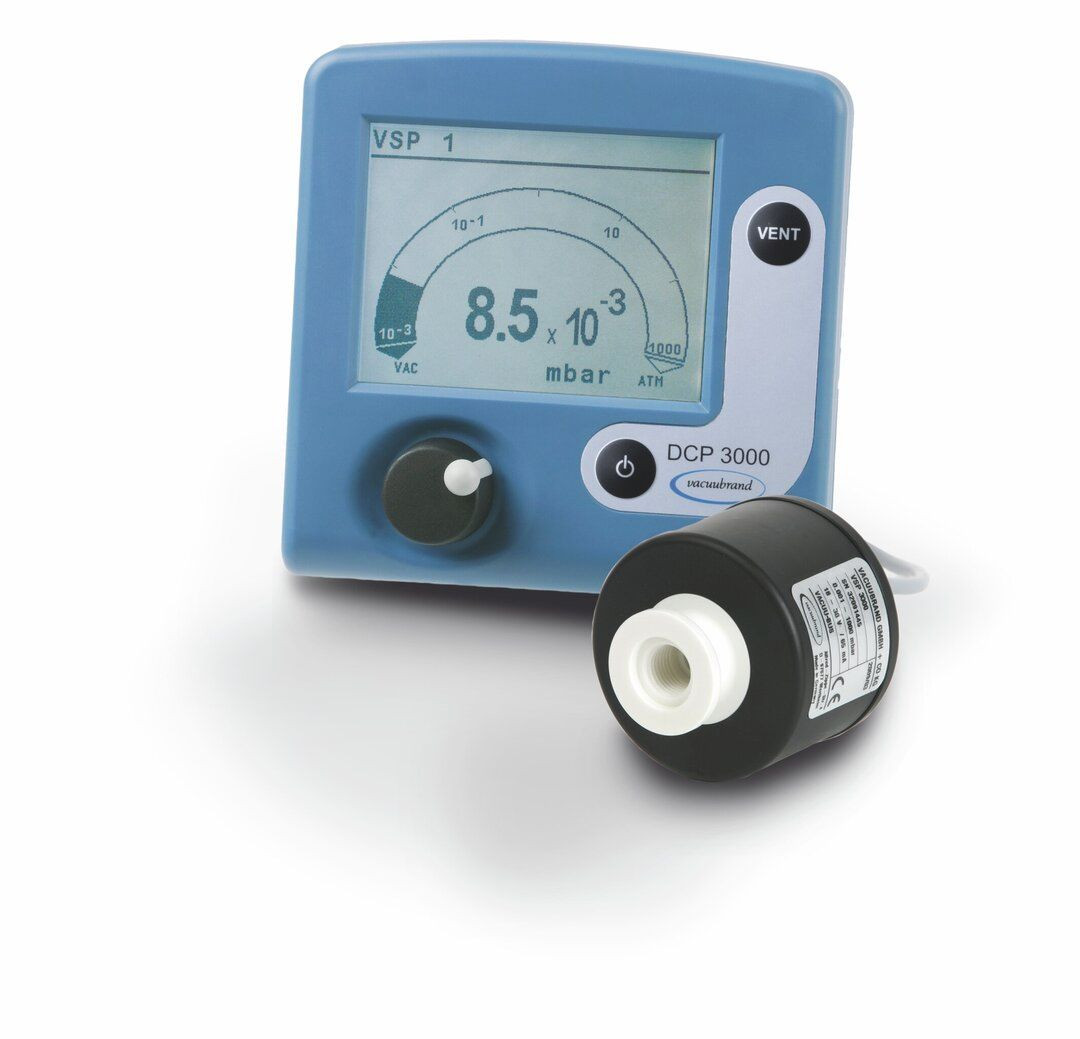

The VACUUBRAND 20683190 is the version of the Set DCP 3000 + VSP 3000 Vacuum gauge, 100-230V/50-60Hz. They integrate with VACUUBRAND pumps and the VACUU·BUS system. Order genuine VACUUBRAND vacuum gauge from LIGHT LABS, ready to ship to your lab.
Key Features
- Precise vacuum measurement
- Integrates with VACUUBRAND pumps
- Clear digital display
Specifications
| Catalog Number | 20683190 |
| Brand | VACUUBRAND |
| Product | Set DCP 3000 + VSP 3000 Vacuum gauge, 100-230V/50-60Hz |
| Upper measuring limit in mbar/hPa | 1000 mbar |
| Upper measuring limit in torr | 750 torr |
| Lower measuring limit in mbar/hPa | 1 x 10-3 |
| Lower measuring limit in torr | 1 x 10-3 torr |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar/hPa/torr mbar/hPa/torr |
| Vacum connection | Small flange KF DN 16 and hose nozzle DN 6/10 mm |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Max. media temperature for continuous operation | 40 °C |
| Max. media temperature short term | 80 °C |
| Material of outer housing | Robust plastic housing with good chemical resistance |
| Protection class IEC 60529 | IP 20 |
| Protection class UL50E | Type 1 |
| Protection class front side IEC 60529 | IP 42 |
| Weight | 0.44 kg |
| Dimension L in mm | 144 mm |
| Dimension B in mm | 124 mm |
| Dimension H in mm | 114 mm |
| Vacuum sensor | VSP 3000 |
| Cable length of vacuum sensor | 2 m |
| Cable length connection in m | 2 m |
| NRTL certification | Yes |
| Items supplied | Vacuum gauge with external vacuum sensor VSP 3000, ready for operation, with wall-plug power supply and manual. |
| Interface | RS 232C |
| Pack Size | 1 each |
| Country of Origin | Germany |
Applications
- Rotary evaporation
- Vacuum process monitoring
- Drying and distillation
