Product Description

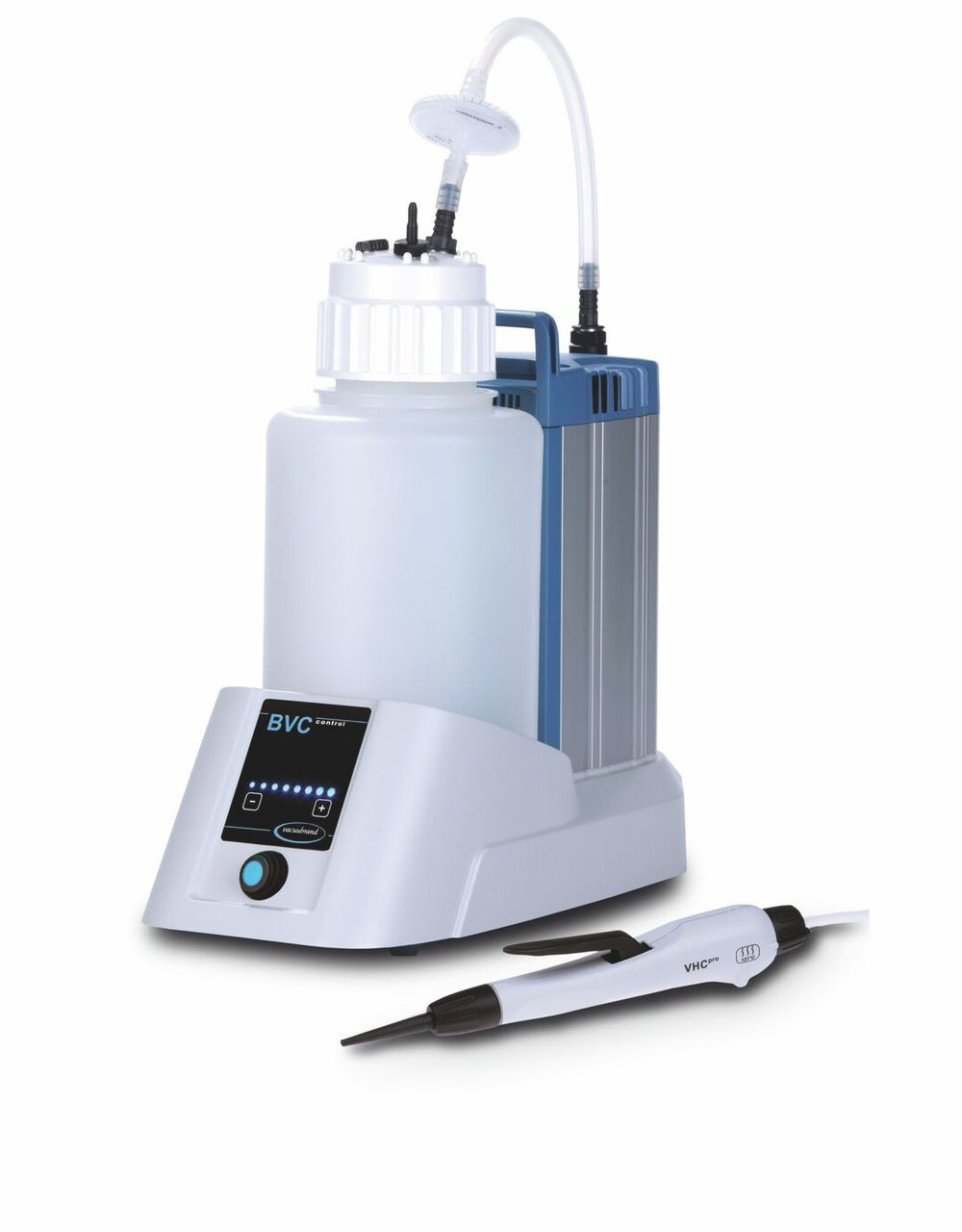

The VACUUBRAND 20727203 BVC control Fluid aspiration system, 100-120V/50-60Hz, US Power Cord is a genuine VACUUBRAND vacuum accessory. Keeping original replacement parts and accessories on hand helps minimize downtime and keeps instruments performing to specification. Add the VACUUBRAND vacuum accessory to your next LIGHT LABS order and keep your workflow on schedule.
Specifications
| Catalog Number | 20727203 |
| Brand | VACUUBRAND |
| Product | BVC control Fluid aspiration system, 100-120V/50-60Hz, US Power Cord |
| Max. pumping speed 50 Hz | 0.7 m3/h (Vacuum pump) |
| Max. pumping speed 60 Hz | 0.5 cfm (Vacuum pump) |
| Ultimate vacuum | 150 mbar / 112 torr |
| Vacuum controller | Touchpanel |
| Control range | 150 - 850 mbar (adjustable) |
| Collection bottle | 4l Polypropylene |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | Suction controller |
| Outlet connection | Hose nozzle DN 8 mm / silencer |
| Rated motor power | 0.04 kW |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
| Protection class IEC 60529 | IP 40 |
| Weight | 7.7 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE) | 49 dBA |
| NRTL certification | Yes |
| Items supplied | Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, aspiration hand set VHCpro and protection filter, ready for use with manual. |
| Rated mains voltage range 1 | 100-115 V |
| Rated mains voltage range 2 | 120 V |
| Mains frequency 1 | 50-60 Hz |
| Mains frequency 2 | 60 Hz |
| Pack Size | 1 each |
| Country of Origin | Germany |
