Product Description
Dependable vacuum is at the heart of evaporation, filtration, drying and degassing. VACUUBRAND pumps are engineered in Germany for long service life, low noise and efficient operation in the laboratory.

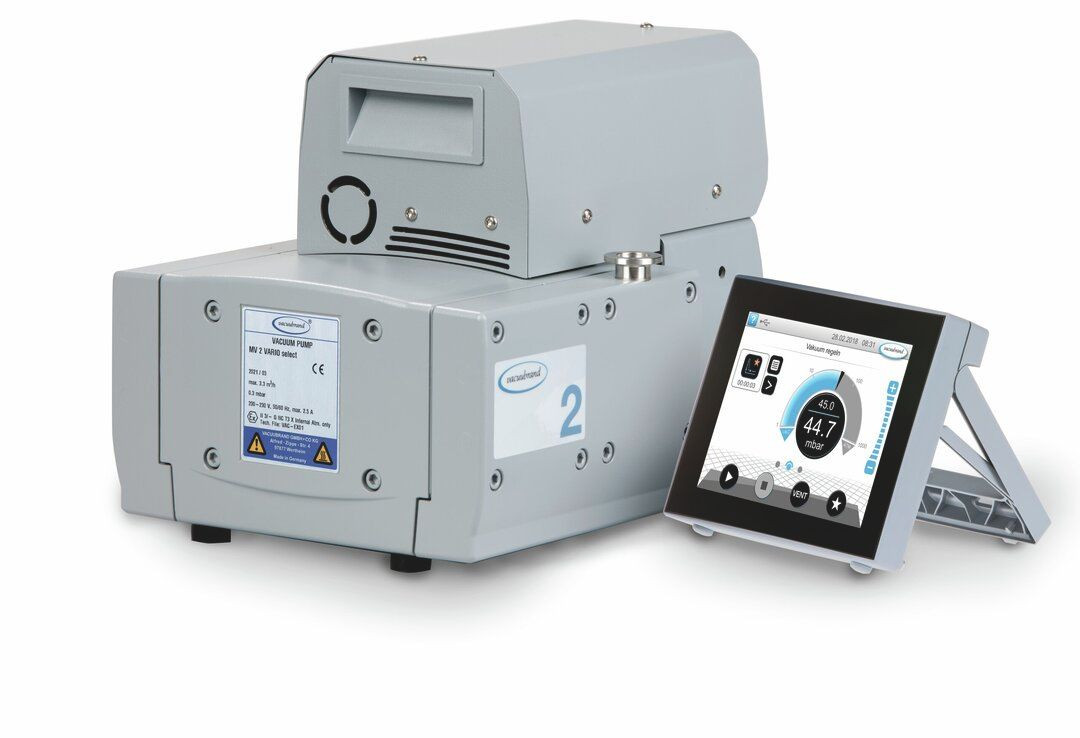

The VACUUBRAND 20738153 is the version of the MV 2 VARIO select Diaphragm pump, 100-120 V, 50-60 Hz. Chemistry-resistant models use fluoroplastic flow paths for corrosive vapors, and VARIO models adjust motor speed automatically to the process for faster, cleaner results. LIGHT LABS supplies genuine VACUUBRAND products with knowledgeable support from our Englewood, Colorado team.
Key Features
- Engineered for long service life and low maintenance
- Quiet, low-vibration operation
- Chemistry-resistant versions for corrosive vapors
- Variants with condensers, separators and controllers available
Specifications
| Catalog Number | 20738153 |
| Brand | VACUUBRAND |
| Product | MV 2 VARIO select Diaphragm pump, 100-120 V, 50-60 Hz |
| Max. pumping speed 50 Hz | 3.3 m3/h |
| Max. pumping speed 60 Hz | 1.9 cfm |
| Ultimate vacuum | 0.3 mbar / 0.2 torr |
| Number of heads | 4 |
| Number of stages | 4 |
| Vacuum controller | VACUU·SELECT |
| Lower ambient temperature (operation) | 10 °C |
| Upper ambient temperature (operation) | 40 °C |
| Lower ambient temperature (storage) | -10 °C |
| Upper ambient temperature (storage) | 60 °C |
| Max. back pressure (abs.) | 1.1 bar |
| Inlet connection | small flange KF DN 16 |
| Outlet connection | Silencer / G1/4" |
| Rated motor power | 0.53 kW |
| Protection class IEC 60529 | IP 20 |
| Dimension L in mm | 325 mm |
| Dimension B in mm | 235 mm |
| Dimension H in mm | 245 mm |
| Weight | 19.1 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE) | 45 dBA |
| NRTL certification | No |
| Items supplied | Pump completely mounted, ready for use, with manual. |
| Rated mains voltage range 1 | 100-120 V |
| Mains frequency 1 | 50-60 Hz |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
| Pack Size | 1 each |
| Country of Origin | Germany |
Applications
- Rotary evaporation
- Vacuum filtration and drying
- Gel dryers and concentrators
- Degassing and distillation
