Product Description
Top resolution, the largest display and the most application modes in the OHAUS industrial bench lineup make the Ranger 7000 the scale to reach for when a job demands more. From formulation and sieve analysis to advanced checkweighing and counting with auto optimization, it brings laboratory-style capability to the plant floor.

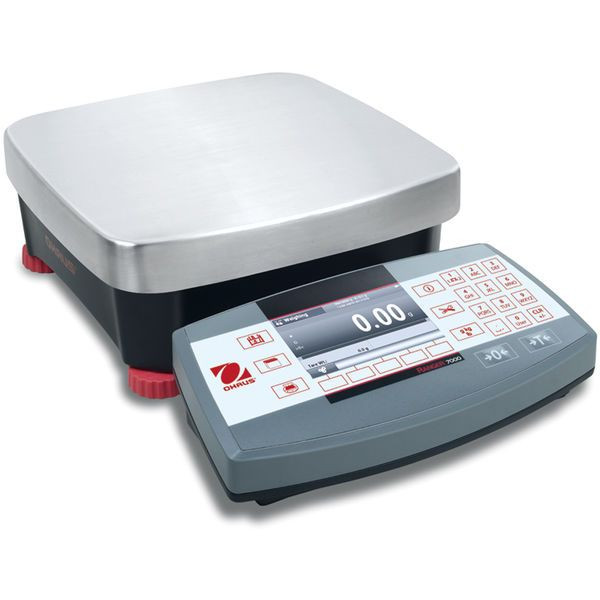

This listing is for OHAUS item number 30070289: Ranger 7000 Compact Bench Scale R71MD3 AM, 6 lb x 0.0001 lb, External Calibration. A modular die-cast housing with a removable stainless steel platform, integral weigh-below hook, menu lock switch and level indicator is rated IP54, and an in-use cover is included. The 4.3 in full-color graphic display guides users through a large memory library, while USB and RS232 are standard with second RS232 or Ethernet available, plus digital I/O and a second scale input. Models are NTEP certified and Measurement Canada approved, and high-resolution versions add semi-automatic InCal internal calibration. Order it from LIGHT LABS alongside the rest of your OHAUS balances, weights and lab equipment.
Key Features
- 4.3 in Color Graphic Display – full-color graphic display with user-controlled brightness
- Extensive Application Modes – counting, checkweighing, filling, formulation, differential, density and sieve analysis
- High Resolution Models – readability down to 0.01 g on high-definition versions
- Expandable Connectivity – USB and RS232 standard, Ethernet or second RS232 optional, digital I/O and second scale input
- IP54 Die-Cast Housing – modular design with removable stainless steel platform
- Legal for Trade – NTEP certified and Measurement Canada approved
Specifications
| Item Number | 30070289 |
| Brand | OHAUS |
| Description | Ranger 7000 Compact Bench Scale R71MD3 AM, 6 lb x 0.0001 lb, External Calibration |
| Maximum Capacity | 6 lb (3 kg) |
| Readability | 0.0001 lb (0.05 g) |
| Readability (Certified) | 0.001 lb (0.5 g) |
| Platform Size | 11 in x 11 in (280 mm x 280 mm) |
| Battery Life | 12 Hours with Rechargeable Battery |
| Second Scale Input | Yes |
| Communication | 2nd RS232 (Available as an Accessory);Ethernet (Available as an Accessory);USB (Included);RS232 (Included) |
| Dimensions | 16.5 in x 4.5 in x 11 in (420 mm x 114 mm x 280 mm) (LxHxW) |
| Display | 4.3’’/10.9cm TFT Graphic LCD |
| Internal Calibration | Not Applicable |
| In-Use Cover | Included |
| Legal for Trade | NTEP Certified;Measurement Canada Approved |
| Linearity ± | 0.1 g |
| Net Weight | 15 lb (6.8 kg) |
| Outputs | 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Power | Rechargeable Battery (Not Included);AC Power (Included) |
| Protection Rating | IP54 |
| Tare Range | To capacity by subtraction |
Related Models
- 30070311 – Ranger 7000 Compact Bench Scale R71MD15 AM, 30 lb x 0.0005 lb, External Calibration
- 30070312 – Ranger 7000 Compact Bench Scale R71MD35 AM, 70 lb x 0.001 lb, External Calibration
- 30070310 – Ranger 7000 Compact Bench Scale R71MD6 AM, 15 lb Capacity
- 30212873 – Ranger 7000 Compact Bench Scale R71MD60 AM, 150 lb x 0.002 lb, External Calibration
- 30088840 – Ranger 7000 Compact Bench Scale R71MHD3 AM, 6 lb x 0.00002 lb, InCal Internal Calibration
- 30088843 – Ranger 7000 Compact Bench Scale R71MHD35 AM, 70 lb x 0.0002 lb, InCal Internal Calibration
- 30088841 – Ranger 7000 Compact Bench Scale R71MHD6 AM, 15 lb x 0.00005 lb, InCal Internal Calibration
Applications
- Formulation and batching
- Precision parts counting
- Advanced checkweighing
- Density determination
- Sieve analysis
- Quality control
