Product Description
Get 0.1 mg readability with a balance that new users can learn in minutes. Adventurer analytical balances pair a full-color 4.3 in touchscreen with the built-in applications routine labs rely on, from parts counting and formulation to density determination.

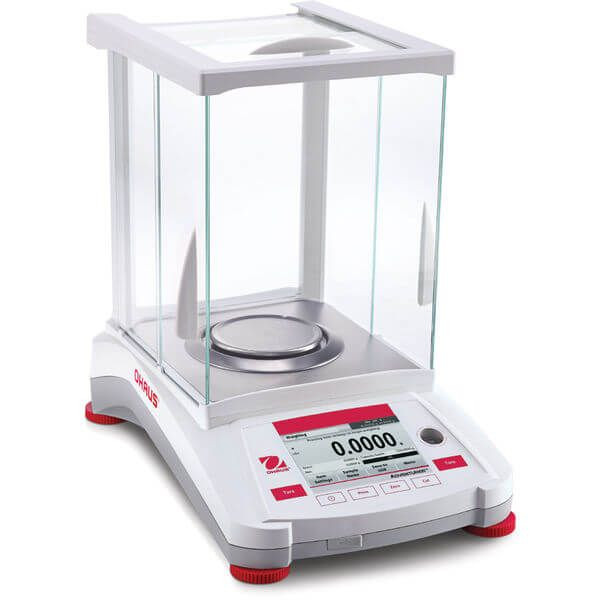

This listing is for OHAUS item number 30100604: Adventurer Analytical Balance AX324, 320 g x 0.1 mg, AutoCal Internal Calibration. Construction includes a metal base, ABS top housing, stainless steel 90 mm pan, glass draftshield, illuminated level indicator, weigh below hook, security bracket and full in-use cover. RS232, USB Device and USB Host ports are standard, three-level user management supports GLP/GMP work, and an AC adapter is included. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- AutoCal Internal Calibration – Automatic calibration on most models; /E models use external calibration
- 4.3 in Color Touchscreen – Full-color WQVGA display with intuitive navigation
- GLP/GMP Support – Three-level user management and real-time clock data output
- Multiple Interfaces – RS232, USB Device and USB Host included
- Glass Draftshield – Protects readings from air currents
- Built-In Applications – Counting, percent, check, dynamic weighing, formulation and density
Specifications
| Item Number | 30100604 |
| Brand | OHAUS |
| Description | Adventurer Analytical Balance AX324, 320 g x 0.1 mg, AutoCal Internal Calibration |
| Maximum Capacity | 320 g |
| Readability | 0.1 mg |
| Pan Size | 3.5 in (90 mm) |
| Internal Calibration | AutoCal - Automatic |
| Draftshield | Included |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | USB;RS232 (Included);USB Host |
| Dimensions | 13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW) |
| Display | Full-Color 4.3 in Touchscreen WQVGA |
| In-Use Cover | Included |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.2 mg |
| Minimum Weight (USP, 0.1%, typical) | 0.2 g |
| Net Weight | 11.3 lb (5.1 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.1 mg |
| Stabilization Time | 3 s |
Related Models
- 30100600 – Adventurer Analytical Balance AX124, 120 g x 0.1 mg, AutoCal Internal Calibration
- 30100601 – Adventurer Analytical Balance AX124/E, 120 g x 0.1 mg, External Calibration
- 30100602 – Adventurer Analytical Balance AX224, 220 g x 0.1 mg, AutoCal Internal Calibration
- 30100603 – Adventurer Analytical Balance AX224/E, 220 g x 0.1 mg, External Calibration
- 30100630 – Adventurer Analytical Balance AX224N, 220 g x 0.1 mg
Applications
- Analytical sample weighing
- Formulation and recipe weighing
- Density determination
- Pharmaceutical QC
- Education and research labs
- GLP/GMP documented weighing
