Product Description
Routine lab weighing gets easier with a precision balance that bundles every everyday application into one intuitive touchscreen. The Adventurer precision balances deliver GLP/GMP-ready features and models from 220 g to 8,200 g.

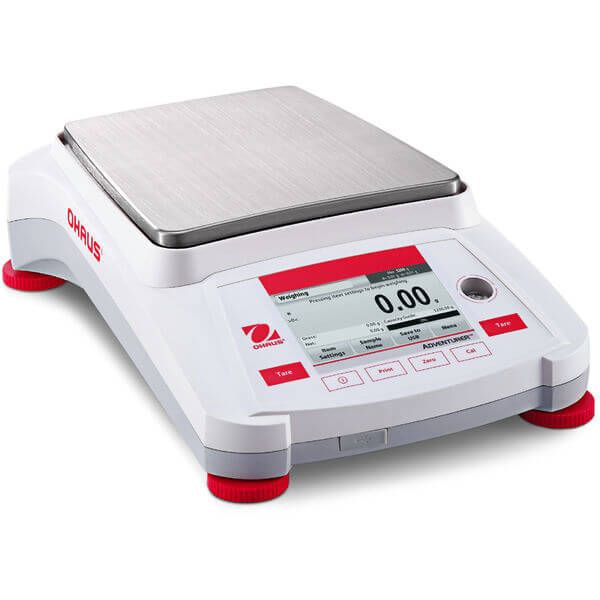

This listing is for OHAUS item number 30248912: Adventurer Precision Balance AX2201/E, 2,200 g x 0.1 g, External Calibration. The balance has a metal base, ABS top housing, stainless steel pan, illuminated up-front level indicator, weigh-below hook, security bracket, calibration lock and a full-housing in-use cover. A 4.3 in color touchscreen runs weighing, parts counting, percent weighing, checkweighing, dynamic weighing, formulation, density determination, totalization, display hold and batch printing. RS232, USB Host and USB Device ports with GLP/GMP output and real-time clock are included, and it runs on the included AC adapter. 1 mg models add a glass draftshield with top-mounted side doors and a sliding top door. Models are offered with AutoCal automatic internal calibration, external calibration (/E), or NTEP legal-for-trade approval (N). Order it from LIGHT LABS alongside the rest of your OHAUS balances, weights and lab equipment.
Key Features
- Color Touchscreen – 4.3 in VGA display with user-controlled brightness
- Ten Built-In Applications – From parts counting to formulation and density
- Three-Level User Management – Supports GLP/GMP compliance
- AutoCal or External Calibration – Choose the calibration method that fits your workflow
- NTEP Options – Legal-for-trade N models for commercial weighing
- Dual USB plus RS232 – GLP/GMP output with real-time clock
Specifications
| Item Number | 30248912 |
| Brand | OHAUS |
| Description | Adventurer Precision Balance AX2201/E, 2,200 g x 0.1 g, External Calibration |
| Maximum Capacity | 2,200 g |
| Readability | 0.1 g |
| Pan Size | 7.7 in x 6.9 in (195 mm x 175 mm) |
| Internal Calibration | Not Applicable |
| Draftshield | — |
| Auto Door | Not Applicable |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | USB;RS232 (Included);USB Host |
| Dimensions | 13.93 in x 3.94 in x 9.05 in (354 mm x 100 mm x 230 mm) (LxHxW) |
| Display | High resolution full colour VGA touch display |
| In-Use Cover | Included |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.2 g |
| Minimum Weight (USP, 0.1%, typical) | 200 g |
| Net Weight | 10.2 lb (4.6 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 0.1 g |
Related Models
- 30100611 – Adventurer Precision Balance AX1502, 1,520 g x 0.01 g, AutoCal Internal Calibration
- 30100636 – Adventurer Precision Balance AX1502N/E, 1,520 g x 0.01 g, NTEP Legal for Trade, External Calibration
- 30100613 – Adventurer Precision Balance AX2202, 2,200 g x 0.01 g, AutoCal Internal Calibration
- 30100614 – Adventurer Precision Balance AX2202/E, 2,200 g x 0.01 g, External Calibration
- 30100637 – Adventurer Precision Balance AX2202N/E, 2,200 g x 0.01 g, NTEP Legal for Trade, External Calibration
- 30100605 – Adventurer Precision Balance AX223, 220 g x 1 mg, AutoCal Internal Calibration
- 30100606 – Adventurer Precision Balance AX223/E, 220 g x 1 mg, External Calibration
- 30100631 – Adventurer Precision Balance AX223N/E, 220 g x 1 mg, NTEP Legal for Trade, External Calibration
- 30122634 – Adventurer Precision Balance AX4201, 4,200 g x 0.1 g, AutoCal Internal Calibration
- 30122635 – Adventurer Precision Balance AX4201/E, 4,200 g x 0.1 g, External Calibration
- 30100615 – Adventurer Precision Balance AX4202, 4,200 g x 0.01 g, AutoCal Internal Calibration
- 30100616 – Adventurer Precision Balance AX4202/E, 4,200 g x 0.01 g, External Calibration
- 30122655 – Adventurer Precision Balance AX4202N/E, 4,200 g x 0.01 g, NTEP Legal for Trade, External Calibration
- 30127981 – Adventurer Precision Balance AX422/E, 420 g x 0.01 g, External Calibration
Applications
- Analytical sample prep
- Formulation
- Density determination
- Quality control
- Parts counting
- Education and research labs
