Product Description
Load testing goes faster when every weight drops straight onto a hanger and stays put. This group of OHAUS two-piece slotted weights and cast iron weight hangers covers metric and avoirdupois values for building repeatable, stackable test loads.

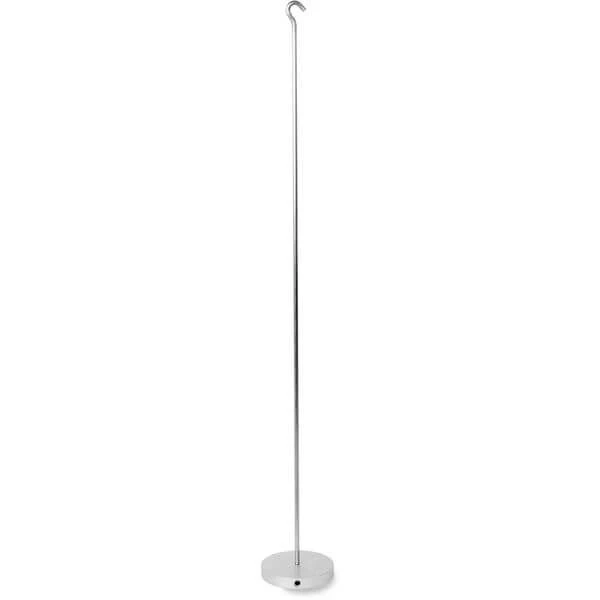

This listing is for OHAUS item number 30391672: Cast Iron Weight Hanger, 1 lb, 20.25 in, Class F, with Accredited Calibration Certificate. Slotted weights are stainless steel with a flat design and a slot that slides onto the hanger stem, while the hangers combine a stainless steel stem with a cast iron base and carry a rated hanger weight capacity. All pieces are two-piece and US-made, adjusted to ASTM Class 5, 6 or 7 or to Class F, and are offered with an accredited certificate, a non-accredited certificate or no certificate. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- Slot-and-Hanger System – Slotted weights slide onto the hanger stem for fast, stable stacking
- Calibrated Hanger Mass – Hangers are calibrated so their own mass counts toward the applied load
- Rated Hanger Capacity – Each hanger lists the maximum load it can carry
- Range of Classes – ASTM Class 5, 6 and 7 plus Class F versions for different tolerance needs
- Certificate Choices – Accredited, non-accredited or no certificate to suit quality requirements
Specifications
| Item Number | 30391672 |
| Brand | OHAUS |
| Description | Cast Iron Weight Hanger, 1 lb, 20.25 in, Class F, with Accredited Calibration Certificate |
| ASTM Class | 6 |
| Weight Value | 1 lb |
| Weight Material | Stainless Steel;Cast Iron |
| Protective Case | Not Included |
| Construction | Two-piece |
| Density at 20°C | 7.20 g/cm3 |
| Design | Hanger |
| Dimensions | 21.75 in x 3.75 in (55.25 cm x 9.525 cm) (HxØ) |
| Hanger Weight Capacity | 200 lb |
| Weight Tolerance | 70 mg |
| Wgt Origin (USA) | USA |
Related Models
- 83040811 – Two-Piece Slotted Weight, 20 kg, ASTM Class 5, No Certificate
- 83040792 – Two-Piece Slotted Weight, 20 lb, ASTM Class 5, with Accredited Calibration Certificate
- 83040760 – Two-Piece Slotted Weight, 20 lb, ASTM Class 5, No Certificate
- 83040829 – Two-Piece Slotted Weight, 25 kg, ASTM Class 5, with Accredited Calibration Certificate
- 83040810 – Two-Piece Slotted Weight, 25 kg, ASTM Class 5, No Certificate
- 83040791 – Two-Piece Slotted Weight, 25 lb, ASTM Class 5, with Accredited Calibration Certificate
- 83040759 – Two-Piece Slotted Weight, 25 lb, ASTM Class 5, No Certificate
- 83040834 – Two-Piece Slotted Weight, 2 kg, ASTM Class 5, with Accredited Calibration Certificate
- 83040815 – Two-Piece Slotted Weight, 2 kg, ASTM Class 5, No Certificate
- 83040796 – Two-Piece Slotted Weight, 2 lb, ASTM Class 5, with Accredited Calibration Certificate
- 83040764 – Two-Piece Slotted Weight, 2 lb, ASTM Class 5, No Certificate
- 83040838 – Two-Piece Slotted Weight, 300 g, ASTM Class 5, with Accredited Calibration Certificate
- 83040819 – Two-Piece Slotted Weight, 300 g, ASTM Class 5, No Certificate
- 83040833 – Two-Piece Slotted Weight, 3 kg, ASTM Class 5, with Accredited Calibration Certificate
Applications
- Hanging scale and crane scale checks
- Force gauge and load cell testing
- Engineering and physics classrooms
- Spring and material deflection testing
- Production scale verification
