Product Description
Some extractions and cultures mix best with a straight back-and-forth stroke rather than an orbit. The OHAUS Reciprocating Shaker delivers consistent, uniform reciprocating motion with a 19 mm stroke for applications that need accurate, repeatable results.

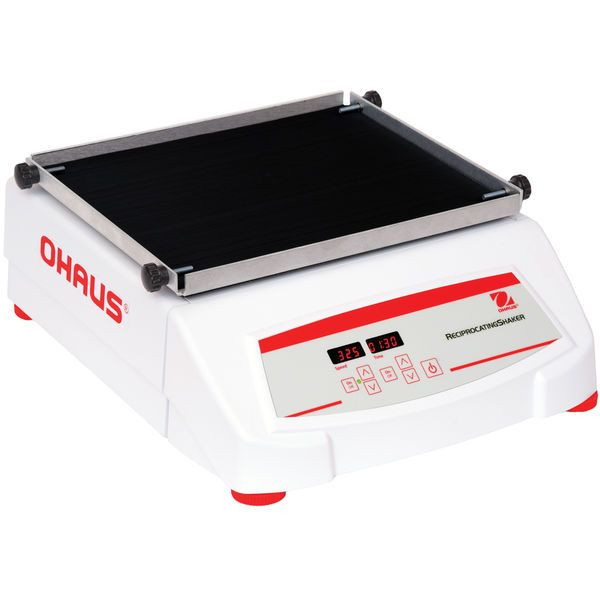

This listing is for OHAUS item number 30391828: Reciprocating Shaker SHRC0719DG, Digital, 19 mm Stroke, 6.8 kg Capacity, 20-300 rpm. The SHRC0719DG is built on cold rolled steel with an 11 x 13 inch aluminum tray and non-slip mat, and carries up to 6.8 kg. A maintenance-free brushless DC motor and permanently lubricated ball bearings support continuous duty, with 20 to 300 rpm, ±2 rpm accuracy and a timer up to 9,600 minutes. Independent LED displays show speed and time, and RS232 communication is included. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- Reciprocating Motion – back-and-forth 19 mm stroke
- Brushless DC Motor – maintenance-free with permanently lubricated bearings
- Digital Control – 20 to 300 rpm with ±2 rpm accuracy and speed calibration
- Long Timer – 1 second to 9,600 minutes
- RS232 Included – two-way communication for logging and control
Specifications
| Item Number | 30391828 |
| Brand | OHAUS |
| Description | Reciprocating Shaker SHRC0719DG, Digital, 19 mm Stroke, 6.8 kg Capacity, 20-300 rpm |
| Motion | Reciprocating, 19 mm |
| Capacity | 6.8 kg |
| Speed Range | 20 rpm – 300 rpm |
| Tray Size | 11 in x 13 in (27.9 cm x 33 cm) (LxW) |
| Control | Digital |
| Drive System | Brushless DC Motor;Single Eccentric |
| Calibration | Speed calibration |
| Communication | RS232 (Included) |
| Dimensions | 16.3 in x 5.9 in x 14 in (41.3 cm x 14.9 cm x 35.5 cm) (LxHxW) |
| Net Weight | 48.1 lb (21.8 kg) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 40 W |
| Safety Certification | TUV |
| Speed Accuracy | ±2 rpm, Above 100 rpm ±2% of set speed |
| Stroke | 0.75 (19) |
| Timer | 1 s - 9,600 min |
| Tray Construction | Aluminum |
| Working Environment | 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
Applications
- Chemical extractions
- Blood sample mixing
- Gel staining
- Cell cultures
- Solubility studies
