Product Description
Gels, blots and blood samples need gentle motion that mixes without foaming or splashing. OHAUS Rocking and Waving Shakers provide a controlled seesaw motion or a smooth three-dimensional wave, in digital and economical analog versions.

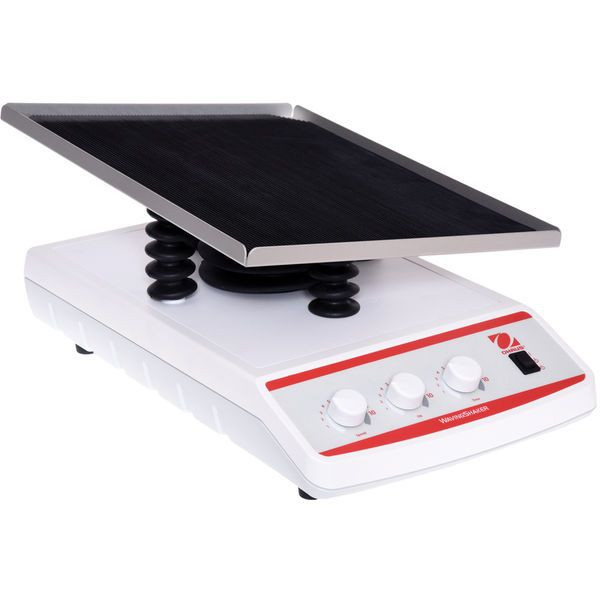

This listing is for OHAUS item number 30391973: Waving Shaker SHWV02AL, Analog, 0-16 Degree Tilt, 2.3 kg Capacity, 1-75 rpm. Units feature a cast aluminum housing, an aluminum 14 x 11 inch tray with non-slip rubber mat, a stepper motor drive and a spill-resistant design. Speed runs from 1 to 75 rpm with adjustable tilt, and overload protection triggers an alarm (audio and visual on digital models). Most models accept a stacking tray to double capacity, and all run on 120 V with a detachable 3-wire cord and TUV certification. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- Rocking or Waving Motion – seesaw rocking or low-foaming 3D wave
- Adjustable Tilt – variable tilt angle for gentle to vigorous action
- Stepper Motor Drive – smooth, controlled low-speed motion
- Overload Protection – alarm on overload, audio and visual on digital models
- Stacking Tray Option – double capacity on most models
Specifications
| Item Number | 30391973 |
| Brand | OHAUS |
| Description | Waving Shaker SHWV02AL, Analog, 0-16 Degree Tilt, 2.3 kg Capacity, 1-75 rpm |
| Motion | Waving, 0 – 16° |
| Capacity | 2.3 kg |
| Speed Range | 1 rpm – 75 rpm |
| Tray Size | 14 in x 11 in (35.6 cm x 27.9 cm) (LxW) |
| Control | Analog |
| Drive System | Stepper Motor |
| Dimensions | 16.8 in x 6.5 in x 11 in (42.5 cm x 16.5 cm x 27.9 cm) (LxHxW) |
| Net Weight | 14.6 lb (6.6 kg) |
| Power | 120V, 0.125A, 50/60Hz |
| Power Consumption | 15 W |
| Safety Certification | TUV |
| Tilt Angle | 0 – 16° |
| Timer | 1 s - 9,600 min |
| Tray Construction | Aluminum |
| Working Environment | 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing) |
| Housing | Cast Aluminum |
Related Models
- 30391959 – Rocking Shaker SHRK07AL1, Analog, 1 Tier, 0-15 Degree Tilt, 7.3 kg Capacity, 1-75 rpm
- 30391966 – Rocking Shaker SHRK07AL2, Analog, 2 Tier, Seesaw Rocking Motion, 120V
- 30391994 – Rocking Shaker SHRK04DG, Digital Control, Seesaw Rocking Motion, 120V
- 30391947 – Waving Shaker SHWV02DG, Digital Control, 3D Wave Motion, 120V
Applications
- Staining and destaining gels
- Blotting techniques
- Mixing blood samples
- Hybridizations
- DNA extractions
