Product Description
Demanding industrial lines need a base that stays accurate shift after shift. The Defender 5000 R Series base pairs rugged construction with a maximum non-approved resolution of 1:15,000d for applications that demand fine resolution.
This listing is for OHAUS item number 30419631: Defender 5000 R Series Bench Scale Base D12RQR, 25 lb x 0.001 lb, 12 x 12 in Platform. R Series bases feature a 304-grade stainless steel platform on a sand-gray powder-coated steel frame, a moisture-protected aluminum single-point load cell, non-slip adjustable rubber feet and an integrated level indicator. They provide 150% capacity overload protection, carry NTEP certification and Measurement Canada approval, and connect to a compatible OHAUS indicator. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- 1:15,000d Resolution – High non-approved resolution for precise industrial weighing
- 150% Overload Protection – Guards the load cell against shock and overloads
- Moisture-Protected Load Cell – Single-point aluminum cell with IP67 protection
- Leveling Aids – Built-in level indicator and non-slip adjustable rubber feet
- Trade Approved – NTEP certified and Measurement Canada approved
Specifications
| Item Number | 30419631 |
| Brand | OHAUS |
| Description | Defender 5000 R Series Bench Scale Base D12RQR, 25 lb x 0.001 lb, 12 x 12 in Platform |
| Maximum Capacity | 25 lb (12.5 kg) |
| Readability | 0.001 lb (0.5 g) |
| Platform Size | 12 in x 12 in (305 mm x 305 mm) |
| Legal for Trade | NTEP Certified;Measurement Canada Approved |
| Protection Rating | IP67 |
| Dimensions | 13.3 in x 3.9 in x 12 in (338 mm x 99 mm x 305 mm) (LxHxW) |
| Net Weight | 14.3 lb (6.5 kg) |
| Platform Construction | Stainless Steel |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
| Frame | Sand-gray powder-coated steel |
| Load Cell | Aluminum single-point |
| Overload Protection | 150% of capacity |
Related Models
- 30419641 – Defender 5000 R Series Bench Scale Base D125RQL, 250 lb x 0.01 lb, 18 x 18 in Platform
- 30419652 – Defender 5000 R Series Bench Scale Base D125RQV, 250 lb x 0.01 lb, 24 x 24 in Platform
- 30419659 – Defender 5000 R Series Bench Scale Base D125RTV, 250 lb x 0.01 lb, 31.5 x 23.6 in Platform
- 30419646 – Defender 5000 R Series Bench Scale Base D125RTX, 250 lb x 0.01 lb, 24 x 18 in Platform

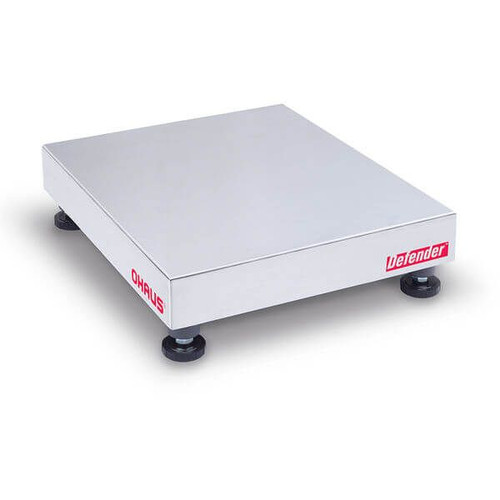

- 30419637 – Defender 5000 R Series Bench Scale Base D12RTR, 25 lb x 0.001 lb, 14 x 12 in Platform
- 30419653 – Defender 5000 R Series Bench Scale Base D250RQV, 500 lb x 0.02 lb, 24 x 24 in Platform
- 30419660 – Defender 5000 R Series Bench Scale Base D250RTV, 500 lb x 0.02 lb, 31.5 x 23.6 in Platform
- 30419647 – Defender 5000 R Series Bench Scale Base D250RTX, 500 lb x 0.02 lb, 24 x 18 in Platform
- 30419632 – Defender 5000 R Series Bench Scale Base D25RQR, 50 lb x 0.002 lb, 12 x 12 in Platform
- 30419638 – Defender 5000 R Series Bench Scale Base D25RTR, 50 lb x 0.002 lb, 14 x 12 in Platform
- 30419654 – Defender 5000 R Series Bench Scale Base D500RQV, 1,000 lb x 0.05 lb, 24 x 24 in Platform
- 30419661 – Defender 5000 R Series Bench Scale Base D500RTV, 1,000 lb x 0.05 lb, 31.5 x 23.6 in Platform
- 30419640 – Defender 5000 R Series Bench Scale Base D50RQL, 100 lb x 0.005 lb, 18 x 18 in Platform
- 30419633 – Defender 5000 R Series Bench Scale Base D50RQR, 100 lb x 0.005 lb, 12 x 12 in Platform
Applications
- Production weighing
- Packaging lines
- Shipping and receiving
- Inventory control
- Checkweighing
- Parts counting
