Product Description
Advanced features meet industrial toughness in the Defender 5000 D52 bench scale. It handles production, packaging, inventory and shipping tasks with configurable print output, GMP/GLP data, library and user management and a wide range of connectivity options.

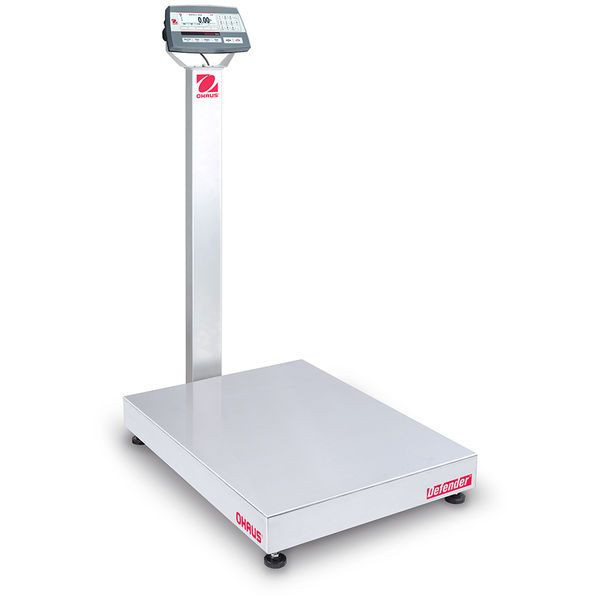

This listing is for OHAUS item number 30461647: Defender 5000 Bench Scale D52P500RTV3, 1,000 lb x 0.05 lb, 31.5 x 23.6 in Platform. Each scale uses an ABS plastic (D52P) or stainless steel (D52XW) indicator with a 256 x 80 pixel backlit dot-matrix LCD, mounted to a 304-grade stainless steel platform on a sand-gray powder-coated steel frame with an aluminum load cell and non-slip adjustable rubber feet. RS232 and a Micro SD slot are standard; second RS232/RS485/USB, Ethernet, WiFi/Bluetooth, discrete I/O and analog output are optional accessories. The scales are NTEP certified and Measurement Canada approved. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- Configurable Printouts – Fully customizable print output with GMP/GLP data and real-time clock
- Library and User Management – Store items and control user access for repeatable workflows
- Expandable Connectivity – RS232 and Micro SD standard, with Ethernet, WiFi/Bluetooth, USB and I/O options
- Dot-Matrix Display – 256 x 80 pixel backlit LCD shows prompts and data clearly
- Trade Approved – NTEP certified and Measurement Canada approved
Specifications
| Item Number | 30461647 |
| Brand | OHAUS |
| Description | Defender 5000 Bench Scale D52P500RTV3, 1,000 lb x 0.05 lb, 31.5 x 23.6 in Platform |
| Maximum Capacity | 1,000 lb (500 kg) |
| Readability | 0.05 lb (20 g) |
| Readability (Certified) | 0.2 lb (100 g) |
| Platform Size | 31.5 in x 23.6 in (800 mm x 600 mm) |
| Legal for Trade | NTEP Certified;Measurement Canada Approved |
| Power | Rechargeable Battery (Not Included);AC Power (Included) |
| Battery Life | 20 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory) |
| Dimensions | 37.9 in x 47.4 in x 23.6 in (963 mm x 1,203 mm x 600 mm) (LxHxW) |
| Display | Dot matrix LCD with white LED backlight |
| Net Weight | 103.6 lb (47 kg) |
| Outputs | 4 - 20mA;2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | Not Applicable |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
| Indicator | ABS plastic (D52P) or stainless steel (D52XW) |
Related Models
- 30461637 – Defender 5000 Bench Scale D52P125RQL2, 250 lb x 0.01 lb, 18 x 18 in Platform
- 30461655 – Defender 5000 Bench Scale D52P125RQL5, 250 lb x 0.01 lb, 18 x 18 in Platform
- 30461642 – Defender 5000 Bench Scale D52P125RQV3, 250 lb x 0.01 lb, 24 x 24 in Platform
- 30461660 – Defender 5000 Bench Scale D52P125RQV5, 250 lb x 0.01 lb, 24 x 24 in Platform
- 30461645 – Defender 5000 Bench Scale D52P125RTV3, 250 lb x 0.01 lb, 31.5 x 23.6 in Platform
- 30467607 – Defender 5000 Bench Scale D52P125RTV5, 250 lb x 0.01 lb, 31.5 x 23.6 in Platform
- 30461639 – Defender 5000 Bench Scale D52P125RTX2, 250 lb x 0.01 lb, 24 x 18 in Platform
- 30461657 – Defender 5000 Bench Scale D52P125RTX5, 250 lb x 0.01 lb, 24 x 18 in Platform
- 30461630 – Defender 5000 Bench Scale D52P12RQR1, 25 lb x 0.001 lb, 12 x 12 in Platform
- 30461648 – Defender 5000 Bench Scale D52P12RQR5, 25 lb x 0.001 lb, 12 x 12 in Platform
- 30461633 – Defender 5000 Bench Scale D52P12RTR1, 25 lb x 0.001 lb, 14 x 12 in Platform
- 30461651 – Defender 5000 Bench Scale D52P12RTR5, 25 lb x 0.001 lb, 14 x 12 in Platform
- 30461643 – Defender 5000 Bench Scale D52P250RQV3, 500 lb x 0.02 lb, 24 x 24 in Platform
- 30467606 – Defender 5000 Bench Scale D52P250RQV5, 500 lb x 0.02 lb, 24 x 24 in Platform
Applications
- Parts counting
- Percent weighing
- Checkweighing
- Dynamic weighing
- Packaging
- Shipping and inventory
