Product Description
Free up hands and process a full rack of samples at once with a vortexer built for high-throughput work. OHAUS Multi-Tube Vortex Mixers handle up to 4.5 kg on a 7.25 x 12.25 inch tray, making them a fit for clinical DNA and RNA testing, genotyping and suspension work.

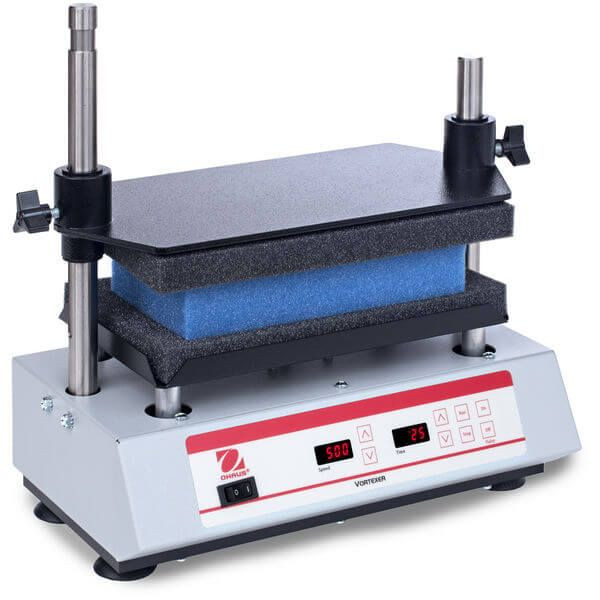

This listing is for OHAUS item number 30573836: Multi-Tube Vortex Mixer VXMTDGB, Digital Control with Timer, 500-2,500 rpm, 4.5 kg Capacity, 120V. A stainless steel foam rack for fifty 12 mm tubes is included, and interchangeable foam racks accommodate tubes from 10 to 29 mm in diameter. Strong suction cup feet keep the unit planted on the bench, and the 3.6 mm orbit runs continuously. Analog models cover 1,200 to 2,400 rpm with a 0 to 60 second timer, while digital models offer 500 to 2,500 rpm, LED speed and time displays and a timer up to 9,999 minutes; all run on 120 V and are TUV certified. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- High-Throughput Rack – included stainless steel foam rack holds fifty 12 mm tubes
- Interchangeable Foam Racks – accommodates tubes from 10 to 29 mm in diameter
- Suction Cup Feet – reduce motion and prevent sliding during operation
- Continuous Duty – 3.6 mm orbit for uniform mixing over long runs
- Analog or Digital Models – economical variable speed or exact digital speed with timer
Specifications
| Item Number | 30573836 |
| Brand | OHAUS |
| Description | Multi-Tube Vortex Mixer VXMTDGB, Digital Control with Timer, 500-2,500 rpm, 4.5 kg Capacity, 120V |
| Control | Digital |
| Duty Rating | Continuous |
| Orbit | 0.1 in (3.6 mm) |
| Speed Range | 500 rpm – 2500 rpm |
| Capacity | 4.5 kg |
| Timer | 1 s - 9,999 min |
| Dimensions | 9.5 in x 16 in x 15.1 in (241 mm x 406 mm x 384 mm) (LxHxW) |
| Net Weight | 41 lb (18.7 kg) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 100 W |
| Safety Certification | TUV |
| Tray Size | 7.25 in x 12.25 in (184 mm x 311 mm) (LxW) |
| Working Environment | 39 - 104°F, 20% to 80% RH, non-condensing (4 - 40°C, 20% to 80% RH, non-condensing) |
Related Models
- 30392164 – Multi-Tube Vortex Mixer VXMTAL, Analog Control, 1,200-2,400 rpm, 4.5 kg Capacity, 120V
- 30392171 – Multi-Tube Vortex Mixer VXMTDG, Digital Control with Timer, 500-2,500 rpm, 4.5 kg Capacity, 120V
- 30573831 – Multi-Tube Vortex Mixer VXMTALB, Analog Control, 1,200-2,400 rpm, 4.5 kg Capacity, 120V
Applications
- High-throughput DNA and RNA testing
- Genotyping
- Re-suspending samples
- Clinical lab sample prep
- Batch tube mixing
