Product Description
The Defender 6000 i-D61XW gives food, chemical and pharmaceutical producers a fully stainless washdown scale with the connectivity to feed production data straight into their systems. Filling, checkweighing and checkcounting run from a bright LED display with a 3-color dot matrix check light.

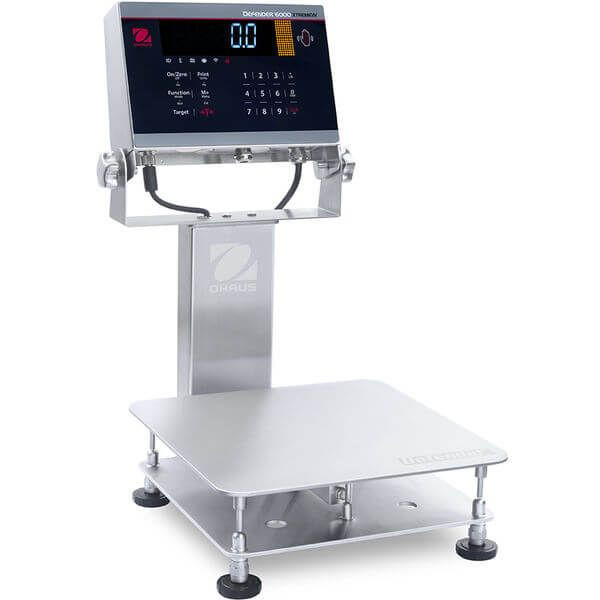

This listing is for OHAUS item number 30575564: Defender 6000 Washdown Bench Scale i-D61XWE12K1R6, 25 lb x 0.002 lb, 11.8 x 11.8 in Platform, with Column. A 316 stainless steel platform and frame rest on a hermetically sealed stainless steel load cell, topped by an IP68/IP69K 316 stainless steel indicator with a knife-resistant front panel. RS232 and USB host are standard, with second RS232/RS485/USB, Ethernet, WiFi/Bluetooth, discrete I/O and analog output available as accessories. The series is NTEP certified, Measurement Canada approved, NSF listed and built to support HACCP programs. Add it to your LIGHT LABS order and keep your lab running with genuine OHAUS equipment.
Key Features
- All-Stainless Washdown Design – 316 stainless platform, frame, indicator housing and bracket
- Hermetically Sealed Load Cell – stainless steel load cell built for IP69K cleaning
- Knife-Resistant Front Panel – durable keypad for meat and food processing
- Process Outputs – 4-20 mA, 0-10 V and 2 in/4 out digital I/O for automation
- Food Safety Compliance – NSF listed and supports HACCP programs
- Legal for Trade – NTEP certified and Measurement Canada approved
Specifications
| Item Number | 30575564 |
| Brand | OHAUS |
| Description | Defender 6000 Washdown Bench Scale i-D61XWE12K1R6, 25 lb x 0.002 lb, 11.8 x 11.8 in Platform, with Column |
| Maximum Capacity | 25 lb (12.5 kg) |
| Readability | 0.002 lb (1 g) |
| Readability (Certified) | 0.005 lb (5 g) |
| Platform Size | 11.8 in x 11.8 in (300 mm x 300 mm) |
| Legal for Trade | NTEP Certified;Measurement Canada Approved |
| Power | Rechargeable Battery (Not Included);AC Power (Included) |
| Battery Life | Not Applicable |
| Communication | Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232;USB Host;WiFi/Bluetooth (available as an accessory) |
| Dimensions | 16.8 in x 20.4 in x 11.8 in (427 mm x 518 mm x 300 mm) (LxHxW) |
| Display | 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| Net Weight | 25.8 lb (11.7 kg) |
| Outputs | 4-20 mA;0–10V;2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | IP69k;IP68 |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Gram;Kilogram;Pound;Ounce;Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
| Load Cell | Hermetically Sealed Stainless Steel |
Related Models
- 30575567 – Defender 6000 Washdown Bench Scale i-D61XWE150K1L7, 300 lb x 0.02 lb, 19.7 x 15.7 in Platform, with Column
- 30575565 – Defender 6000 Washdown Bench Scale i-D61XWE25K1R6, 50 lb x 0.005 lb, 11.8 x 11.8 in Platform, with Column
- 30575566 – Defender 6000 Washdown Bench Scale i-D61XWE50K1L7, 100 lb Capacity, 19.7 x 15.7 in Platform, with Column
- 30575563 – Defender 6000 Washdown Bench Scale i-D61XWE5K1S6, 10 lb Capacity, 9.8 x 9.8 in Platform, with Column
Applications
- Meat and poultry processing
- Filling and batching
- Pharmaceutical production
- Chemical processing
- Checkweighing and checkcounting
- Automated line integration
