Product Description
For lines that need washdown durability plus serious connectivity, the Defender 6000 Hybrid i-D61XW combines a stainless steel indicator with a full set of data and control options. A bar matrix check light and bright white LED digits keep operators on target during filling, checkweighing and checkcounting.

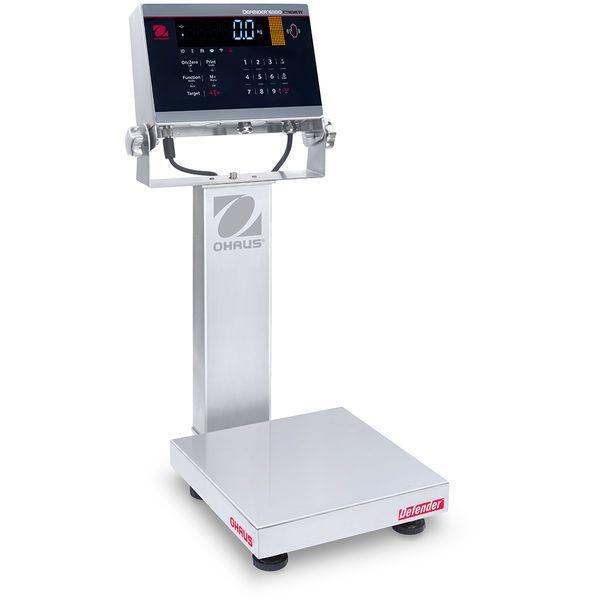

This listing is for OHAUS item number 30631707: Defender 6000 Hybrid Bench Scale i-D61XWE5WQS6, 10 lb Capacity, 10 x 10 in Platform, with Column. Each scale uses a 304 stainless steel platform and frame with an IP67 load cell, and an IP68/IP69K 316 stainless steel indicator housing and mounting bracket with a knife-resistant front panel. RS232 and USB host are built in, with second RS232/RS485/USB, Ethernet, WiFi/Bluetooth, discrete I/O and analog output available as accessories for GLP/GMP reporting. Models are NTEP certified and Measurement Canada approved and run from 100-240 VAC universal power. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- 316 Stainless Indicator – IP68/IP69K housing with knife-resistant front panel for harsh sanitation
- Check Light Display – 20 mm white LED digits plus 3-color dot matrix checkweigh indicator
- Built-In Connectivity – RS232 and USB host standard, with Ethernet, WiFi/Bluetooth and I/O options
- Analog and Digital Outputs – 4-20 mA, 0-10 V and 2 in/4 out digital I/O for process control
- Filling and Checkcounting Modes – weighing, counting with APW optimization, percent, checkweighing and filling
- Legal for Trade – NTEP certified and Measurement Canada approved
Specifications
| Item Number | 30631707 |
| Brand | OHAUS |
| Description | Defender 6000 Hybrid Bench Scale i-D61XWE5WQS6, 10 lb Capacity, 10 x 10 in Platform, with Column |
| Model | i-D61XWE5WQS6 |
| Maximum Capacity | 10 lb (5 kg) |
| Platform Size | 10 x 10 in |
| Platform Construction | 304 Stainless Steel |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Power | 100-240 VAC Universal, Hardwired |
| Indicator Housing | IP68/IP69K 316 Stainless Steel |
| Display | 7-Segment White LED, 20 mm, 3-Color Check Light |
| Standard Interface | RS232, USB Host |
Related Models
- 30631724 – Defender 6000 Hybrid Bench Scale i-D61XWE125WQL7, 250 lb x 0.01 lb, 18 x 18 in Platform, with Column
- 30631719 – Defender 6000 Hybrid Bench Scale i-D61XWE12WQR6, 25 lb x 0.001 lb, 12 x 12 in Platform, with Column
- 30631718 – Defender 6000 Hybrid Bench Scale i-D61XWE12WQS6, 25 lb x 0.001 lb, 10 x 10 in Platform, with Column
- 30631722 – Defender 6000 Hybrid Bench Scale i-D61XWE25WQL7, 50 lb x 0.002 lb, 18 x 18 in Platform, with Column
- 30631720 – Defender 6000 Hybrid Bench Scale i-D61XWE25WQR6, 50 lb x 0.002 lb, 12 x 12 in Platform, with Column
- 30631706 – Defender 6000 Hybrid Bench Scale i-D61XWE2WQS6, 5 lb x 0.0002 lb, 10 x 10 in Platform, with Column
- 30631723 – Defender 6000 Hybrid Bench Scale i-D61XWE50WQL7, 100 lb x 0.005 lb, 18 x 18 in Platform, with Column
Applications
- Food production and packaging
- Filling and dosing stations
- Checkweighing and checkcounting
- Process control integration
- Washdown environments
- Data logging for GMP records
