Product Description
When you already have an indicator or want to build a custom system, the Defender 3000 floor platform provides a solid, dependable base for heavy dry weighing. Its construction is engineered to minimize flexing under heavy loads for years of reliable performance.

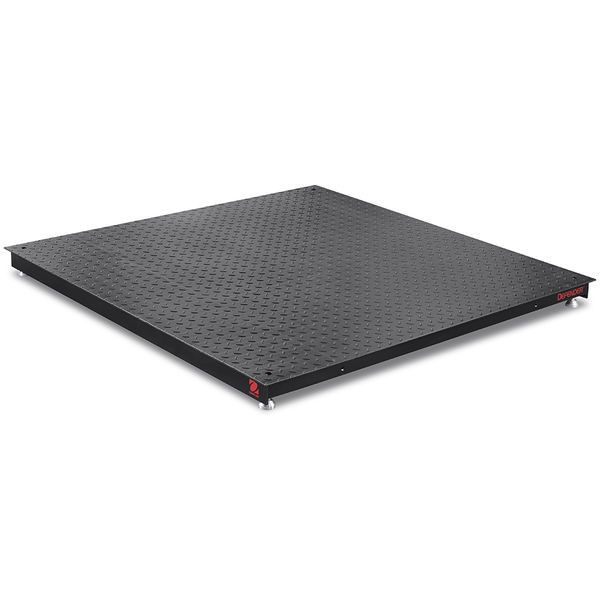

This listing is for OHAUS item number 30716491: Defender 3000 Floor Platform i-DF2500B1R, 2,500 lb x 0.5 lb, 3 x 3 ft, Painted Steel, Base Only. Each platform has a 5 mm fixed top plate in black treaded painted steel, alloy steel load cells, an IP65 stainless steel junction box with side access and two carbon steel eye bolts for handling. Four load cell feet use a self-swiveling ball-in-cup design, and painted steel ramps, mounting plates and floor stands are available as accessories. Platforms are NTEP certified and are supplied without an indicator. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- Low-Flex Construction – 5 mm treaded steel top plate built for heavy loads
- Self-Swiveling Feet – ball-in-cup load cell feet self-align on uneven floors
- IP65 Junction Box – stainless steel with side access for easy service
- NTEP Certified – legal-for-trade approval for commercial weighing
- Eye Bolts Included – two carbon steel eye bolts for lifting and positioning
- Accessory Ready – ramps, mounting plates and floor stands available
Specifications
| Item Number | 30716491 |
| Brand | OHAUS |
| Description | Defender 3000 Floor Platform i-DF2500B1R, 2,500 lb x 0.5 lb, 3 x 3 ft, Painted Steel, Base Only |
| Maximum Capacity | 2,500 lb (1,250 kg) |
| Readability | 0.5 lb (0.2 kg) |
| Readability (Certified) | 0.5 lb (0.5 kg) |
| Platform Size | 3 ft x 3 ft (914 mm x 914 mm) |
| Protection Rating | IP65 |
| Legal for Trade | NTEP Certified |
| Platform Construction | Painted Steel Diamond Plate |
| Dimensions | 3 ft x 3.5 in x 3 ft (914 mm x 90 mm x 914 mm) (LxHxW) |
| Net Weight | 221 lb (100 kg) |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
| Load Cells | Alloy Steel, 4 |
| Junction Box | IP65 Stainless Steel, Side Access |
| Indicator | Not Included |
Related Models
- 30716493 – Defender 3000 Floor Platform i-DF2500B1L, 2,500 lb x 0.5 lb, 4 x 4 ft, Painted Steel, Base Only
- 30716497 – Defender 3000 Floor Platform i-DF2500B1X, 2,500 lb x 0.5 lb, 5 x 5 ft, Painted Steel, Base Only
- 30716494 – Defender 3000 Floor Platform i-DF5000B1L, 5,000 lb x 1 lb, 4 x 4 ft, Painted Steel, Base Only
- 30716498 – Defender 3000 Floor Platform i-DF5000B1X, 5,000 lb x 1 lb, 5 x 5 ft, Painted Steel, Base Only
Applications
- Pallet and bulk weighing
- Shipping and receiving
- Warehouse inventory
- Custom scale systems
- Manufacturing materials handling
