Product Description
Wet floors and daily cleaning are no problem for the Defender 3000 washdown floor platform, a stainless steel base built for food, chemical and other wash-down areas. It minimizes flexing under heavy loads and delivers years of dependable performance as the foundation of your weighing system.

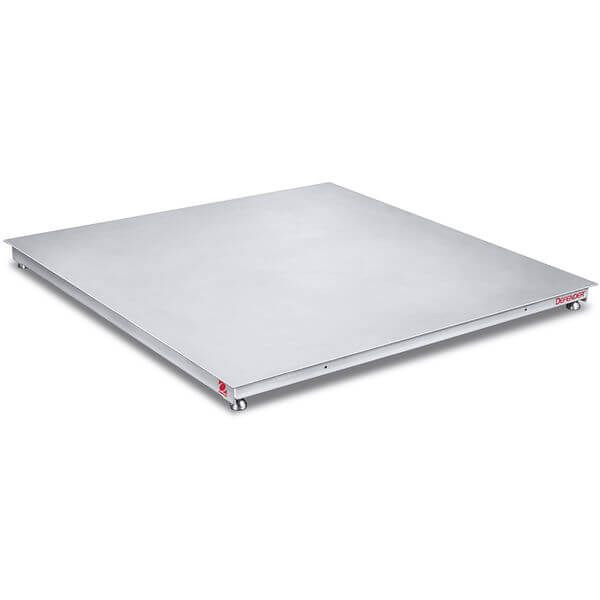

This listing is for OHAUS item number 30716499: Defender 3000 Washdown Floor Platform i-DF2500C1X, 2,500 lb x 0.5 lb, 5 x 5 ft, Stainless Steel, Base Only. Each platform has a 5 mm fixed 304-grade stainless steel top plate, IP68 load cells and an IP68 stainless steel junction box with side access. Four load cell feet use a self-swiveling ball-in-cup design, and stainless steel ramps, mounting plates and floor stands are available as accessories. Platforms are NTEP certified and are supplied without an indicator. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- 304 Stainless Steel Platform – corrosion-resistant 5 mm top plate for washdown areas
- IP68 Load Cells – sealed load cells for wet environments
- IP68 Junction Box – stainless steel with side access
- Self-Swiveling Feet – ball-in-cup design self-aligns on uneven floors
- NTEP Certified – legal-for-trade approval
- Accessory Ready – stainless steel ramps, mounting plates and floor stands available
Specifications
| Item Number | 30716499 |
| Brand | OHAUS |
| Description | Defender 3000 Washdown Floor Platform i-DF2500C1X, 2,500 lb x 0.5 lb, 5 x 5 ft, Stainless Steel, Base Only |
| Maximum Capacity | 2,500 lb (1,250 kg) |
| Readability | 0.5 lb (0.2 kg) |
| Readability (Certified) | 0.5 lb (0.5 kg) |
| Platform Size | 5 ft x 5 ft (1,524 mm x 1,524 mm) |
| Protection Rating | IP68 |
| Legal for Trade | NTEP Certified |
| Platform Construction | Stainless Steel |
| Dimensions | 5 ft x 3.5 in x 5 ft (1,524 mm x 90 mm x 1,524 mm) (LxHxW) |
| Net Weight | 388 lb (176 kg) |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
| Load Cells | IP68 |
| Junction Box | IP68 Stainless Steel, Side Access |
| Indicator | Not Included |
Related Models
- 30716495 – Defender 3000 Washdown Floor Platform i-DF2500C1L, 2,500 lb x 0.5 lb, 4 x 4 ft, Stainless Steel, Base Only
- 30716492 – Defender 3000 Washdown Floor Platform i-DF2500C1R, 2,500 lb x 0.5 lb, 3 x 3 ft, Stainless Steel, Base Only
- 30716496 – Defender 3000 Washdown Floor Platform i-DF5000C1L, 5,000 lb x 1 lb, 4 x 4 ft, Stainless Steel, Base Only
- 30716500 – Defender 3000 Washdown Floor Platform i-DF5000C1X, 5,000 lb x 1 lb, 5 x 5 ft, Stainless Steel, Base Only
Applications
- Food processing floor weighing
- Chemical plant weighing
- Washdown warehouse areas
- Custom washdown scale systems
- Pallet and drum weighing
