Product Description
Rolling a full drum or keg onto the scale is effortless with the Defender 2500, thanks to built-in front and back access ramps on a low-profile treaded platform. When the job moves, the base tips onto its side and rolls across the shop floor on two integrated wheels.

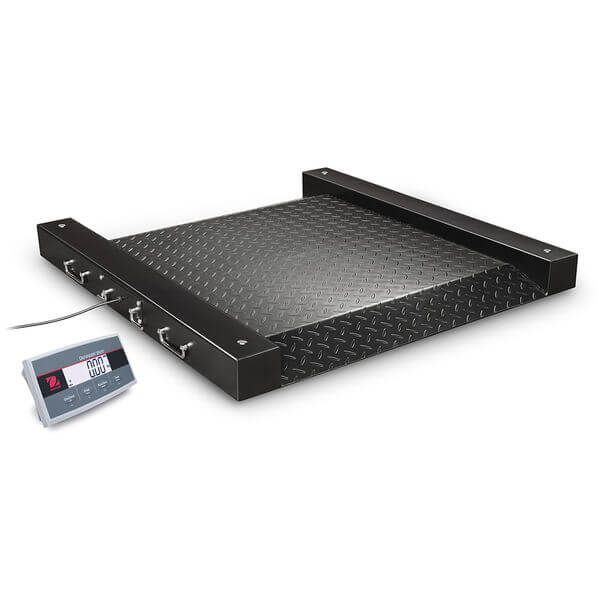

This listing is for OHAUS item number 30936457: Defender 2500 Drum Scale i-DFD25P2500E1S, 2,500 lb x 0.5 lb, 30 x 30 in Platform, with Access Ramps. The platform is black powder-coated carbon steel diamond plate supported by four LBZ4 IP67 OIML R60 alloy steel load cells with top height adjustment and an IP65 aluminum junction box. The i-DT25P indicator has a backlit 28 mm LCD, RS232 and USB type-C ports, and runs on a detachable AC adapter or 4 AA batteries, with folding stainless steel cleats to store the 20 ft cable. Weighing, parts counting, totalization, display hold and peak hold modes are included; these scales are not legal for trade. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- Built-In Access Ramps – front and back ramps for rolling drums, kegs and carts on and off
- Portable Base – stainless steel handles and two integrated wheels for moving the scale
- Four Load Cell Design – LBZ4 IP67 alloy steel load cells with top height adjustment
- i-DT25P Indicator – backlit LCD with 28 mm digits, RS232 and USB type-C
- Cable Storage – folding stainless steel cleats hold the 20 ft indicator cord
- Flexible Power – AC adapter with USB type-C cable or 4 AA batteries
Specifications
| Item Number | 30936457 |
| Brand | OHAUS |
| Description | Defender 2500 Drum Scale i-DFD25P2500E1S, 2,500 lb x 0.5 lb, 30 x 30 in Platform, with Access Ramps |
| Maximum Capacity | 2,500 lb (1,250 kg) |
| Readability | 0.5 lb (0.2 kg) |
| Platform Size | 30 in x 30 in (762 mm x 762 mm) |
| Protection Rating | Not Applicable |
| Legal for Trade | No |
| Dimensions | 40.4 in x 4 in x 37.9 in (1,024 mm x 100 mm x 962 mm) (LxHxW) |
| Platform Construction | Painted Steel Diamond Plate |
| Net Weight | 101 lb (46 kg) |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
| Load Cells | 4 x LBZ4 IP67 Alloy Steel |
| Indicator | i-DT25P, Backlit LCD, 28 mm Digits |
| Interface | RS232, USB Type-C |
| Power | AC Adapter (Included) or 4 AA Batteries (Not Included) |
Related Models
- 30936608 – Defender 2500 Drum Scale i-DFD25P1000E1R, 1,000 lb x 0.2 lb, 36 x 36 in Platform, with Access Ramps
- 30936456 – Defender 2500 Drum Scale i-DFD25P1000E1S, 1,000 lb x 0.2 lb, 30 x 30 in Platform, with Access Ramps
- 30936609 – Defender 2500 Drum Scale i-DFD25P2500E1R, 2,500 lb x 0.5 lb, 36 x 36 in Platform, with Access Ramps
Applications
- Drum and barrel weighing
- Keg weighing
- Chemical and lubricant inventory
- Shipping and receiving
- Waste and recycling weighing
- Totalizing batches
