Product Description
Labs and production floors that need stronger data integrity get it with the MB92. Its redesigned housing, carbon fiber IR heater and upgraded load cell deliver durable, high-performance moisture testing with password protection.

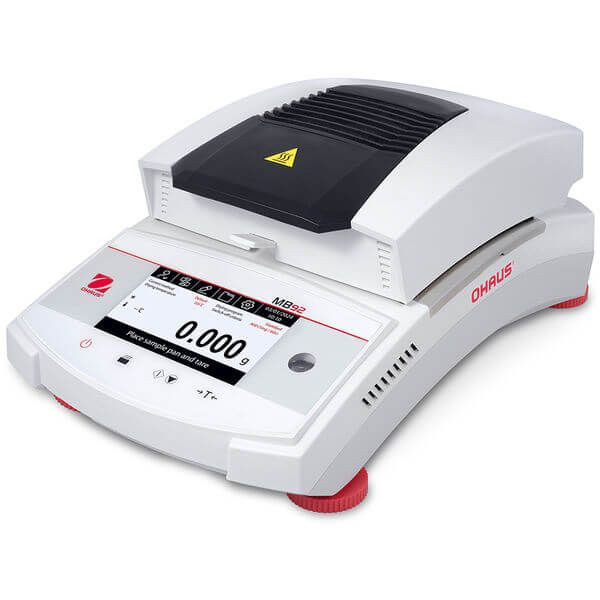

This listing is for OHAUS item number 30971930: MB92 Moisture Analyzer, 110 V, 90 g x 1 mg/0.01%, Carbon Fiber IR Heater. Construction includes a PBT housing, die-cast aluminum base, metal pan support and pan handler, and an in-use cover. The carbon fiber IR heater covers 40-200 °C, and a 4.3 in capacitive touchscreen shows a live drying curve and on-screen instructions. Four drying profiles, eight shut-off criteria and storage for 20 methods and 200 results are built in, with RS232, USB Device and USB Host connectivity. Order it from LIGHT LABS alongside the rest of your OHAUS balances, weights and lab equipment.
Key Features
- Carbon Fiber IR Heating – Fast, durable heating from 40 °C to 200 °C
- Capacitive Touchscreen – 4.3 in display with live drying curve
- Eight Shut-Off Criteria – Manual, timed and automatic end points
- Data Security – Password protection plus sample, batch and ID management
- Four Drying Profiles – Standard, fast, ramp and step
- Full Connectivity – RS232, USB Device and USB Host
Specifications
| Item Number | 30971930 |
| Brand | OHAUS |
| Description | MB92 Moisture Analyzer, 110 V, 90 g x 1 mg/0.01%, Carbon Fiber IR Heater |
| Maximum Capacity | 90 g |
| Readability Moisture Content | 1 mg/0.01% |
| Pan Size | 3.5 in (90 mm) |
| Heater Type | Carbon fiber |
| Communication | USB device;RS232;USB Host |
| Recommended Moisture Content MC% | 0.5 % - 100 % |
| Adjustment | Temperature Adjustment - Mechanical (100℃, 160℃);Weight Adjustment - External (50g) |
| Dimensions | 13.9 in x 5.4 in x 8.3 in (352 mm x 138 mm x 210 mm) (LxHxW) |
| Display | 4.3” capacitive touch screen |
| Display Results | RG%;Temperature;Drying Curve;DC%;Time;Method Name;Statistics;MC%;Weight |
| Heating Profiles | Ramp;Standard;Step;Fast |
| ID Management | Sample Name;Sample ID;Batch ID |
| In-Use Cover | Included |
| Moisture Range | 0.01 % – 100 % |
| Net Weight | 9.5 lb (4.3 kg) |
| Operating Range (Temp.) | 10 °C – 40 °C |
| Operation Instructions | Live Drying Curve;On-screen Instruction |
| Repeatability | 0.08% (3g sample);0.015% (10g sample) |
| Shut-Off Criteria | Timed;5 Auto;Manual;Custom - User Set Weight Loss/Time |
Applications
- Food and beverage QC
- Pharmaceutical moisture testing
- Plastics and resin drying
- Chemical solids content
- Production floor testing
