Product Description
Give every column of your plate its own reagent with a multi-channel reservoir that sits on the deck like any standard microplate. These reservoirs offer 8 or 12 separate channels in low (31.4 mm) or medium (44.5 mm) profiles, holding 15 to 32 mL per channel. They are made for high-throughput instruments and multichannel pipettes alike.

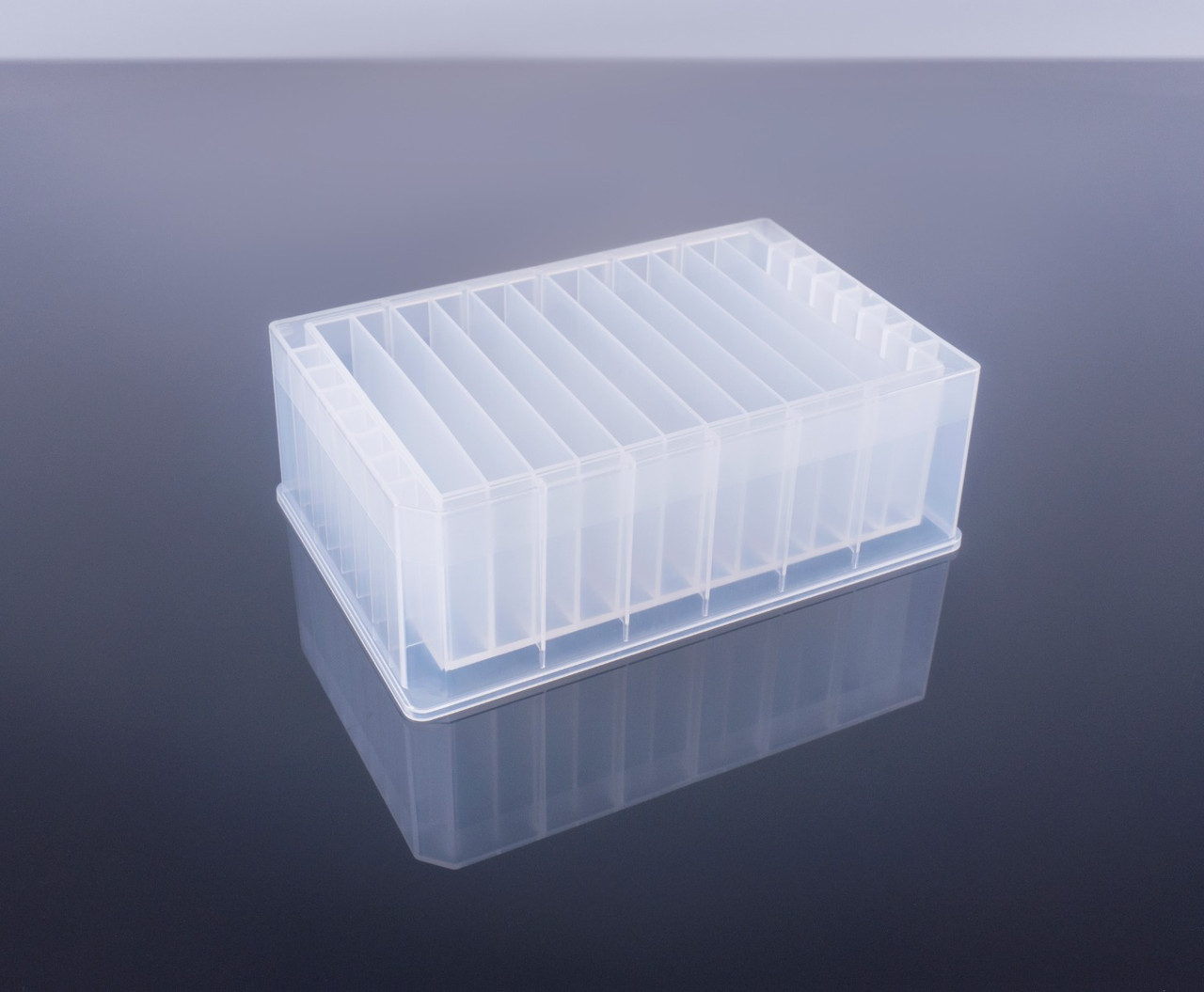

This listing is for NEST catalog number 360202: 12 Channel Reservoir Microplate, Medium Profile 44.5 mm Height, 22 mL per Channel, No Lid, Non-Sterile, Case of 50 (5 Packs x 10). Each reservoir is molded from USP Class VI virgin polypropylene in an ISO 7 cleanroom within a cGMP, ISO 13485 and ISO 9001 certified facility. Built-in grooves in each channel floor reduce dead volume and support consistent aspiration. The plates have a low leachable and heavy metal profile, tolerate -196 °C to 121 °C and are autoclavable. Lots are tested free of DNase, RNase, DNA and pyrogens. Choose sterile or non-sterile. Order it from LIGHT LABS alongside the rest of your NEST plastics and consumables.
Key Features
- SBS Footprint – 127.76 x 85.48 mm, ANSI/SLAS compliant for robotic decks and plate holders
- Separate Channels – 8 or 12 channels keep different reagents isolated
- Grooved Channel Floors – reduce reagent waste and support consistent aspiration
- Wide Temperature Range – -196 °C to 121 °C, autoclavable and -80 °C storage safe
- Low Extractables – virgin polypropylene with low leachables and heavy metals
- Two Profiles – low 31.4 mm or medium 44.5 mm height to match volume and deck clearance
Specifications
| Catalog Number | 360202 |
| Brand | NEST Scientific |
| Description | 12 Channel Reservoir Microplate, Medium Profile 44.5 mm Height, 22 mL per Channel, No Lid, Non-Sterile |
| Sold As | Case of 50 (5 Packs x 10) |
| Channels | 12 |
| Volume per Channel | 22 mL |
| Profile | Medium Profile |
| Height | 44.5 mm |
| Sterile | No |
| Units per Pack | 10 |
| Units per Case | 50 |
| Material | USP Class VI virgin polypropylene |
| Footprint | 127.76 x 85.48 mm (ANSI/SLAS 1-2004) |
| Lid | None |
| Temperature Range | -196 °C to 121 °C |
| Autoclavable | Yes |
Available Options
- 360101 – 8 Channel Reservoir Microplate, Low Profile 31.4 mm Height, 22 mL per Channel, No Lid, Non-Sterile, Case of 50 (5 Packs x 10)
- 360102 – 12 Channel Reservoir Microplate, Low Profile 31.4 mm Height, 15 mL per Channel, No Lid, Non-Sterile, Case of 50 (5 Packs x 10)
- 360201 – 8 Channel Reservoir Microplate, Medium Profile 44.5 mm Height, 32 mL per Channel, No Lid, Non-Sterile, Case of 50 (5 Packs x 10)
- 360161 – 8 Channel Reservoir Microplate, Low Profile 31.4 mm Height, 22 mL per Channel, No Lid, Sterile, Case of 50 (5 Packs x 10)
- 360162 – 12 Channel Reservoir Microplate, Low Profile 31.4 mm Height, 15 mL per Channel, No Lid, Sterile, Case of 50 (5 Packs x 10)
- 360261 – 8 Channel Reservoir Microplate, Medium Profile 44.5 mm Height, 32 mL per Channel, No Lid, Sterile, Case of 50 (5 Packs x 10)
- 360262 – 12 Channel Reservoir Microplate, Medium Profile 44.5 mm Height, 22 mL per Channel, No Lid, Sterile, Case of 50 (5 Packs x 10)
Applications
- Automated liquid handling
- Multiplex reagent dispensing by column
- NGS library preparation
- ELISA and cell-based assay automation
- Compound and buffer distribution
