Product Description
Field technicians and weights and measures inspectors get a complete, organized set of test masses in one protective case, ready to verify commercial scales on site. These OHAUS sets cover metric, avoirdupois pound, ounce and grain ranges so you can match the units printed on the device under test.

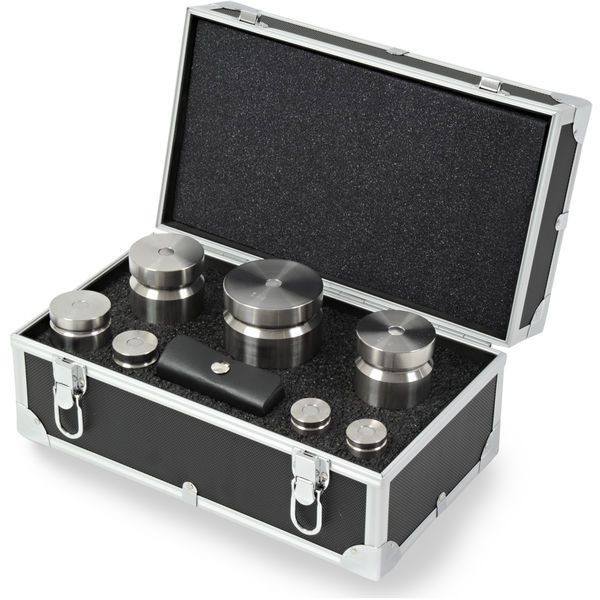

This listing is for OHAUS item number 83040369: ASTM Class 5 Test Weight Set, 5000 g to 1 mg, 28 Pieces, with Accredited Calibration Certificate. Weights 1 g and larger, 0.01 lb and larger and all ounce weights are cylindrical stainless steel, while the smallest fractional pieces are flat aluminum leaf or dish weights shaped for easy handling. Sets are built to ASTM Class 5 or NIST Class F tolerances, which are suited to testing Class III, IIIL and IIII scales, and are offered with an accredited certificate or without a certificate depending on the item. LIGHT LABS ships genuine OHAUS products and can help you match accessories and parts to your instrument.
Key Features
- Complete Ranges – Metric, pound, ounce and grain sets covering the test points used for commercial scales
- Stainless Steel Construction – Cylindrical 303 stainless steel weights resist corrosion and wear in field use
- Easy-Handling Small Weights – Flat aluminum fractional weights with a turned-up edge for pickup with tweezers
- Protective Case – Each set ships in a fitted case that keeps pieces organized and protected
- Certificate Options – Choose an accredited calibration certificate or a no-certificate version
Specifications
| Item Number | 83040369 |
| Brand | OHAUS |
| Description | ASTM Class 5 Test Weight Set, 5000 g to 1 mg, 28 Pieces, with Accredited Calibration Certificate |
| Weight Set Range | 5000 g - 1 mg |
| Set Capacity | 11.11 kg |
| Set Total Pieces | 28 |
| Protective Case | Included |
| Construction | 200 g and above are two-piece; 100 g and below are one-piece |
| Density at 20°C | 100 mg and below are 2.70 g/cm3;200 mg and above are 7.85 g/cm3 |
| Dimensions in Case | 6 in x 7.25 in x 13.25 in (15.24 cm x 18.415 cm x 33.655 cm) (LxHxW) |
| Set Contents | (2) 2 g;(2) 200 g;(2) 20 mg;500 mg;10 g;(2) 20 g;100 g;100 mg;10 mg;(2) 200 mg;1 g;(2) 2000 g;50 g;5 g;1 kg;5 mg;500 g;(2) 2 mg;50 mg;1 mg;5 kg |
| Weight Material | ≥200 mg are 303 Stainless Steel;≤100 mg are Aluminum |
| Wgt Origin (USA) | USA |
| Weight Shape | Cylindrical (stainless steel); flat (small aluminum weights) |
Related Models
- 30457865 – NIST Class F ECON Weight Set, 200 to 0.5 Grain, Stainless Steel and Aluminum, No Certificate
- 30457864 – NIST Class F ECON Weight Set, 50 to 0.5 Grain, Stainless Steel and Aluminum, No Certificate
- 83040373 – ASTM Class 5 Test Weight Set, (6) 5 lb, 30 lb Total, Stainless Steel, with Accredited Calibration Certificate
- 83040372 – ASTM Class 5 Test Weight Set, (6) 5 lb, 30 lb Total, Stainless Steel, No Certificate
- 83040357 – ASTM Class 5 Test Weight Set, 10 lb to 0.001 lb, with Accredited Calibration Certificate
- 83040363 – ASTM Class 5 Test Weight Set, 2000 g to 1 g, 14 Pieces, with Accredited Calibration Certificate
- 83040362 – ASTM Class 5 Test Weight Set, 2000 g to 1 g, 14 Pieces, No Certificate
- 83040361 – ASTM Class 5 Test Weight Set, 2000 g to 1 mg, 26 Pieces, with Accredited Calibration Certificate
- 83040360 – ASTM Class 5 Test Weight Set, 2000 g to 1 mg, 26 Pieces, No Certificate
- 83040367 – ASTM Class 5 Test Weight Set, 5 lb to 0.001 lb, with Accredited Calibration Certificate
- 83040371 – ASTM Class 5 Test Weight Set, 5 lb to 1/32 oz, 14 Pieces, with Accredited Calibration Certificate
- 83040364 – ASTM Class 5 Test Weight Set, 5 lb to 1/32 oz, No Certificate
- 30390364 – NIST Class F Test Weight Set, 5 lb to 1 oz, No Certificate
- 83040358 – ASTM Class 5 Test Weight Set, 0.2 lb to 0.001 lb, 11 Pieces, No Certificate
Applications
- Weights and measures inspections
- Retail and commercial scale testing
- Scale service and installation checks
- Routine accuracy verification of Class III and IIII scales
- Postal and shipping scale testing
