Product Description
Pick the format that fits your test rig: heavy cast iron slotted weights for big loads or stainless steel interlocking weights and hangers for neat, secure stacks. Every piece in this OHAUS group is a two-piece design built to combine with others into a known total load.

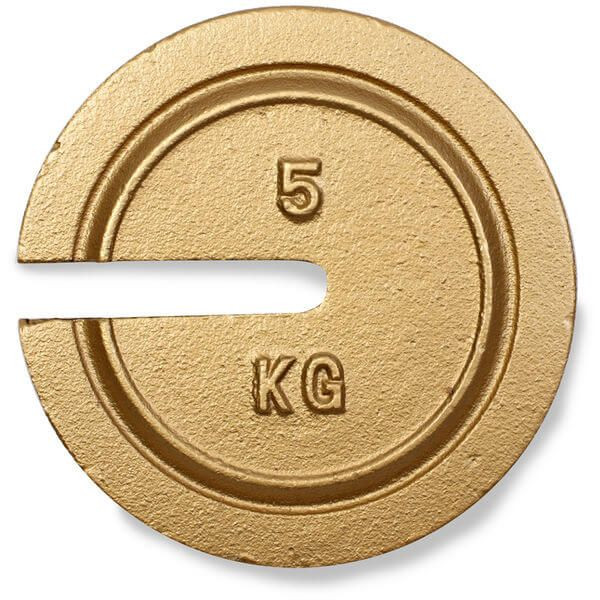

This listing is for OHAUS item number 83040475: Cast Iron Slotted Weight, 5 kg, ASTM Class 6, Two-Piece, No Certificate. Cast iron slotted weights run from 2 kg to 50 lb, while stainless steel interlocking weights and interlocking hangers cover 0.2 lb to 10 lb and 1 kg. Tolerance options include ASTM Class 5, 6 and 7 and NIST Class F, with accredited, non-accredited or no calibration certificate as shown in each product name. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- Two Stacking Styles – cast iron slotted weights and stainless steel interlocking weights
- Interlocking Hangers – 9.25 in and 20.25 in stainless steel hangers form the base of a stack
- Heavy-Load Values – cast iron pieces up to 50 lb for high-capacity testing
- Multiple Tolerance Classes – ASTM Class 5, 6, 7 or NIST Class F
- Certificate Options – accredited, non-accredited or no calibration certificate
Specifications
| Item Number | 83040475 |
| Brand | OHAUS |
| Description | Cast Iron Slotted Weight, 5 kg, ASTM Class 6, Two-Piece, No Certificate |
| Weight Value | 5 kg |
| Tolerance Class | ASTM Class 6 |
| Material | Cast Iron |
| Design | Slotted |
| Construction | Two-Piece |
| Certificate | None (no certificate) |
Related Models
- 30391621 – Cast Iron Slotted Weight, 2 kg, NIST Class F, Two-Piece, No Certificate
- 30391650 – Cast Iron Slotted Weight, 2 kg, NIST Class F, Two-Piece, with Non-Accredited Calibration Certificate
- 83040525 – Cast Iron Slotted Weight, 2 kg, ASTM Class 7, Two-Piece, with Accredited Calibration Certificate
- 83040524 – Cast Iron Slotted Weight, 2 kg, ASTM Class 7, Two-Piece, No Certificate
- 83040331 – Cast Iron Slotted Weight, 50 lb, ASTM Class 5, Two-Piece, with Accredited Calibration Certificate
- 83040330 – Cast Iron Slotted Weight, 50 lb, ASTM Class 5, Two-Piece, No Certificate
- 83040456 – Cast Iron Slotted Weight, 50 lb, ASTM Class 6, Two-Piece, with Accredited Calibration Certificate
- 30391692 – Cast Iron Slotted Weight, 50 lb, NIST Class F, Two-Piece, with Accredited Calibration Certificate
- 83040455 – Cast Iron Slotted Weight, 50 lb, ASTM Class 6, Two-Piece, No Certificate
- 30391663 – Cast Iron Slotted Weight, 50 lb, NIST Class F, Two-Piece, with Non-Accredited Calibration Certificate
- 83040351 – Cast Iron Slotted Weight, 5 kg, ASTM Class 5, Two-Piece, with Accredited Calibration Certificate
- 83040350 – Cast Iron Slotted Weight, 5 kg, ASTM Class 5, Two-Piece, No Certificate
- 83040476 – Cast Iron Slotted Weight, 5 kg, ASTM Class 6, Two-Piece, with Accredited Calibration Certificate
- 30391680 – Cast Iron Slotted Weight, 5 kg, NIST Class F, Two-Piece, with Accredited Calibration Certificate
Applications
- Load testing of hanging and crane scales
- Bench and floor scale verification
- Force and tension testing
- Building stable stacked loads for fixtures
- Physics and engineering labs
