Product Description
Build up exactly the load you need by stacking individual weights instead of hunting for one large mass. These OHAUS two-piece interlocking and slotted weights, together with matching weight hangers, give test benches, classrooms and force-measurement rigs a flexible way to apply known loads in steps.

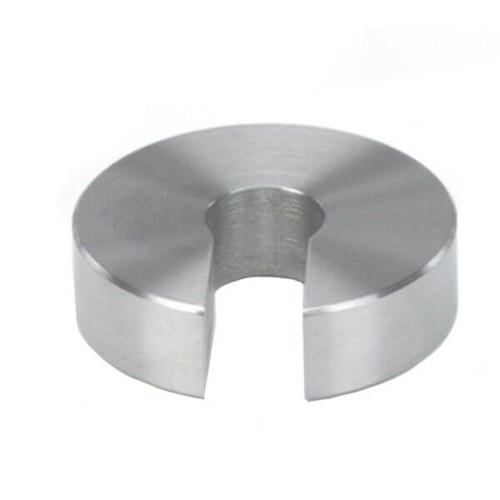

This listing is for OHAUS item number 83040817: Two-Piece Slotted Weight, 1/2 kg, ASTM Class 5, No Certificate. Each weight is made of stainless steel in a two-piece construction and adjusted to ASTM Class 5 or Class 6 tolerances, with US-made origin. Interlocking designs nest securely on one another, slotted designs slide onto a hanger stem, and the hangers are calibrated so their own mass counts as part of the total load. Buy each value with an accredited calibration certificate or without a certificate. LIGHT LABS supplies the OHAUS line with knowledgeable support from our Englewood, Colorado team.
Key Features
- Stackable Design – Interlocking and slotted weights nest or slide onto a hanger to build up a combined load
- Calibrated Hangers – Hanger mass is adjusted so it counts as part of the overall weight under test
- Stainless Steel Construction – Corrosion-resistant stainless steel with a density of 7.85 g/cm3
- ASTM Tolerances – Adjusted to ASTM Class 5 or Class 6 tolerances depending on the item
- Certificate Options – Available with an accredited calibration certificate or without a certificate
Specifications
| Item Number | 83040817 |
| Brand | OHAUS |
| Description | Two-Piece Slotted Weight, 1/2 kg, ASTM Class 5, No Certificate |
| ASTM Class | 5 |
| Weight Value | 0.5 kg |
| Weight Material | Stainless Steel |
| Protective Case | Available as an Accessory |
| Construction | Two-piece |
| Density at 20°C | 7.85 g/cm3 |
| Design | Flat |
| Dimensions | 1.46 in x 2 in (3.708 cm x 5.08 cm) (HxØ) |
| Slot width | 0.5 in |
| Weight Tolerance | 30 mg |
| Wgt Origin (USA) | USA |
Related Models
- 83040912 – Two-Piece Interlocking Weight Hanger, 1 lb, 9.25 in, ASTM Class 5, with Accredited Calibration Certificate
- 83040896 – Two-Piece Interlocking Weight Hanger, 1 lb, 9.25 in, ASTM Class 5, No Certificate
- 83040785 – Two-Piece Interlocking Slotted Weight, 1 lb, ASTM Class 5, with Accredited Calibration Certificate
- 83040753 – Two-Piece Interlocking Slotted Weight, 1 lb, ASTM Class 5, No Certificate
- 83040780 – Two-Piece Interlocking Slotted Weight, 20 lb, ASTM Class 5, with Accredited Calibration Certificate
- 83040748 – Two-Piece Interlocking Slotted Weight, 20 lb, ASTM Class 5, No Certificate
- 83040779 – Two-Piece Interlocking Slotted Weight, 25 lb, ASTM Class 5, with Accredited Calibration Certificate
- 83040747 – Two-Piece Interlocking Slotted Weight, 25 lb, ASTM Class 5, No Certificate
- 83040918 – Two-Piece Interlocking Weight Hanger, 2 kg, 36 in, ASTM Class 5, with Accredited Calibration Certificate
- 83040902 – Two-Piece Interlocking Weight Hanger, 2 kg, 36 in, ASTM Class 5, No Certificate
- 83040909 – Two-Piece Interlocking Weight Hanger, 2 lb, 20.25 in, ASTM Class 5, with Accredited Calibration Certificate
- 83040893 – Two-Piece Interlocking Weight Hanger, 2 lb, 20.25 in, ASTM Class 5, No Certificate
- 83040910 – Two-Piece Interlocking Weight Hanger, 2 lb, 9.25 in, ASTM Class 5, with Accredited Calibration Certificate
- 83040894 – Two-Piece Interlocking Weight Hanger, 2 lb, 9.25 in, ASTM Class 5, No Certificate
Applications
- Force measurement and load testing
- Physics and engineering teaching labs
- Spring scale and hanging scale checks
- Tensile and deflection demonstrations
- Routine scale verification
