Product Description
Tall 3.75" boxes need tall compartments, and these vertical racks give each one a 100 mm high slot. Choose 4, 5, 6 or 7 boxes high to match the depth of a chest freezer or liquid nitrogen tank.

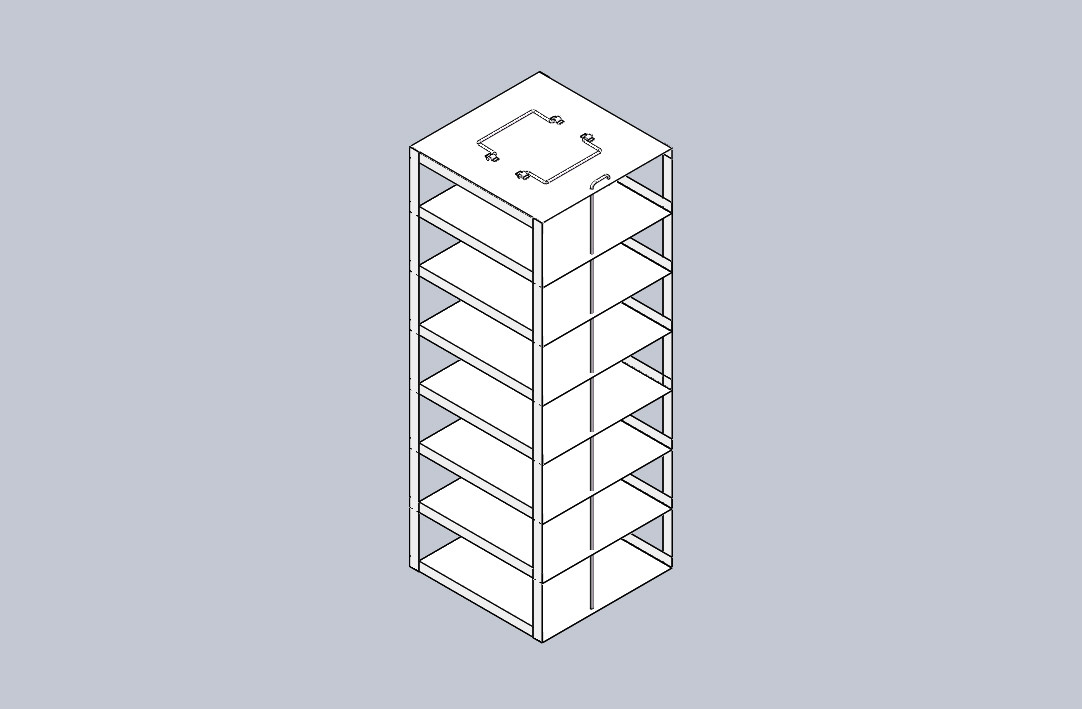

This listing is for Crystal catalog number CF-7-375, the Vertical Freezer Rack for 3.75" Boxes. Each rack is built from pharmaceutical-grade stainless steel, double welded, with smoothed edges, in a 5 5/8 x 5 1/2 in footprint. The rack lowers straight into the freezer or tank, and a security lock device is ordered separately. Add it to your LIGHT LABS order to organize freezer space and speed up sample retrieval.
Key Features
- Pharmaceutical-Grade Stainless Steel – corrosion-resistant steel holds up to repeated cycles at ultra-low temperatures and in liquid nitrogen vapor
- Double-Welded Construction – welded joints and smoothed edges keep the rack rigid and safe to handle with gloved hands
- Tall 3.75" Compartments – each compartment is 3 15/16 in (100 mm) high for standard 3.75" boxes
- Lock-Ready Design – accepts a Crystal security lock device (ordered separately) to keep boxes from sliding out
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | CF-7-375 |
| Brand | Crystal Technology & Industries |
| Box Type | Standard 3.75" high boxes |
| Box Capacity | 7 boxes |
| Configuration | 7 high, vertical |
| Overall Dimensions (H x W x D) | 28 1/4 x 5 5/8 x 5 1/2 in (717 x 143 x 140 mm); height corrected from 28 in to match 717 mm |
| Compartment Dimensions (H x W x D) | 3 15/16 x 5 1/4 x 5 3/8 in (100 x 134 x 136 mm) |
| Lock | Ordered separately |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Rack Style | Vertical, for chest freezers & LN2 tanks |
| Security Lock | Lock device ordered separately |
| Warranty | Lifetime warranty on rack products |
Other Configurations
Applications
- Chest freezer sample storage
- Liquid nitrogen tank inventory
- Tall cryovial and tube boxes
- Biobank box organization
