Product Description
Built around the 100-cell hinged lid storage box, these racks hold each box snugly in a dedicated slot. Choose 8 to 13 boxes high to fill a chest freezer or LN2 tank to its usable depth.

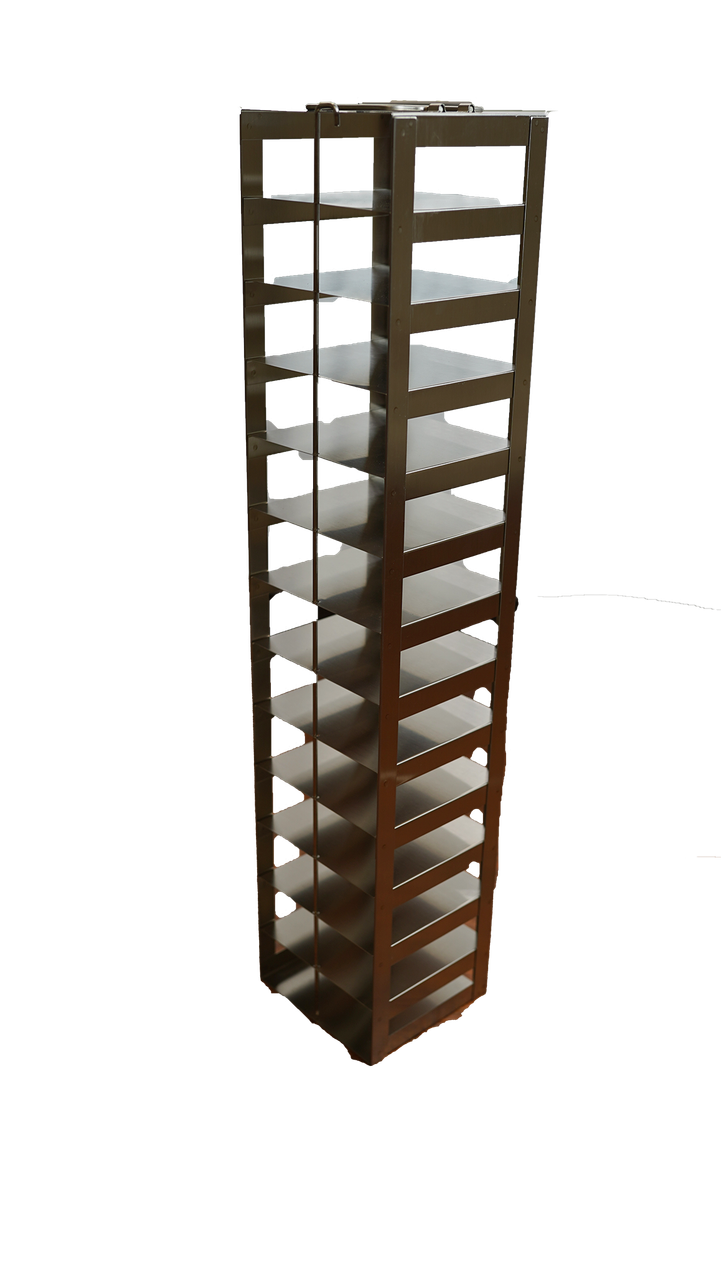

This listing is for Crystal catalog number CFHT-13, the Vertical Freezer Rack for 100-Cell Hinged Lid Boxes. Each rack is pharmaceutical-grade stainless steel, double welded, with smoothed edges, with 2 5/16 in high compartments in a 6 1/4 x 5 7/8 in footprint. A security lock device is ordered separately. Order it from LIGHT LABS and pair it with the boxes and lock devices that fit your freezer.
Key Features
- Pharmaceutical-Grade Stainless Steel – corrosion-resistant steel holds up to repeated cycles at ultra-low temperatures and in liquid nitrogen vapor
- Double-Welded Construction – welded joints and smoothed edges keep the rack rigid and safe to handle with gloved hands
- Hinged-Box Compartments – 2 5/16 x 6 1/8 x 5 9/16 in (58 x 155 x 141 mm) openings for 100-cell hinged lid boxes
- Lock-Ready Design – accepts a Crystal security lock device (ordered separately) to keep boxes from sliding out
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | CFHT-13 |
| Brand | Crystal Technology & Industries |
| Box Type | 100-cell hinged lid storage boxes |
| Box Capacity | 13 boxes |
| Configuration | 13 high, vertical |
| Overall Dimensions (H x W x D) | 30 1/4 x 6 1/4 x 5 7/8 in (768 x 159 x 149 mm) |
| Compartment Dimensions (H x W x D) | 2 5/16 x 6 1/8 x 5 9/16 in (58 x 155 x 141 mm) |
| Lock | Ordered separately |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Security Lock | Lock device ordered separately |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- CFHT-10 – Holds 10 Boxes
- CFHT-11 – Holds 11 Boxes
- CFHT-12 – Holds 12 Boxes
- CFHT-8 – Holds 8 Boxes
- CFHT-9 – Holds 9 Boxes
Applications
- Hinged-lid cryovial box storage
- Chest freezer sample storage
- Liquid nitrogen tank inventory
- Microtube sample collections
