Product Description
Keep frozen plate libraries flat, stacked and easy to find. Each compartment holds 5 lidded or 6 unlidded 96- or 384-well microtiter plates, so up to 54 plates share one compact vertical rack.

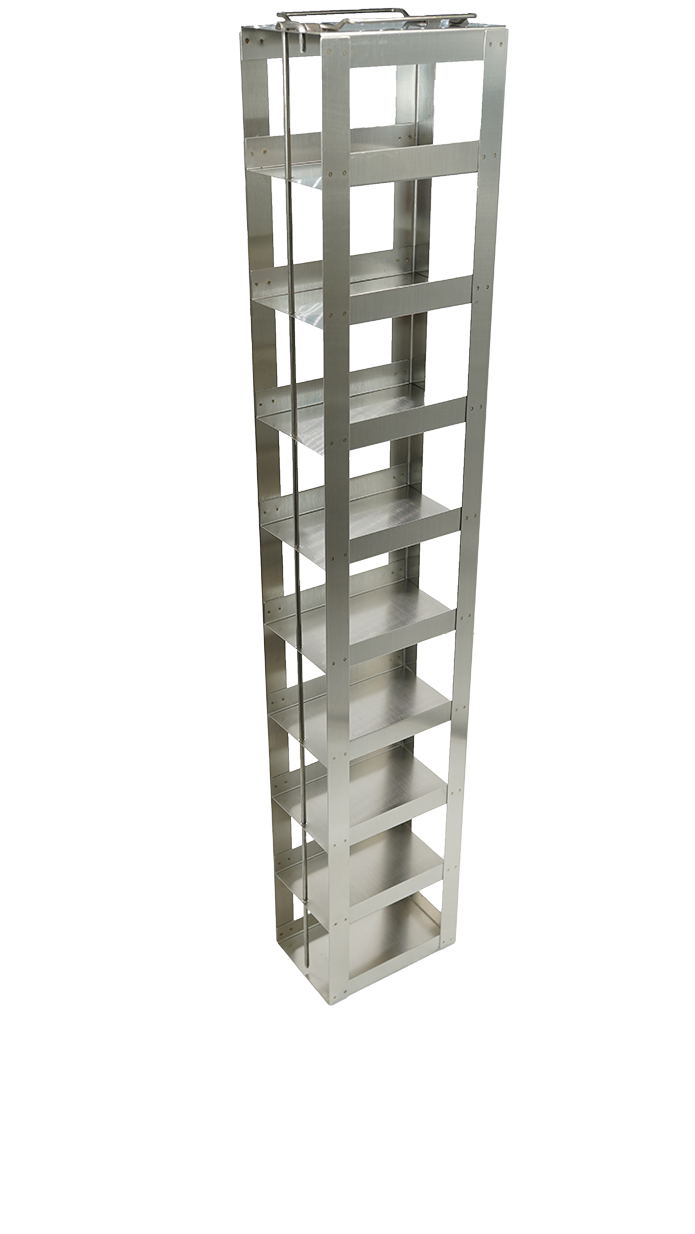

This listing is for Crystal catalog number CFMP-9, the Vertical Freezer Rack for 96/384-Well Microplates. These Crystal vertical racks are made of stainless steel with a 3 5/8" x 5 1/2" footprint sized for chest freezers and liquid nitrogen tanks. Versions with 5 to 9 compartments match different storage depths, and a security lock device can be ordered separately to keep plates in place. LIGHT LABS can help you match Crystal racks to your freezer shelves and storage boxes.
Key Features
- Built for Microplates – 3 5/16" H compartments hold 5 plates with lids or 6 without
- Up to 54 Plates per Rack – five heights from 25/30 to 45/54 plates (with/without lids)
- Pharmaceutical-Grade Stainless Steel – double welded construction with smoothed edges stands up to repeated freezing, thawing and handling
- Optional Security Lock – a lock device, ordered separately, keeps plates secured in the rack
- Lifetime Warranty – Crystal backs every rack product with a lifetime warranty
Specifications
| Catalog Number | CFMP-9 |
| Brand | Crystal Technology & Industries |
| Fits | 96-well and 384-well microtiter plates |
| Plate Capacity | 45 with lids / 54 without lids |
| Configuration | 9 compartments high (vertical stack) |
| Overall Dimensions (H x W x D) | 30 1/16 x 5 1/2 x 3 5/8 in (763 x 140 x 92 mm) |
| Compartment Dimensions (H x D x W) | 3 5/16 x 3 7/16 x 5 3/16 in (83.5 x 88 x 131 mm) |
| Material | Stainless steel |
| Lock Device | Ordered separately |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- CFMP-5 – 5 Compartments, 25-30 Plates
- CFMP-6 – 6 Compartments, 30-36 Plates
- CFMP-7 – 7 Compartments, 35-42 Plates
- CFMP-8 – 8 Compartments, 40-48 Plates
Applications
- Compound and screening library storage
- Frozen PCR and qPCR plate archives
- Cell-based assay plate storage
- Liquid nitrogen and chest freezer plate inventory
