Product Description
Large-volume tube racks need room to stand, and these vertical racks give it to them. Compartments 4 5/16" high accept SBS-footprint racks of 12 mL and 5 mL screw-top tubes, typically 4" to 4 1/4" tall, without crushing caps or tilting racks.
This listing is for Crystal catalog number CFMR-6, the Vertical Freezer Rack for 12 mL & 5 mL SBS Tube Racks (4"-4 1/4" H). Crystal builds each rack from stainless steel in a slim 3 5/8" x 5 1/2" footprint that suits chest freezers and liquid nitrogen tanks. Four sizes, holding 4 to 7 tube racks, let you use the full depth of your storage unit. Order it from LIGHT LABS and pair it with the boxes and lock devices that fit your freezer.
Key Features
- Extra-Tall Compartments – 4 5/16" H x 3 7/16" D x 5 3/16" W openings fit tube racks 4"–4 1/4" tall
- Large-Volume Tube Formats – suited to SBS racks of 12 mL latch tubes and 5.0 mL 2D barcoded screw-cap tubes
- Pharmaceutical-Grade Stainless Steel – double welded construction with smoothed edges stands up to repeated freezing, thawing and handling

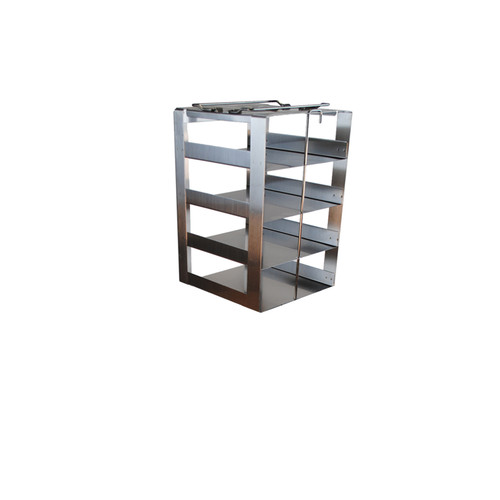

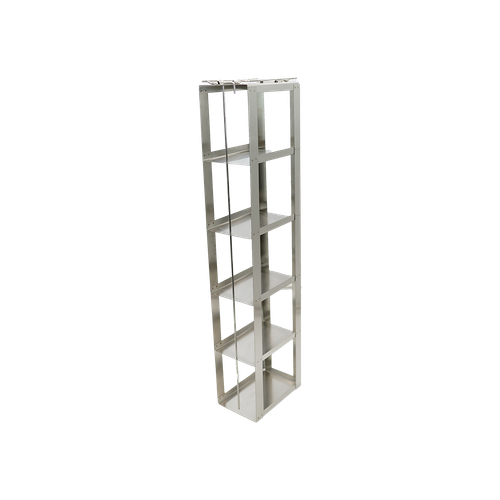

- Four Capacities – 4, 5, 6 or 7 compartments to match freezer or tank depth
- Lifetime Warranty – Crystal backs every rack product with a lifetime warranty
Specifications
| Catalog Number | CFMR-6 |
| Brand | Crystal Technology & Industries |
| Fits | SBS-footprint tube racks 4"-4 1/4" (101.5-107.5 mm) tall, e.g. Matrix-style 12 mL screw-top latch racks and Abgene-style 5.0 mL 2D barcoded screw-cap racks (web text lists 4"-4 1/2"; inches corrected to match mm) |
| Box Capacity | 6 tube racks |
| Configuration | 6 compartments high (vertical stack) |
| Overall Dimensions (H x D x W) | 26 5/8 x 3 5/8 x 5 1/2 in (676 x 92 x 140mm) |
| Compartment Dimensions (H x D x W) | 4 5/16 x 3 7/16 x 5 3/16 in (110 x 88 x 132 mm) |
| Material | Stainless steel |
| Rack Type | Vertical rack |
| Construction | Double welded with smoothed edges |
| Recommended Use | Chest freezers and liquid nitrogen tanks |
| Warranty | Lifetime warranty on rack products |
Other Configurations
Applications
- Large-volume sample aliquot storage
- Biobank serum and plasma archives
- 2D barcoded tube inventory in chest freezers
- Liquid nitrogen tank organization
