Product Description
Mini boxes are ideal when you need a small footprint, and these vertical racks keep them stacked in one slim, easy-to-lift column. With capacities from 3 to 15 boxes, there is a height for nearly any chest freezer or liquid nitrogen tank.

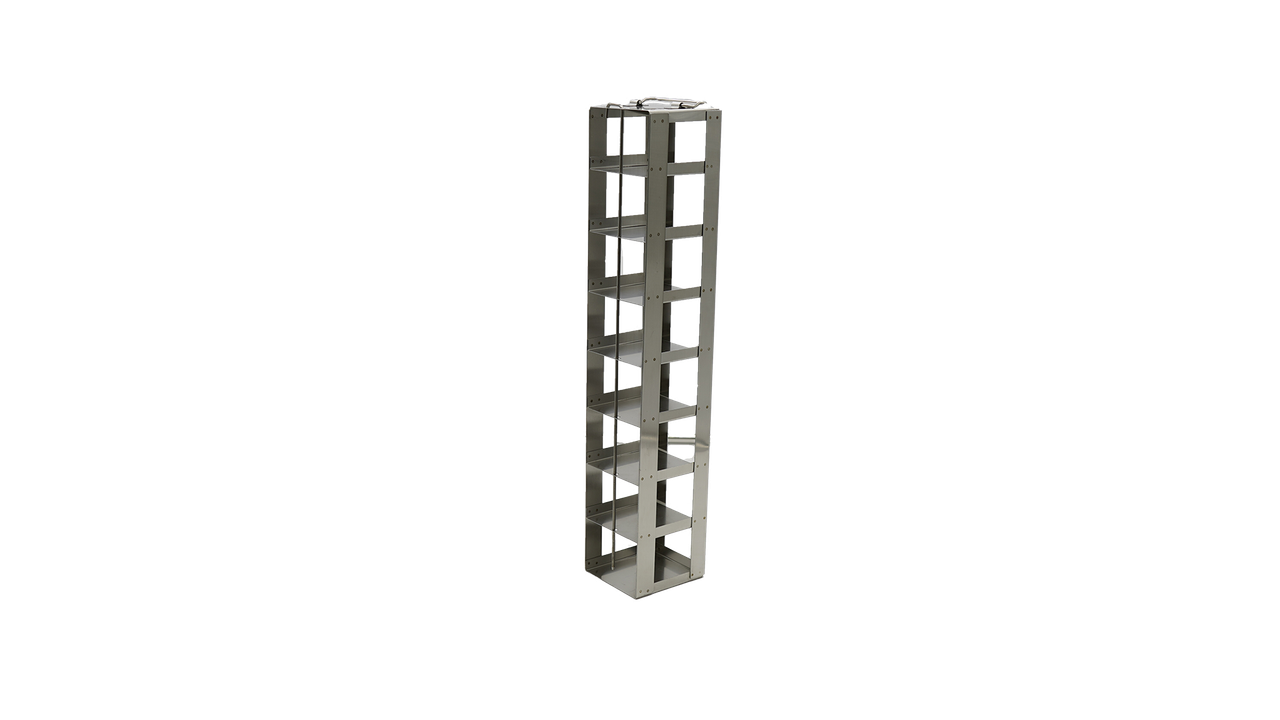

This listing is for Crystal catalog number MCF-8-2, the Vertical Freezer Rack for Mini 2" Boxes. The racks are made of pharmaceutical-grade stainless steel, double welded, with smoothed edges, and use compartments sized for mini 2" or mini 3" boxes. Each rack measures 3 3/8 x 3 1/4 in across its footprint; load boxes from the top compartment down, then lower the rack into storage. A matching security lock device is available and ordered separately. Order it from LIGHT LABS and pair it with the boxes and lock devices that fit your freezer.
Key Features
- Pharmaceutical-Grade Stainless Steel – Double welded construction with smoothed edges for durability and safe handling
- Mini Box Compartments – Sized for mini 2" boxes (55 x 78 x 78 mm) or mini 3" boxes (80 x 78 x 78 mm)
- Wide Range of Heights – Hold 3 to 15 mini 2" boxes or 4 to 10 mini 3" boxes
- Optional Security Lock – A matching lock device is ordered separately for controlled access
- Lifetime Warranty – Crystal offers a lifetime warranty on all rack products
Specifications
| Catalog Number | MCF-8-2 |
| Brand | Crystal Technology & Industries |
| Box Type | Mini 2" boxes |
| Configuration | Single column, 8 compartments |
| Box Capacity | 8 boxes |
| Overall Dimensions (H x W x D) | 17 7/8 x 3 3/8 x 3 1/4 in (454 x 86 x 82 mm) |
| Compartment Dimensions (H x W x D) | 2 3/16 x 3 1/16 x 3 1/16 in (55 x 78 x 78 mm) |
| Lock Device | Ordered separately |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded, smoothed edges |
| Footprint (W x D) | 3 3/8 x 3 1/4 in (86 x 82 mm) |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- MCF-10-2 – Holds 10 Boxes
- MCF-10-3 – Holds 10 Boxes

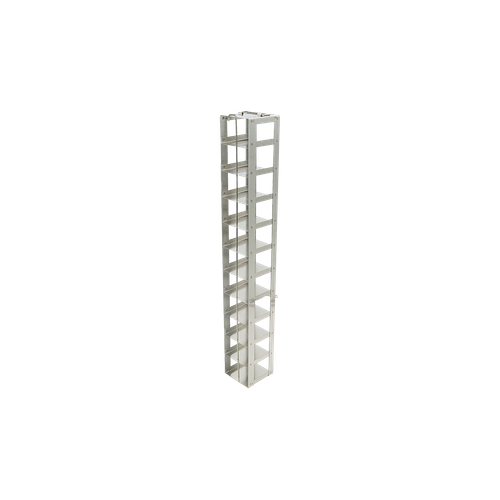

- MCF-11-2 – Holds 11 Boxes
- MCF-12-2 – Holds 12 Boxes
- MCF-13-2 – Holds 13 Boxes
- MCF-14-2 – Holds 14 Boxes
- MCF-15-2 – Holds 15 Boxes
- MCF-3-2 – Holds 3 Boxes
- MCF-4-2 – Holds 4 Boxes
- MCF-4-3 – Holds 4 Boxes
- MCF-5-2 – Holds 5 Boxes
- MCF-5-3 – Holds 5 Boxes
- MCF-6-2 – Holds 6 Boxes
- MCF-6-3 – Holds 6 Boxes
- MCF-7-2 – Holds 7 Boxes
- MCF-7-3 – Holds 7 Boxes
Applications
- Chest freezer storage of mini boxes
- Liquid nitrogen tank storage
- Small-volume sample and aliquot banking
- Cell line and reagent inventory
