Product Description
When racks are lifted out of a chest freezer or LN2 tank dozens of times a day, a lighter tower makes the job easier on the hands. Crystal's MCFA vertical racks are made of aluminum and hold mini 2" boxes in stacks of 9 to 15 or mini 3" boxes in stacks of 7 to 10.
This listing is for Crystal catalog number MCFA-13-2, the Aluminum Vertical Freezer Rack for Mini 2" Boxes. Each rack is a single-column vertical frame about 3 3/8 x 3 1/4 in (86 x 82 mm) in footprint, sized to slip into the narrow spaces of chest freezers and liquid nitrogen tanks. Compartments measure 54.5 x 77 x 77 mm for mini 2" boxes and 80 x 77 x 77 mm for mini 3" boxes; a lock device is available and ordered separately. LIGHT LABS stocks Crystal freezer racks and ships them quickly from Englewood, Colorado.
Key Features
- Aluminum Construction – a lightweight aluminum frame that is easy to raise from deep chest freezers and LN2 tanks
- Two Box Heights – versions for mini 2" boxes (9-15 high) and mini 3" boxes (7-10 high)
- Compact Footprint – a 3 3/8 x 3 1/4 in (86 x 82 mm) column fits narrow storage openings
- Lock Device Option – a security lock device can be added and is ordered separately
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | MCFA-13-2 |
| Brand | Crystal Technology & Industries |
| Box Type / Fits | Mini 2" boxes |
| Box Capacity | 13 boxes (single vertical stack) |
| Overall Dimensions (H x W x D) | 28 7/16 x 3 3/8 x 3 1/4 in (723 x 86 x 82 mm; inch height corrected from 28 7/8) |
| Compartment Dimensions (H x W x D) | 2 3/16 x 3 1/16 x 3 1/16 in (54.5 x 77 x 77 mm) |
| Material | Aluminum |
| Lock Device | Ordered separately |
| Rack Type | Vertical, single column |
| Box Type | Mini 2" or mini 3" boxes (by model) |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- MCFA-10-2 – Holds 10 Boxes
- MCFA-10-3 – Holds 10 Boxes

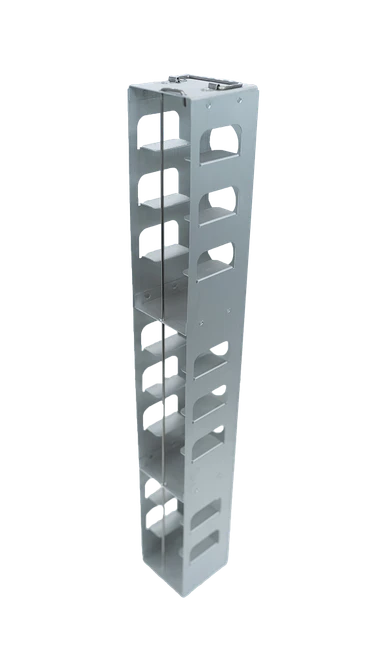

- MCFA-11-2 – Holds 11 Boxes

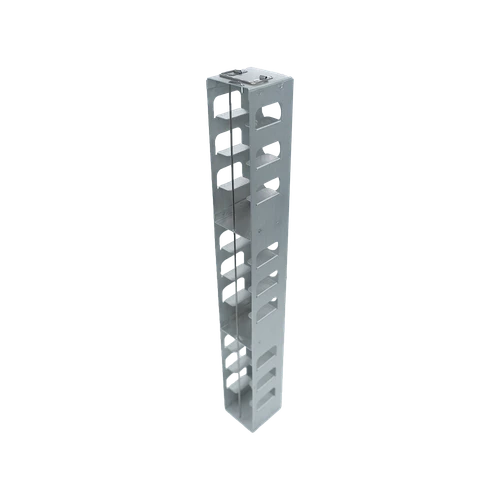

- MCFA-12-2 – Holds 12 Boxes

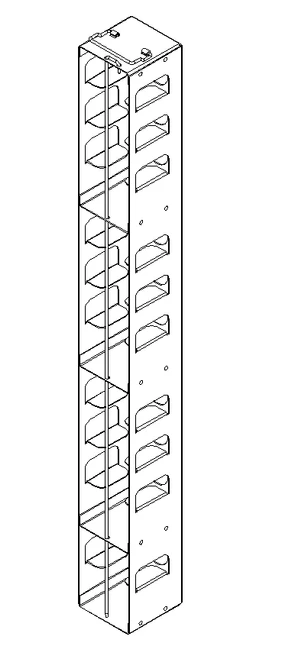

- MCFA-14-2 – Holds 14 Boxes

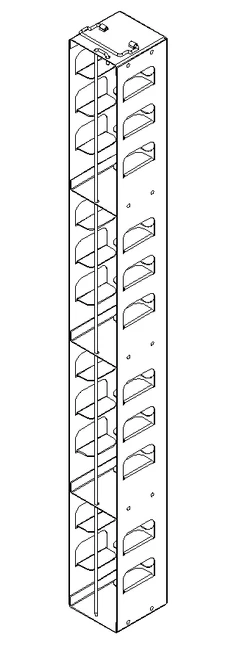

- MCFA-15-2 – Holds 15 Boxes
- MCFA-7-3 – Holds 7 Boxes
- MCFA-8-3 – Holds 8 Boxes
- MCFA-9-2 – Holds 9 Boxes
- MCFA-9-3 – Holds 9 Boxes
Applications
- Chest freezer box storage
- Liquid nitrogen tank racking
- Cryovial storage in mini 2" and 3" boxes
- High-turnover sample retrieval
