Product Description
Seal a plate in under 20 seconds with consistent, reproducible results every cycle. The SmartSeal Pro automates thermal plate sealing from start to finish, so every plate gets the same temperature, time and pressure no matter who runs it.

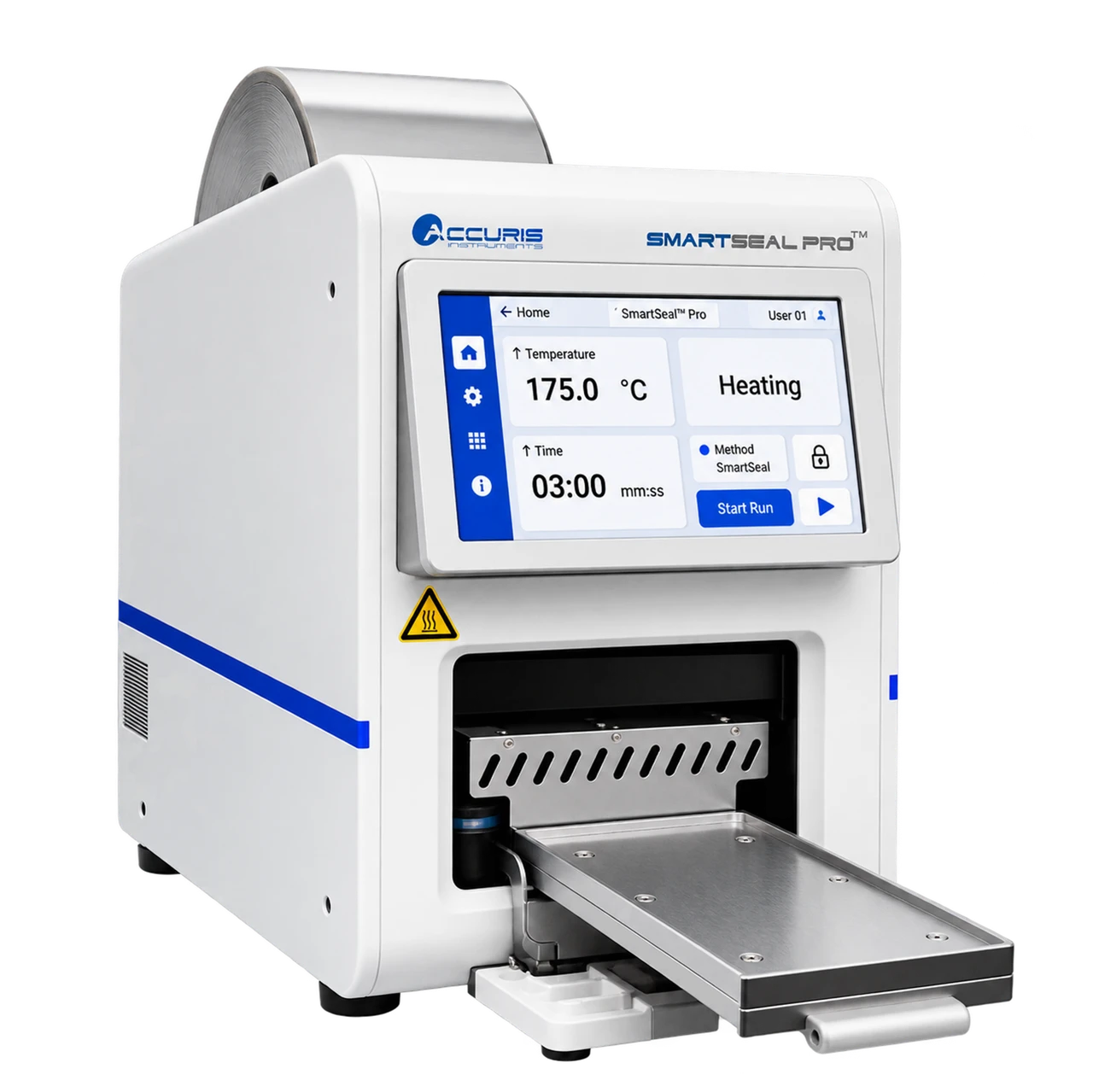

This listing is for Accuris catalog number MS2000, the SmartSeal Pro Automated Thermal Plate Sealer for 115 V power. Set the sealing temperature and time on the 7-inch color touchscreen, start the cycle, and the instrument pulls roll-fed film over the plate, seals it and cuts the film automatically. A built-in air source means no external compressed air line is needed, and USB and Ethernet connections with an available API support both manual and automated workflows. LIGHT LABS can help you choose the right sealing film and adapters for your plates.
Key Features
- Fast Cycle Time – Reproducible seals in less than 20 seconds per plate, with a preheat time of 5 seconds or less
- Automated Pull, Seal and Cut – Roll-fed film is pulled over the plate, sealed and trimmed automatically
- Built-In Air Source – No external compressed air required
- Precise Temperature Control – 25-200 °C range with ±1 °C accuracy and 1 °C increments
- Wide Plate Compatibility – ANSI/SBS plates from 3 to 62 mm high, including PCR, standard and deep-well plates
- Intuitive Touchscreen – 7-inch color display for setting parameters and monitoring each cycle in real time
- Automation Ready – USB and Ethernet connections with an available API
How It Works
- Set parameters – Select sealing temperature and time on the touchscreen.
- Start the cycle – Initiate sealing from the touchscreen.
- Automated sealing – The system controls temperature, time and pressure.
- Retrieve the plate – Remove the sealed plate when the cycle is complete.
Specifications
| Catalog Number | MS2000 |
| Brand | Accuris Instruments |
| Model | SmartSeal Pro Automated Thermal Plate Sealer |
| Voltage | 115 V |
| Supported Plates | ANSI/SBS standard plates, 3-62 mm height |
| Supported Roll Width | 78-84 mm |
| Temperature Range | 25-200 °C |
| Temperature Accuracy | ±1 °C |
| Temperature Increment | 1 °C |
| Preheat Time | ≤5 seconds |
| Cycle Time | <20 seconds per plate |
| Sealing Time | 0.5-9.9 seconds, 0.1 second increments |
| Air Source | Built-in (no external compressed air) |
| Display | 7-inch color touchscreen |
| Connections | USB, Ethernet (API available) |
| Power Input | 100-240 VAC, 50/60 Hz |
| Maximum Power | 300 W |
| Dimensions (L x W x H) | 14.2 x 8.7 x 18 in (36 x 22 x 45.7 cm) |
| Instrument Weight | 35.2 lb (16 kg) |
| Adapters Included | 96-well PCR adapter and deep-well plate adapter |
What's Included
- SmartSeal Pro Automated Thermal Plate Sealer, 115 V
- 96-well PCR plate adapter
- Deep-well plate adapter
Plate Compatibility
- ANSI/SBS standard plates, 3-62 mm height
- Standard microplates, deep-well plates and PCR plates (96- and 384-well)
- Sealing films are compatible with polypropylene plates
- Optional 384-well PCR adapter (MS2000-A-384) for 384-well PCR plates
Sealing Films
- MS2035-200-FP Pierceable Foil Heat Seal, 35 µm, 200 m – direct pipette tip access, routine and cold storage
- MS2085-200-FEP Easy-Peel Foil Heat Seal, 85 µm, 200 m – reagent storage, deep-well plates, low-temperature workflows
- MS2050-200-QPCR Clear Heat Seal for qPCR, 50 µm, 200 m – PCR/qPCR, fluorescence and colorimetric reads
Accessories
Need a Semi-Automated Sealer?
For lower-throughput labs that use pre-cut seals, see the MS1000 SmartSeal Semi-Automated Microplate Heat Sealer.
Applications
- qPCR and PCR plate sealing
- Fluorescence and colorimetric assays
- Reagent and compound storage
- Sample storage and biobanking
- Manual and automated plate-handling workflows
