Product Description

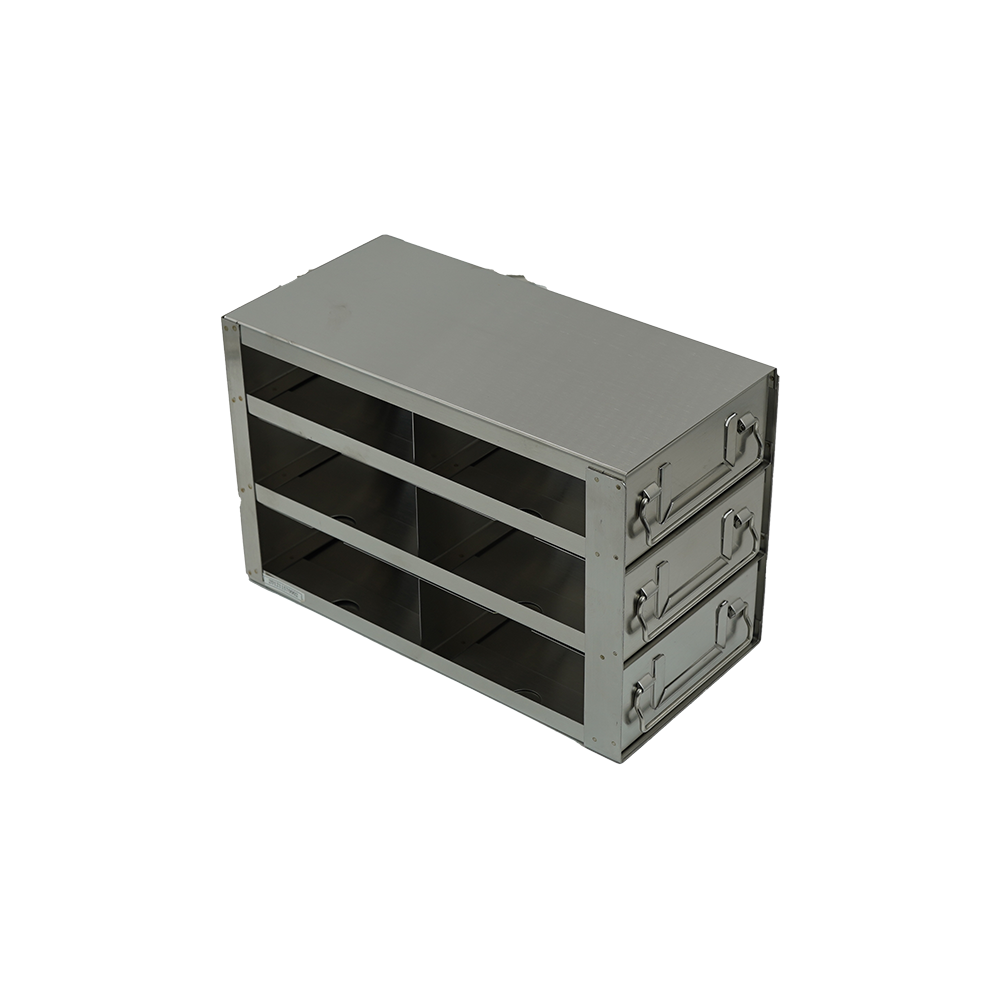

Keep six boxes of samples organized and within easy reach. The Crystal Technology & Industries UFD-232 Upright Freezer Drawer Rack stores six standard 2" freezer boxes in three pull-out drawers, two boxes deep by three boxes high. Open one drawer to reach both boxes in that row, including the one at the back, without pulling the whole rack out of the freezer or disturbing the rest of your inventory.
The UFD-232 is made from stainless steel, so it stays strong and corrosion-free through years of -80°C storage and repeated freeze-thaw handling. Each compartment fits standard 2" cardboard, fiberboard, and polycarbonate freezer boxes. With a slim 5 1/2" width and 7 1/8" height, it fits partial shelves, smaller upright freezers, and the leftover space beside larger racks.
The UFD-232 is one of more than a dozen Crystal drawer rack configurations for 2" boxes, so you can match racks to every shelf in your freezer. Build your complete cold storage setup with LIGHT LABS.
Key Features
- Pull-out drawers – Access boxes without removing the entire rack from the freezer
- Holds 6 standard 2" boxes – 2 boxes deep x 3 boxes high
- Stainless steel construction – Corrosion-resistant and durable at ultra-low temperatures
- Slim 5 1/2" width – Fits small freezers, partial shelves, and gaps between larger racks
- Fits standard 2" boxes – Cardboard, fiberboard, and polycarbonate freezer boxes
- Less door-open time – Find and remove samples quickly to protect freezer temperature
- Part of a complete system – Matching drawer racks available from 2 x 2 to 5 x 5
Specifications
| Catalog Number | UFD-232 |
| Brand | Crystal Technology & Industries |
| Rack Type | Upright freezer drawer rack |
| Box Size | Standard 2" boxes |
| Configuration | 2 boxes deep x 3 boxes high |
| Total Capacity | 6 boxes |
| Material | Stainless steel |
| Overall Dimensions (W x D x H) | 5 1/2 x 11 7/16 x 7 1/8 in (140 x 290 x 181 mm) |
| Compartment Dimensions (W x D x H) | 5 1/4 x 5 3/8 x 2 1/8 in (133 x 137.4 x 54.4 mm) |
| Boxes Included | No, rack only |
Choose by Configuration – 2-Deep Drawer Racks for 2" Boxes
- UFD-222 – 2 deep x 2 high, 4 boxes
- UFD-232 – 2 deep x 3 high, 6 boxes
- UFD-242 – 2 deep x 4 high, 8 boxes
- UFD-252 – 2 deep x 5 high, 10 boxes
Drawer Rack or Side-Access Rack?
- Drawer Rack (UFD Series) – Pull out one drawer to see and reach every box in that row. Best for frequently accessed samples and for reaching boxes at the back of deep racks.
- Side-Access Rack (UF Series) – Boxes slide in and out of open compartments from the side. Best for maximum capacity and lowest cost per box position.
Applications
- Sample storage in -80°C and -20°C upright freezers
- Biobanking and specimen inventory management
- Storage of cryovials, microtubes, and aliquots in 2" boxes
- Organizing small or partial freezer shelves
- Clinical, research, and pharmaceutical laboratories
