Product Description
Plates stored flat and in order are plates that thaw evenly and get found on the first try. The UFDMP series from Crystal organizes microtiter plates in drawer compartments, with configurations from 3 deep x 3 high to 7 deep x 6 high; the 3-deep models hold up to 72 plates without lids.

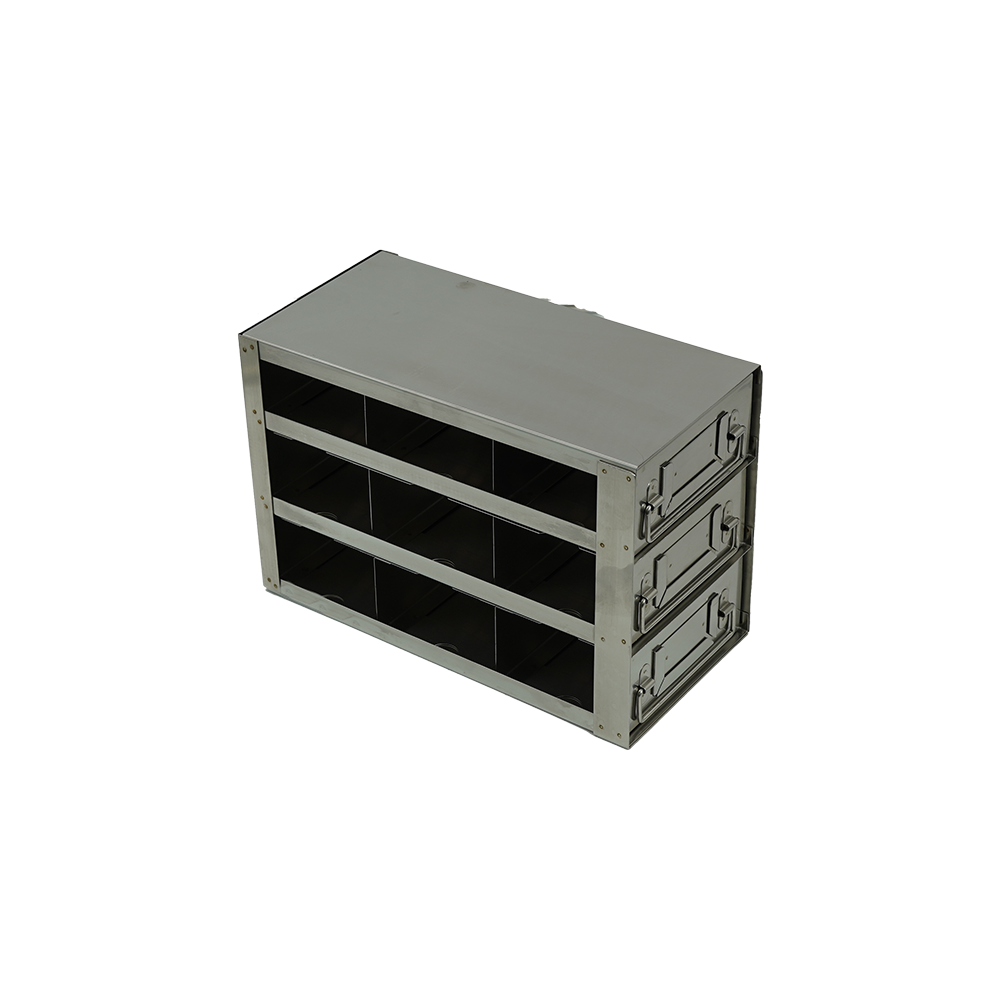

This listing is for Crystal catalog number UFDMP-66, the Upright Freezer Drawer Rack for Microtiter Plates. Racks are pharmaceutical-grade stainless steel, double welded, with smoothed edges that will not snag gloves. Each compartment slides forward like a drawer, so a stack of plates can be removed for screening while the rest of the library stays frozen. LIGHT LABS can help you match Crystal racks to your freezer shelves and storage boxes.
Key Features
- Plate-Sized Compartments – hold 96-well and 384-well microtiter plates flat and stacked
- Multi-Plate Stacking – 3-deep models store 3 plates per compartment with lids or 4 without
- Pharmaceutical-Grade Stainless Steel – built from pharmaceutical-grade stainless steel that holds up to repeated freeze-thaw cycles and routine cleaning
- Double-Welded Construction – double-welded joints and smoothed edges keep the rack rigid and protect gloves and hands during handling
- Security Lock Option – a lock device is available for added sample security and is ordered separately
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | UFDMP-66 |
| Brand | Crystal Technology & Industries |
| Fits | Microtiter plates |
| Configuration | 6 deep x 6 high |
| Compartments | 36 |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Rack Style | Upright freezer drawer rack |
| Lock | Lock device ordered separately |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- UFDMP-33 – 3 Deep x 3 High
- UFDMP-34 – 3 Deep x 4 High
- UFDMP-35 – 3 Deep x 5 High
- UFDMP-36 – 3 Deep x 6 High
- UFDMP-43 – 4 Deep x 3 High (12 Compartments)
- UFDMP-44 – 4 Deep x 4 High (16 Compartments)
- UFDMP-45 – 4 Deep x 5 High (20 Compartments)
- UFDMP-46 – 4 Deep x 6 High (24 Compartments)
- UFDMP-53 – 5 Deep x 3 High (15 Compartments)
- UFDMP-54 – 5 Deep x 4 High (20 Compartments)
- UFDMP-55 – 5 Deep x 5 High (25 Compartments)
- UFDMP-56 – 5 Deep x 6 High (30 Compartments)

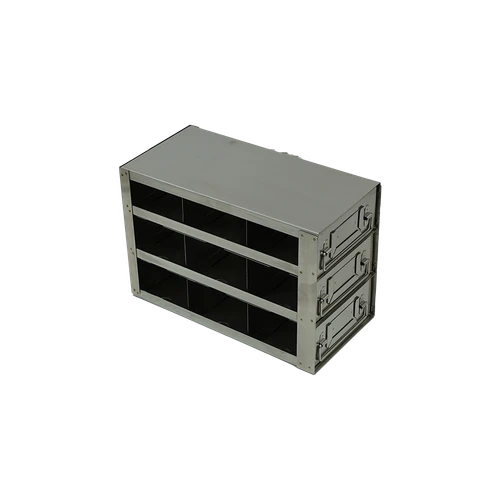

- UFDMP-63 – 6 Deep x 3 High (18 Compartments)
- UFDMP-64 – 6 Deep x 4 High (24 Compartments)
- UFDMP-65 – 6 Deep x 5 High (30 Compartments)
- UFDMP-73 – 7 Deep x 3 High (21 Compartments)
Applications
- High-throughput screening plate libraries
- Compound and assay plate storage
- Genomics and PCR plate archives
- Upright -80°C freezer organization
