Product Description
PCR strips and single 0.2 mL tubes are small enough to scatter, so a rack that files their 96-well boxes by drawer saves real search time. Crystal's UFDPCR series holds 0.2 mL tube 96-well PCR boxes in 15 configurations, from 3 deep x 2 high to 7 deep x 4 high.
This listing is for Crystal catalog number UFDPCR-42, the Upright Freezer Drawer Rack for 0.2 mL 96-Well PCR Tube Boxes. Racks are pharmaceutical-grade stainless steel, double welded with smoothed edges, and 5 7/16" wide. Each 2 7/8" (73 mm) tall compartment slides out on its own, so a single PCR box can be retrieved while the rest of the run archive stays frozen. LIGHT LABS can help you match Crystal racks to your freezer shelves and storage boxes.
Key Features
- PCR Box Compartments – 2 7/8" (73 mm) high slots sized for 0.2 mL tube 96-well PCR boxes
- 15 Configurations – 6 to 28 box positions across five depths and three heights
- Pharmaceutical-Grade Stainless Steel – built from pharmaceutical-grade stainless steel that holds up to repeated freeze-thaw cycles and routine cleaning
- Double-Welded Construction – double-welded joints and smoothed edges keep the rack rigid and protect gloves and hands during handling
- Drawer-Style Access – pull a single box forward without removing the whole rack
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | UFDPCR-42 |
| Brand | Crystal Technology & Industries |
| Box Type / Fits | 0.2 mL tube 96-well PCR boxes |
| Configuration | 4 deep x 2 high |
| Box Capacity | 8 boxes |
| Overall Dimensions | 6 1/4" H x 5 7/16" W x 15 1/16" D (159 x 138 x 382 mm) |
| Compartment Dimensions | 2 7/8" H x 5 3/16" W x 3 5/8" D (73 x 131 x 92 mm) |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Rack Style | Upright freezer drawer rack |
| Box Type | 0.2 mL tube 96-well PCR boxes |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- UFDPCR-32 – 3 Deep x 2 High (6 Boxes)
- UFDPCR-33 – 3 Deep x 3 High (9 Boxes)
- UFDPCR-34 – 3 Deep x 4 High (12 Boxes)
- UFDPCR-43 – 4 Deep x 3 High (12 Boxes)
- UFDPCR-44 – 4 Deep x 4 High (16 Boxes)

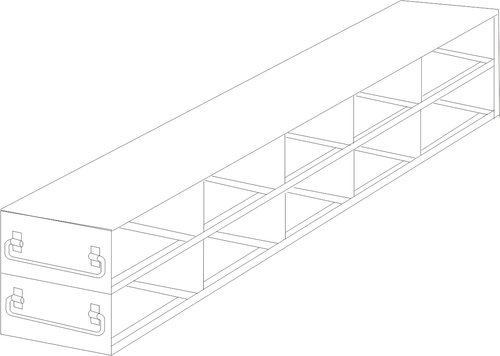

- UFDPCR-52 – 5 Deep x 2 High (10 Boxes)
- UFDPCR-53 – 5 Deep x 3 High (15 Boxes)
- UFDPCR-54 – 5 Deep x 4 High (20 Boxes)
- UFDPCR-62 – 6 Deep x 2 High (12 Boxes)
- UFDPCR-63 – 6 Deep x 3 High (18 Boxes)
- UFDPCR-64 – 6 Deep x 4 High (24 Boxes)
- UFDPCR-72 – 7 Deep x 2 High (14 Boxes)
- UFDPCR-73 – 7 Deep x 3 High (21 Boxes)
- UFDPCR-74 – 7 Deep x 4 High (28 Boxes)
Applications
- PCR product and template archives
- qPCR sample storage
- Molecular diagnostics labs
- Upright -80°C freezer organization
