Product Description
Keep frozen tissue sections and slide archives in order with a drawer rack that gives every slide box its own pull-out space. These Crystal UFDS racks are offered for both 100-place and 25-place slide boxes in a wide range of depth and height configurations, so you can match the rack to the shelf you have.
This listing is for Crystal catalog number UFDS-100-24, the Drawer Rack for 100-Place Slide Boxes. Each rack is built from pharmaceutical-grade stainless steel, double welded and finished with smoothed edges for safe handling. Individual drawers let you pull a single box forward in seconds, which shortens door-open time in ultra-low freezers; a security lock device can be added and is ordered separately. LIGHT LABS can help you match Crystal racks to your freezer shelves and storage boxes.
Key Features
- Slide Box Sized Compartments – each drawer is cut to hold one slide box, so stored slides stay flat, level and easy to locate
- Pull-Out Drawer Access – boxes slide out individually from the front, so you retrieve one box without lifting out the whole stack
- Pharmaceutical-Grade Stainless Steel – double welded with smoothed edges for strength at ultra-low temperatures and safe handling with gloves
- Optional Security Lock – a security lock device is available for added sample control and is ordered separately
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | UFDS-100-24 |
| Brand | Crystal Technology & Industries |
| Box Type / Fits | 100-place microscope slide boxes |
| Configuration | 2 deep x 4 high |
| Box Capacity | 8 slide boxes |
| Overall Dimensions (H x W x D) | 6 15/16 x 8 5/8 x 14 7/8 in (176.5 x 219 x 378 mm) |
| Compartment Dimensions (H x W x D) | 1 1/2 x 8 1/4 x 7 1/8 in (38.4 x 210 x 180.5 mm) |
| Rack Style | Drawer rack |
| Security Lock | Security lock device ordered separately |
| Pack Size | 1 rack |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- UFDS-100-25 – 2 Deep x 5 High (10 Boxes)
- UFDS-100-26 – 2 Deep x 6 High (12 Boxes)
- UFDS-100-27 – 2 Deep x 7 High (14 Boxes)

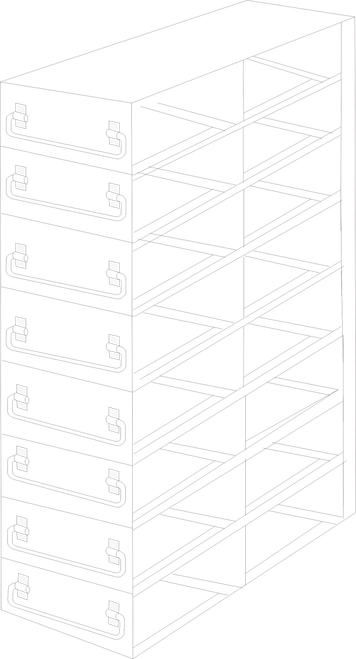

- UFDS-100-28 – 2 Deep x 8 High (16 Boxes)
- UFDS-100-34 – 3 Deep x 4 High (12 Boxes)
- UFDS-100-35 – 3 Deep x 5 High (15 Boxes)
- UFDS-100-36 – 3 Deep x 6 High (18 Boxes)
- UFDS-100-37 – 3 Deep x 7 High (21 Boxes)
- UFDS-100-38 – 3 Deep x 8 High (24 Boxes)
- UFDS-100-44 – 4 Deep x 4 High (16 Boxes)
- UFDS-100-45 – 4 Deep x 5 High (20 Boxes)

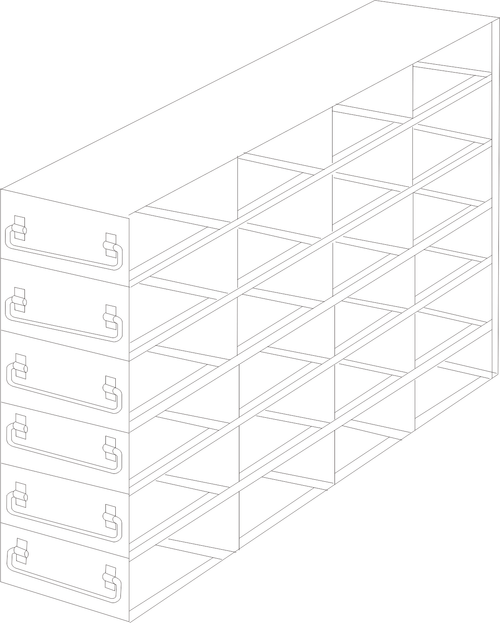

- UFDS-100-46 – 4 Deep x 6 High (24 Boxes)
- UFDS-100-47 – 4 Deep x 7 High (28 Boxes)
- UFDS-100-48 – 4 Deep x 8 High (32 Boxes)
- UFDS-25-34 – 3 Deep x 4 High (12 Boxes)
- UFDS-25-35 – 3 Deep x 5 High (15 Boxes)
Applications
- Frozen tissue section slide storage
- Histology and pathology slide archives
- Immunohistochemistry slide banking
- Ultra-low upright freezer organization
