Product Description
When a slide archive outgrows small racks, these deeper Crystal units hold 24 to 56 standard 25-place slide boxes in a single pull-out rack. Six- and seven-deep configurations, 4 to 8 boxes high, make the most of full-depth freezer shelves.

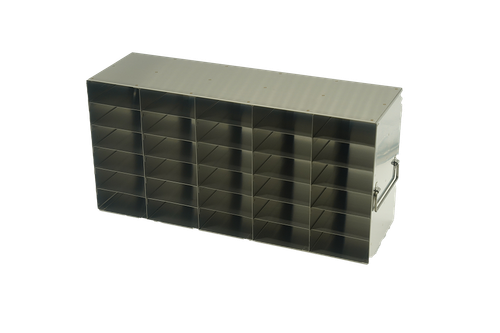

This listing is for Crystal catalog number UFS-25-78, the Upright Freezer Rack for 25-Place Slide Boxes. Each rack is built from pharmaceutical-grade stainless steel, double welded, with smoothed edges. Compartments of about 3 5/8 x 5 5/8 in with 1 1/2 in of height keep slide boxes flat and organized, and a security lock device can be ordered separately. LIGHT LABS stocks Crystal freezer racks and ships them quickly from Englewood, Colorado.
Key Features
- Deep-Shelf Capacity – 6 or 7 boxes deep for up to 56 25-place slide boxes per rack
- Pharmaceutical-Grade Stainless Steel – double-welded construction with smoothed edges stands up to years of ultra-low temperature use
- Sized for 25-Place Slide Boxes – 3 5/8 x 5 5/8 x 1 1/2 in (92 x 143 x 38 mm) compartments
- Optional Security Lock – security lock device is ordered separately
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | UFS-25-78 |
| Brand | Crystal Technology & Industries |
| Box Type / Fits | 25-place slide boxes |
| Configuration | 7 deep x 8 high |
| Box Capacity | 56 boxes |
| Overall Dimensions (H x W x D) | 12 1/4 x 5 11/16 x 26 3/8 in (310.5 x 145 x 670 mm) |
| Compartment Dimensions (H x W x D) | 1 1/2 x 5 5/8 x 3 5/8 in (38 x 143 x 92 mm) |
| Security Lock | Ordered separately |
| Pack Size | 1 rack (each) |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded, smoothed edges |
| Rack Style | Upright freezer rack |
| Warranty | Lifetime warranty on rack products |
Other Configurations
- UFS-25-64 – 6 Deep x 4 High (24 Boxes)
- UFS-25-65 – 6 Deep x 5 High (30 Boxes)
- UFS-25-66 – 6 Deep x 6 High (36 Boxes)
- UFS-25-67 – 6 Deep x 7 High (42 Boxes)
- UFS-25-68 – 6 Deep x 8 High (48 Boxes)
- UFS-25-74 – 7 Deep x 4 High (28 Boxes)
- UFS-25-75 – 7 Deep x 5 High (35 Boxes)
- UFS-25-76 – 7 Deep x 6 High (42 Boxes)
- UFS-25-77 – 7 Deep x 7 High (49 Boxes)
Applications
- Histology and pathology slide archives
- Cytology slide storage
- Tissue research collections
- Long-term frozen slide storage
