Product Description
Flat 80-place tube boxes pack many samples into very little height, and they need a rack built to the same profile. These Crystal racks give each box a low compartment of its own, so no headspace is wasted and boxes stay in order.
This listing is for Crystal catalog number UT80-84, the Freezer Rack for 80-Place Tube Boxes. The racks are built from pharmaceutical-grade stainless steel with double-welded joints and smoothed edges. Compartments measure 1 5/16" high x 9 1/8" wide x 2 3/4" deep (33 x 231 x 70 mm), and configurations run from 4 to 8 deep and 3 to 6 high for 12 to 48 boxes. Add it to your LIGHT LABS order to organize freezer space and speed up sample retrieval.
Key Features
- Low-Profile Compartments – 33 mm high slots match 80-place tube boxes and keep wasted space to a minimum
- Broad Configuration Range – 4 to 8 deep by 3 to 6 high, from 12 to 48 boxes
- Pharmaceutical-Grade Stainless Steel – double-welded construction with smoothed edges stands up to years of ultra-low and cryogenic temperature cycling
- Ordered Inventory – each box has a fixed position for easier sample mapping
- Lifetime Warranty – Crystal backs all of its rack products with a lifetime warranty
Specifications
| Catalog Number | UT80-84 |
| Brand | Crystal Technology & Industries |
| Box Type / Fits | 80-place tube boxes |
| Configuration | 8 deep x 4 high |
| Box Capacity | 32 boxes |
| Overall Dimensions (H x W x D) | 5 3/8 x 9 3/16 x 23 1/8 in (136 x 234 x 588 mm) |
| Compartment Dimensions (H x W x D) | 1 5/16 x 9 1/8 x 2 3/4 in (33 x 231 x 70 mm) |
| Pack Size | 1 rack (each) |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double welded with smoothed edges |
| Warranty | Lifetime warranty on rack products |
| Box Format | 80-place tube boxes |
Other Configurations
- UT80-43 – 4 Deep x 3 High (12 Boxes)

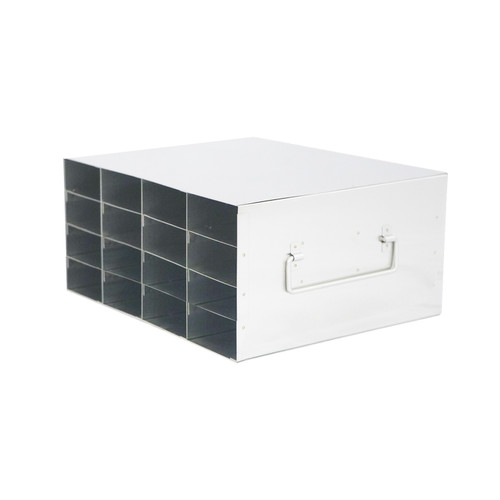

- UT80-44 – 4 Deep x 4 High (16 Boxes)
- UT80-45 – 4 Deep x 5 High (20 Boxes)
- UT80-46 – 4 Deep x 6 High (24 Boxes)
- UT80-53 – 5 Deep x 3 High (15 Boxes)
- UT80-54 – 5 Deep x 4 High (20 Boxes)
- UT80-55 – 5 Deep x 5 High (25 Boxes)
- UT80-56 – 5 Deep x 6 High (30 Boxes)
- UT80-63 – 6 Deep x 3 High (18 Boxes)
- UT80-64 – 6 Deep x 4 High (24 Boxes)
- UT80-65 – 6 Deep x 5 High (30 Boxes)
- UT80-66 – 6 Deep x 6 High (36 Boxes)
- UT80-73 – 7 Deep x 3 High (21 Boxes)
- UT80-74 – 7 Deep x 4 High (28 Boxes)
- UT80-75 – 7 Deep x 5 High (35 Boxes)
- UT80-76 – 7 Deep x 6 High (42 Boxes)
Applications
- Microcentrifuge tube storage in 80-place boxes
- PCR and DNA sample archiving
- -20°C and -80°C freezer organization
- Aliquot inventory in research labs
