Product Description
Advanced floor weighing with full connectivity is what the Defender 5000 i-DF52 brings to warehouses and production floors. Counting, checkweighing, filling, percent weighing and display hold modes run from a graphic indicator, turning a pallet scale into a data-ready workstation.

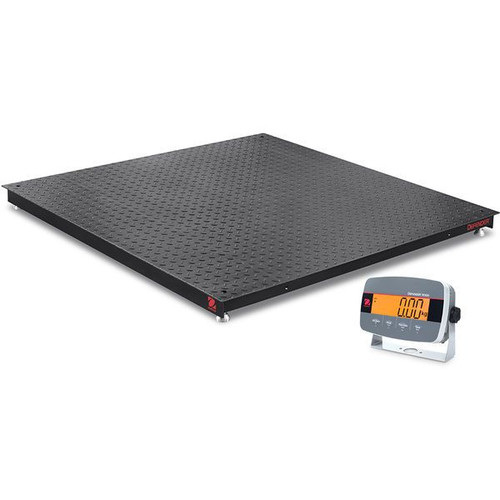

This listing is for OHAUS item number 30837696: Defender 5000 Floor Scale i-DF52P2500B1R, 2,500 lb x 0.5 lb, 3 x 3 ft Platform, Plastic Indicator. The low-flex platform has a 5 mm black painted treaded steel top plate, alloy steel load cells, an IP65 stainless steel junction box with side access and two carbon steel eye bolts. P models include an ABS plastic indicator and XW models a 304 stainless steel indicator, each with a 256 x 80 pixel backlit LCD, RS232 and Micro SD standard, and Ethernet, WiFi/Bluetooth, RS485/USB, discrete I/O and analog output available as accessories. The scales are NTEP certified with GLP/GMP data output and a real-time clock. Order it from LIGHT LABS alongside the rest of your OHAUS balances, weights and lab equipment.
Key Features
- Graphic Indicator – 256 x 80 pixel dot matrix LCD with white LED backlight
- Extensive Connectivity – RS232 and Micro SD standard, Ethernet, WiFi/Bluetooth and RS485/USB optional
- Process Outputs – 4-20 mA analog and 2 in/4 out digital I/O available
- Plastic or Stainless Indicator – ABS (P) or 304 stainless steel (XW) housings
- Low-Flex Steel Platform – 5 mm treaded top plate with IP65 junction box
- NTEP Certified – legal-for-trade approval with GLP/GMP data output
Specifications
| Item Number | 30837696 |
| Brand | OHAUS |
| Description | Defender 5000 Floor Scale i-DF52P2500B1R, 2,500 lb x 0.5 lb, 3 x 3 ft Platform, Plastic Indicator |
| Maximum Capacity | 2,500 lb (1,250 kg) |
| Readability | 0.5 lb (0.2 kg) |
| Readability (Certified) | 0.5 lb (0.5 kg) |
| Platform Size | 3 ft x 3 ft (914 mm x 914 mm) |
| Battery Life | 10 Hours with Rechargeable Battery |
| Legal for Trade | NTEP Certified |
| Dimensions | 3 ft x 3.5 in x 3 ft (914 mm x 90 mm x 914 mm) (LxHxW) |
| Tare Range | To capacity by subtraction |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
| Platform Construction | Painted Steel Diamond Plate |
| Net Weight | 225 lb (102 kg) |
| Protection Rating | Not Applicable |
| Communication | Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory) |
| Power | Rechargeable Battery (Not Included);AC Power (Included) |
| Units of Measurement | Metric Tons;Kilogram;Pound;Tonne;Custom |
| Display | Dot matrix LCD with white LED backlight |
| Outputs | 4 - 20mA;2 In/4 Out digital I/O |
| Junction Box | IP65 Stainless Steel, Side Access |
Related Models
- 30837698 – Defender 5000 Floor Scale i-DF52P2500B1L, 2,500 lb x 0.5 lb, 4 x 4 ft Platform, Plastic Indicator
- 30837699 – Defender 5000 Floor Scale i-DF52P5000B1L, 5,000 lb x 1 lb, 4 x 4 ft Platform, Plastic Indicator
- 30837707 – Defender 5000 Floor Scale i-DF52XW2500B1L, 2,500 lb x 0.5 lb, 4 x 4 ft Platform, Stainless Steel Indicator
- 30837706 – Defender 5000 Floor Scale i-DF52XW2500B1R, 2,500 lb x 0.5 lb, 3 x 3 ft Platform, Stainless Steel Indicator
- 30837708 – Defender 5000 Floor Scale i-DF52XW5000B1L, 5,000 lb x 1 lb, 4 x 4 ft Platform, Stainless Steel Indicator
Applications
- Pallet weighing
- Filling and batching
- Warehouse inventory and counting
- Shipping and receiving
- Production checkweighing
- Data collection and traceability
