Product Description
Heavy pallets, drums and totes get weighed accurately on the shop floor, even in areas that are hosed down every shift. The Defender 5000 washdown floor scales pair a stainless steel platform with a full-featured indicator, so receiving, shipping and production teams get dependable, NTEP-certified results without a separate system build.

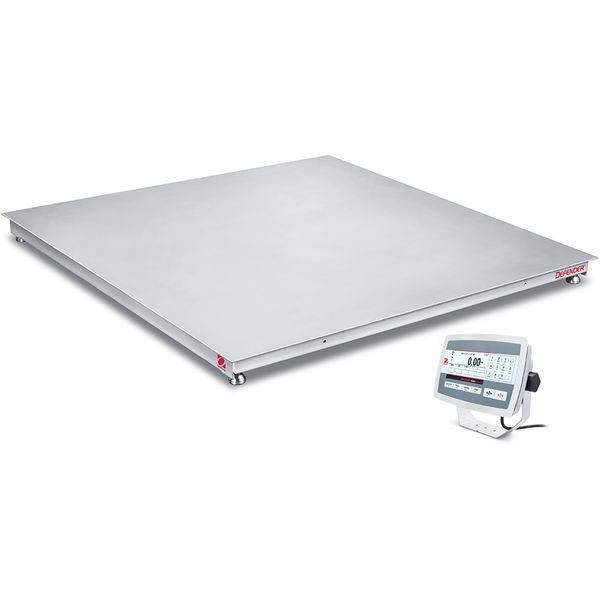

This listing is for OHAUS item number 30837697: Defender 5000 Washdown Floor Scale i-DF52XW2500C1R, 2,500 lb x 0.5 lb, 3 ft x 3 ft. Each base uses IP68 load cells, a stainless steel platform and an IP68 stainless steel junction box with side access, and the 304 stainless steel IP68 indicator is included. The backlit dot-matrix display runs counting, checkweighing, percent weighing, accumulation, filling and display hold modes. RS232 and a Micro SD slot are standard, with Ethernet, USB, RS485, WiFi/Bluetooth, discrete I/O and 4-20 mA analog output available as accessories, and the scale runs on AC power or an optional rechargeable battery. Add it to your LIGHT LABS order and keep your lab running with genuine OHAUS equipment.
Key Features
- IP68 Stainless Steel Construction – Stainless platform, junction box and load cells are built for wet, washdown environments
- NTEP Certified – Legal-for-trade approval supports shipping, receiving and commercial transactions
- Multifunction Indicator – Counting, checkweighing, percent weighing, filling and display hold are built in
- Expandable Connectivity – RS232 and Micro SD included, with Ethernet, USB, RS485 and WiFi/Bluetooth options
- Flexible Power – AC power included, with an optional rechargeable battery rated for about 10 hours
- Industrial Outputs – 4-20 mA analog and 2 in / 4 out digital I/O for process integration
Specifications
| Item Number | 30837697 |
| Brand | OHAUS |
| Description | Defender 5000 Washdown Floor Scale i-DF52XW2500C1R, 2,500 lb x 0.5 lb, 3 ft x 3 ft |
| Maximum Capacity | 2,500 lb (1,250 kg) |
| Readability | 0.5 lb (0.2 kg) |
| Readability (Certified) | 0.5 lb (0.5 kg) |
| Platform Size | 3 ft x 3 ft (914 mm x 914 mm) |
| Battery Life | 10 Hours with Rechargeable Battery |
| Legal for Trade | NTEP Certified |
| Dimensions | 3 ft x 3.5 in x 3 ft (914 mm x 90 mm x 914 mm) (LxHxW) |
| Tare Range | To capacity by subtraction |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
| Platform Construction | Stainless Steel |
| Net Weight | 216 lb (98 kg) |
| Protection Rating | IP68 |
| Communication | Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory) |
| Power | Rechargeable Battery (Not Included);AC Power (Included) |
| Units of Measurement | Metric Tons;Kilogram;Pound;Tonne;Custom |
| Display | Dot matrix LCD with white LED backlight |
| Outputs | 4 - 20mA;2 In/4 Out digital I/O |
Related Models
- 30837700 – Defender 5000 Washdown Floor Scale i-DF52XW2500C1L, 2,500 lb x 0.5 lb, 4 ft x 4 ft
- 30837701 – Defender 5000 Washdown Floor Scale i-DF52XW5000C1L, 5,000 lb x 1 lb, 4 ft x 4 ft
Applications
- Pallet and drum weighing
- Food and beverage processing
- Shipping and receiving
- Batch filling
- Chemical plant weighing
- Inventory counting
