Product Description

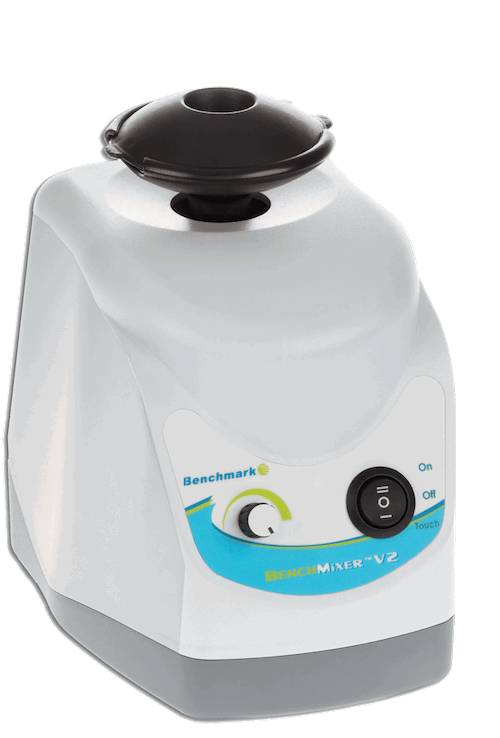

LIGHT LABS is proud to offer the Benchmark Scientific BenchMixer™ V2 Vortex Mixer (Cat # BV1003) — the next-generation upgrade to the classic BV1000 BenchMixer™, combining all the proven performance advantages of Q-Drive™ dynamic balancing, 200–3200 RPM variable speed, and dual touch/continuous operating modes with a transformative new innovation: a uniquely reversible rubber mixing head that converts between two different surface orientations to dramatically expand the range of vessels, tube formats, and mixing applications the BV1003 can handle — at no extra cost and without any additional accessories.
The reversible head is the defining innovation of the BV1003 vs. the BV1000. One side features a traditional cupped surface — the preferred orientation for vortexing single conical tubes (15 mL and 50 mL), microcentrifuge tubes, and other standard round-bottomed vessels where the cup concentrates contact against the tube base for maximum vortexing efficiency. Flip the head over and reattach it in the reverse orientation, and the flat dimpled surface is revealed — a surface specifically designed for holding multiple test tubes simultaneously, microtubes, irregularly shaped vessels, and other containers that don't seat well in a conventional cup head. This single reversible head provides two distinct mixing surface options that previously required separate accessory heads — giving the BV1003 built-in versatility that the original BV1000 can only achieve through optional accessories.
All the proven BenchMixer™ performance features carry over from the BV1000: the Q-Drive™ dynamic balancing system for smooth, quiet, vibration-minimized vortexing across the full speed range; no-walk suction feet that anchor the mixer to the bench during high-speed operation; spill-proof electronic speed controls; cold room and incubator compatibility; and a wide range of optional accessory heads for additional vessel formats. 115V, 8.4 lbs, same compact 5" x 6.3" x 6.7" footprint as the BV1000. 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Uniquely reversible rubber mixing head — the defining BV1003 innovation; flips between two orientations to provide TWO distinct mixing surfaces in one head at no extra cost
- Cup surface (standard orientation) — traditional cupped surface for efficient vortexing of single conical tubes (15 mL, 50 mL), microcentrifuge tubes, and standard round-bottomed vessels
- Flat dimpled surface (reversed orientation) — flat surface with dimpled grip pattern for mixing multiple test tubes simultaneously, microtubes, irregularly shaped vessels, and containers that don't seat in a standard cup
- Q-Drive™ dynamic balancing system — advanced counterbalance design for smooth, quiet, vibration-minimized vortexing across the full 200–3200 RPM speed range
- Variable speed: 200–3200 RPM — precise dial-controlled speed for gentle agitation through maximum-power vortexing of full 50 mL conical tubes
- Dual operating modes — Touch mode (pressure-activated) AND Continuous mode (hands-free sustained vortexing); complete workflow flexibility
- "No-walk" suction feet — securely anchors to bench surface during high-speed operation
- Spill-proof electronic controls — speed dial protected from liquid spills
- Cold room and incubator compatible — +4°C to +45°C operating temperature range
- Full 50 mL tube capacity — vortexes from microcentrifuge tubes through full 50 mL conical tubes
- Wide variety of optional accessory heads sold separately — further expands vessel format compatibility
- Compact footprint: 5" x 6.3" x 6.7" — same dimensions as the original BV1000
- Electrical: 115V, 60 Hz or 230V, 50–60 Hz; 180W
- Weight: 8.4 lbs (3.8 kg)
- 2-year warranty
- Made by Benchmark Scientific
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | BV1003 |
| Brand | Benchmark Scientific |
| Product Name | BenchMixer™ V2 Vortex Mixer |
| Speed Range | 200–3200 RPM (variable) |
| Speed Control | Variable — dial controlled |
| Orbital Movement | 3 mm |
| Operating Modes | Touch AND Continuous |
| Head Type | Reversible rubber head — cup surface AND flat dimpled surface |
| Balancing System | Q-Drive™ dynamic balancing |
| No-Walk Feet | Yes — suction feet |
| Spill-Proof Controls | Yes — electronic speed dial |
| Cold Room/Incubator Compatible | Yes — +4°C to +45°C |
| Max Tube Size | Full 50 mL conical tubes |
| Dimensions (W x D x H) | 5" x 6.3" x 6.7" (13 x 16 x 17 cm) |
| Weight | 8.4 lbs (3.8 kg) |
| Electrical | 115V, 60 Hz or 230V, 50–60 Hz; 180W |
| Operating Temperature | +4°C to +45°C |
| Accessories | Wide variety of optional heads and adapters (sold separately) |
| Warranty | 2 years |
BV1003 BENCHMIXER™ V2 vs. BV1000 BENCHMIXER™ — KEY DIFFERENCES
| Feature | BenchMixer™ V2 (BV1003) | BenchMixer™ (BV1000) |
|---|---|---|
| Head Type | Reversible — cup AND flat dimpled | Standard cup only |
| Built-in Surface Options | 2 — cup + flat dimpled | 1 — cup only |
| Multi-Tube Capability | Yes — flat dimpled surface (built-in) | Via optional accessory only |
| Speed Range | 200–3200 RPM | 200–3200 RPM |
| Q-Drive™ | Yes | Yes |
| Operating Modes | Touch & Continuous | Touch & Continuous |
| Dimensions/Weight | Identical | Identical |
| Best For | Labs needing built-in versatility | Labs needing standard cup vortexing |
REVERSIBLE HEAD — WHEN TO USE EACH SURFACE
| Surface | Orientation | Best For |
|---|---|---|
| Cup Surface | Standard (top up) | Single conical tubes (15 mL, 50 mL); microcentrifuge tubes; standard round vessels |
| Flat Dimpled Surface | Reversed (flipped over) | Multiple test tubes; microtubes; irregularly shaped vessels; containers not suited for cup |
OPTIONAL ACCESSORIES FOR BV1003 (SOLD SEPARATELY)
| Cat # | Description |
|---|---|
| BV1003-T500 | Attachment Head for 5 x 50 mL tubes |
| BV1003-T150 | Attachment Head for multiple 15 mL tubes |
| BV1003-P96 | 96-Well Plate Adapter |
| BV1003-M | Microplate Platform |
APPLICATIONS
- Variable-speed vortexing of single conical tubes (cup surface) and multiple test tubes simultaneously (flat dimpled surface)
- Timed continuous vortexing steps in molecular biology and biochemistry protocols
- Mixing of irregularly shaped vessels and microtubes using the flat dimpled surface
- Temperature-controlled vortexing in cold rooms and incubators
- Gentle low-speed agitation of sensitive biological samples
- High-speed maximum power vortexing of full 50 mL conical tubes
- Cell resuspension, reagent mixing, bead resuspension, and general sample mixing
- Any laboratory application requiring a full-featured variable-speed vortex mixer with built-in dual surface reversible head
ORDERING INFORMATION — BENCHMARK SCIENTIFIC VORTEX MIXERS
| Cat # | Product | Speed | Key Feature |
|---|---|---|---|
| BV1003 | BenchMixer™ V2 Vortex Mixer | 200–3200 RPM | Reversible cup/flat dimpled head — built-in dual surface |
| BV1000 | BenchMixer™ Vortex Mixer | 200–3200 RPM | Standard cup head; wide accessory range |

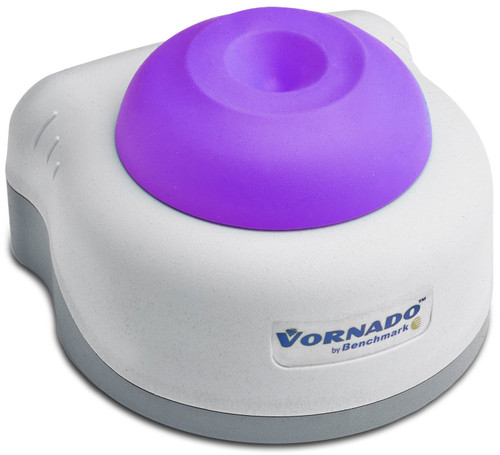

| BV101 | Vornado™ Mini Vortex Mixer — Gray | Fixed 2800 RPM | Ultra-compact; Insta-Touch; <4x4" |
| BV101-B | Vornado™ Mini Vortex Mixer — Blue | Fixed 2800 RPM | Color-coded blue cup |
| BV101-G | Vornado™ Mini Vortex Mixer — Green | Fixed 2800 RPM | Color-coded green cup |
| BV101-P | Vornado™ Mini Vortex Mixer — Purple | Fixed 2800 RPM | Color-coded purple cup |
| BV101-R | Vornado™ Mini Vortex Mixer — Red | Fixed 2800 RPM | Color-coded red cup |
