Product Description

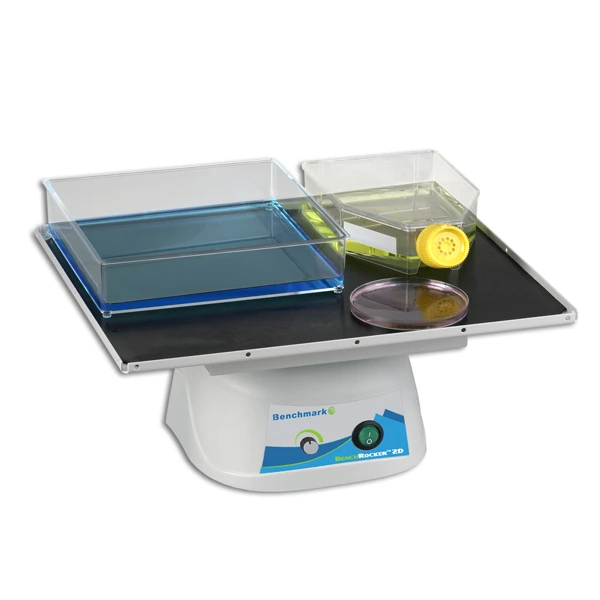

LIGHT LABS is proud to offer the Benchmark Scientific BenchRocker™ 2D Variable Speed Platform Rocker (Cat # BR2000) — the versatile, full-featured variable-speed platform rocker that expands upon the fixed-speed BenchBlotter™ BR1000 with independent adjustment of both rocking speed (2–30 RPM) and tilt angle (0°–30°) for precise optimization across the widest possible range of molecular biology, cell biology, biochemistry, and general laboratory rocking applications. The BenchRocker™ 2D is the ideal rocker for laboratories requiring the flexibility to tailor rocking conditions to specific vessel sizes, liquid volumes, and application requirements — from ultra-gentle low-speed, low-angle rocking for non-foaming blot washing and delicate membrane incubations through vigorous high-speed, high-angle agitation for rapid sample mixing and extraction.
The dual adjustability of the BR2000 is its defining advantage over the fixed-speed BR1000 BenchBlotter™. At low speeds (2–5 RPM) and minimal tilt angles (0°–5°), the BenchRocker™ 2D produces a gentle wave effect across the platform surface — the non-foaming, even coverage motion required for blot washing, gel staining/destaining, antibody incubations, and hybridization. At higher speeds (15–30 RPM) and more extreme tilt angles (15°–30°), it produces aggressive agitation for vigorous sample resuspension, extraction, and mixing applications. The ability to precisely dial in both parameters — matching speed and tilt to the specific vessel size and liquid volume being rocked — delivers optimum mixing performance for any application and any container format on the same instrument.
The BR2000 features a maintenance-free brushless DC motor — a significant engineering advantage that eliminates the most common failure point of conventional rocker motors (brush wear), providing longer service life, quieter operation, and reduced maintenance requirements vs. brushed motor rockers. The large 14" x 12" (35 x 30 cm) platform accommodates multiple gel boxes, blot containers, staining trays, and other vessels simultaneously. An optional stacking platform accessory (BR2000-STACK) doubles the available working area without increasing bench footprint. Cold room and incubator compatible (+4°C to +45°C). 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Variable speed: 2–30 RPM — from ultra-gentle wave-effect rocking (2 RPM) through vigorous agitation (30 RPM); precise speed dial control
- Variable tilt angle: 0°–30° — from nearly flat gentle wave through aggressive 30° see-saw rocking; independent tilt adjustment
- Dual parameter optimization — adjust speed AND tilt independently to precisely match rocking conditions to vessel size, liquid volume, and application requirements
- Maintenance-free brushless DC motor — eliminates brush wear failure; longer service life, quieter operation, and reduced maintenance vs. brushed motors
- Large 14" x 12" (35 x 30 cm) platform — 17% larger than the BR1000 (12" x 12"); accommodates multiple gel boxes, blot containers, and staining trays simultaneously
- 8 lb (3.6 kg) load capacity — supports heavy fully-loaded gel boxes, staining containers, and multiple vessels
- Included 14" x 12" flat rubber mat — large non-skid platform surface
- Optional stacking platform (BR2000-STACK) — doubles working area; 3" clearance between platforms
- Cold room and incubator compatible — +4°C to +45°C operating temperature range
- 115V or 230V, 50–60 Hz; 50W
- Dimensions: 14" x 12" x 8" (35 x 30 x 20 cm)
- Weight: 7.5 lbs (3.4 kg)
- 2-year warranty
- Made by Benchmark Scientific
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | BR2000 |
| Brand | Benchmark Scientific |
| Product Name | BenchRocker™ 2D Variable Speed Platform Rocker |
| Speed Range | Variable 2–30 RPM |
| Tilt Angle | Variable 0° to ±30° |
| Motor | Maintenance-free brushless DC |
| Platform Size | 14" x 12" (35 x 30 cm) |
| Platform Mat | Flat rubber mat (included) |
| Load Capacity | 8 lbs (3.6 kg) |
| Operating Temperature | +4°C to +45°C |
| Stacking Platform | Optional — BR2000-STACK (3" clearance) |
| Dimensions (W x D x H) | 14" x 12" x 8" (35 x 30 x 20 cm) |
| Weight | 7.5 lbs (3.4 kg) |
| Electrical | 115V or 230V, 50–60 Hz; 50W |
| Warranty | 2 years |
SPEED & TILT GUIDE — OPTIMIZING FOR YOUR APPLICATION
| Speed | Tilt Angle | Motion | Best For |
|---|---|---|---|
| 2–5 RPM | 0°–5° | Ultra-gentle wave effect | Non-foaming blot washing; delicate membrane incubations |
| 5–15 RPM | 5°–15° | Gentle-moderate rocking | Antibody incubations; gel staining; standard blot washing |
| 15–30 RPM | 15°–30° | Vigorous agitation | Sample resuspension; extraction; aggressive mixing |
BR2000 BENCHROCKER™ 2D vs. BR1000 BENCHBLOTTER™ — KEY DIFFERENCES
| Feature | BenchRocker™ 2D BR2000 | BenchBlotter™ BR1000 |
|---|---|---|
| Speed | Variable 2–30 RPM | Fixed 12 RPM |
| Tilt Angle | Variable 0°–30° | Fixed ±8° |
| Platform Size | 14" x 12" | 12" x 12" |
| Load Capacity | 8 lbs (3.6 kg) | 5 lbs (2.3 kg) |
| Motor | Maintenance-free brushless | Standard |
| Best For | Wide range of applications; precise optimization | Western blot/gel staining workhorse |
APPLICATIONS
- Western blot washing and antibody incubation at optimized speed and tilt
- SDS-PAGE and agarose gel staining and destaining
- Southern, Northern, and dot blot hybridization incubations
- ELISA plate washing with speed-optimized gentle rocking
- Immunofluorescence slide washing and incubation
- Vigorous sample mixing, extraction, and resuspension at high speed and tilt
- Cold room protein incubations requiring gentle variable-speed rocking at +4°C
- Cell culture reagent mixing requiring non-foaming gentle wave motion
- Any platform rocking application requiring independent speed and tilt optimization
ORDERING INFORMATION — BENCHMARK SCIENTIFIC BENCHROCKER™ & BENCHBLOTTER™
| Cat # | Product | Speed | Tilt | Platform | Key Feature |
|---|---|---|---|---|---|
| BR2000 | BenchRocker™ 2D Rocker | Variable 2–30 RPM | Variable 0°–30° | 14" x 12" | Variable speed & tilt; brushless motor |
| BR3000 | BenchRocker™ 3D Rocker | Variable | Variable | 14" x 12" | 3D gyratory motion + 2D rocking |
| BR1000 | BenchBlotter™ Fixed Rocker | Fixed 12 RPM | Fixed ±8° | 12" x 12" | One-touch; optimized for blots/gels |
