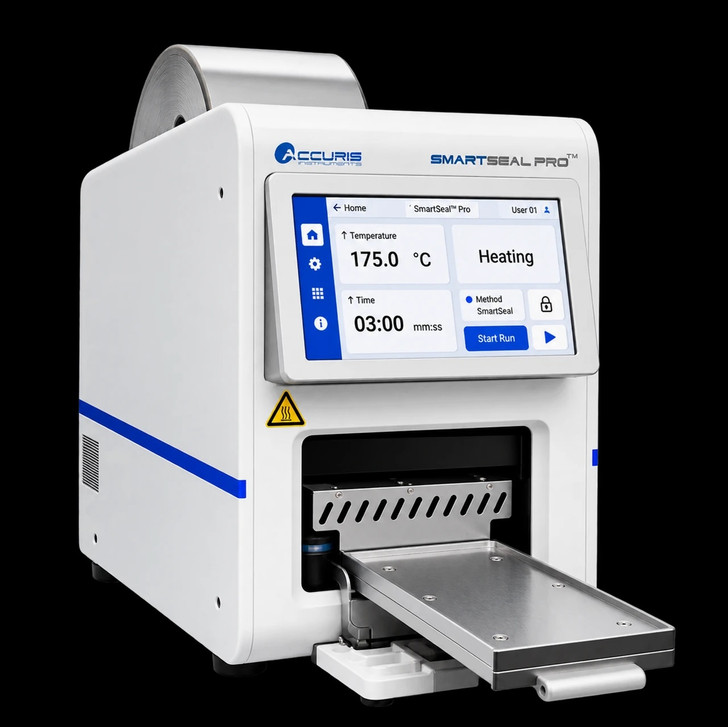

LIGHT LABS is excited to announce the addition of the Accuris SmartSeal Pro Automated Thermal Plate Sealer (MS2000) to our catalog — a fast, precise, and fully automated thermal plate sealing system from Accuris Instruments, a division of Benchmark Scientific. Designed for labs that need consistent, reproducible seals across a broad range of plate formats, the SmartSeal Pro delivers a complete seal in under 20 seconds with no external compressed air required.
Whether you're sealing PCR plates for qPCR runs, archiving deep-well plates for reagent storage, or running high-throughput assays that require pierceable seals for direct tip access, the SmartSeal Pro handles it all from a single platform.
Why the SmartSeal Pro?
Manual plate sealing is inconsistent. Seal quality depends on how evenly pressure is applied, how long the film is held down, and whether the temperature was correct for the film type — all variables that change between operators and between runs. The SmartSeal Pro eliminates that variability by automating the entire pull-seal-cut workflow, delivering the same quality seal every time with minimal operator input.
Key advantages:
- Seals in under 20 seconds — fast enough for high-throughput workflows without creating a bottleneck
- Automated roll-fed film — the system automatically pulls film over the plate, seals, and cuts, with no manual film handling between plates
- Built-in air source — no external compressed air line required; plug in and run
- Precise temperature control — 25-200°C range in 1°C increments, ±1°C accuracy, with a preheat time of 5 seconds or less
- 7-inch color touchscreen — intuitive parameter setting and real-time cycle monitoring
- USB and Ethernet connectivity — API available for integration into automated workflows
- Broad plate compatibility — ANSI/SBS standard plates from 3 mm to 62 mm height, including standard microplates, deep-well plates, and PCR plates
- 96-well PCR and deep-well plate adapters included — ready for the most common formats right out of the box
Three Sealing Films for Every Application
The SmartSeal Pro uses roll-fed thermal sealing materials, and three film types are available to match your application:
Easy-Peel Heat Seal (MS2085-200-FEP) — 85 µm foil with a durable barrier and clean, convenient removal. Ideal for reagent storage, deep-well plates, and low-temperature workflows where you want a secure seal that opens cleanly without tearing.
Pierceable Heat Seal (MS2035-200-FP) — 35 µm foil that allows direct pipette tip access without manually removing the seal first. The go-to choice for high-throughput workflows requiring rapid, repeated sample access and routine plate storage.
Clear qPCR Heat Seal (MS2050-200-QPCR) — 50 µm clear polymer film optimized for optical and fluorescence applications. Essential for PCR, qPCR, fluorescence, and colorimetric assays where the seal must remain in place during plate reading.
All three films are 80 mm wide and compatible with polypropylene plates across the SmartSeal Pro's full plate height range.
How It Works — Four Simple Steps
The SmartSeal Pro is designed for ease of use. The entire sealing process takes four operator steps:
- Set Parameters — Select sealing temperature and time on the touchscreen
- Start Cycle — Initiate the sealing cycle
- Automated Sealing — The system controls temperature, time, and pressure automatically; the film is pulled, sealed, and cut without operator involvement
- Retrieve Plate — Remove the sealed plate when the cycle is complete
Between cycles, the operator simply loads the next plate. No film handling, no manual pressure, no guesswork.
Applications
The SmartSeal Pro's combination of film options and broad plate compatibility makes it suitable for a wide range of workflows:
- qPCR — clear heat seal film for optical plate reading during and after thermocycling
- Fluorescence assays — optically clear seals maintain signal integrity
- Colorimetric applications — clear film compatible with absorbance plate readers
- Reagent storage — easy-peel or pierceable seals for deep-well plate archiving
- High-throughput sample access — pierceable film for repeated tip access without seal removal
- Manual and automated workflows — USB/Ethernet API enables integration with liquid handlers and robotic systems
Full Specifications
| Cat # | MS2000 (115V) / MS2000-E (230V) |
| Supported Plates | ANSI/SBS standard; 3-62 mm height |
| Supported Roll Width | 78-84 mm |
| Temperature Range | 25-200°C |
| Temperature Accuracy | ±1°C |
| Temperature Increment | 1°C |
| Preheat Time | 5 seconds or less |
| Cycle Time | Under 20 seconds/plate |
| Sealing Time | 0.5-9.9 seconds (0.1 second increments) |
| Air Source | Built-in |
| Display | 7-inch color touchscreen |
| Connections | USB, Ethernet (API available) |
| Power Input | AC 100-240 VAC, 50/60 Hz |
| Maximum Power | 300W |
| Dimensions (L x W x H) | 14.2 x 8.7 x 18 in. / 36 x 22 x 45.7 cm |
| Weight | 16 kg / 35.2 lbs |
Ordering Information
| MS2000 | SmartSeal Pro Automated Thermal Plate Sealer, 115V |
| MS2000-E | SmartSeal Pro Automated Thermal Plate Sealer, 230V |
| MS2000-A-384 | Optional Adapter for 384-Well PCR Plates |
| MS2035-200-FP | Foil Heat Seal, Pierceable, Cold Storage Compatible, 35 µm, 200 m |
| MS2085-200-FEP | Foil Heat Seal, Easy Peel, Cold Storage Compatible, 85 µm, 200 m |
| MS2050-200-QPCR | Clear Heat Seal for qPCR, 50 µm, 200 m |
Ready to upgrade your plate sealing workflow? Shop the Accuris SmartSeal Pro (MS2000) at LIGHT LABS, or contact us at sales@lightlabsusa.com or 1-800-286-3103 for more information.
