Product Description

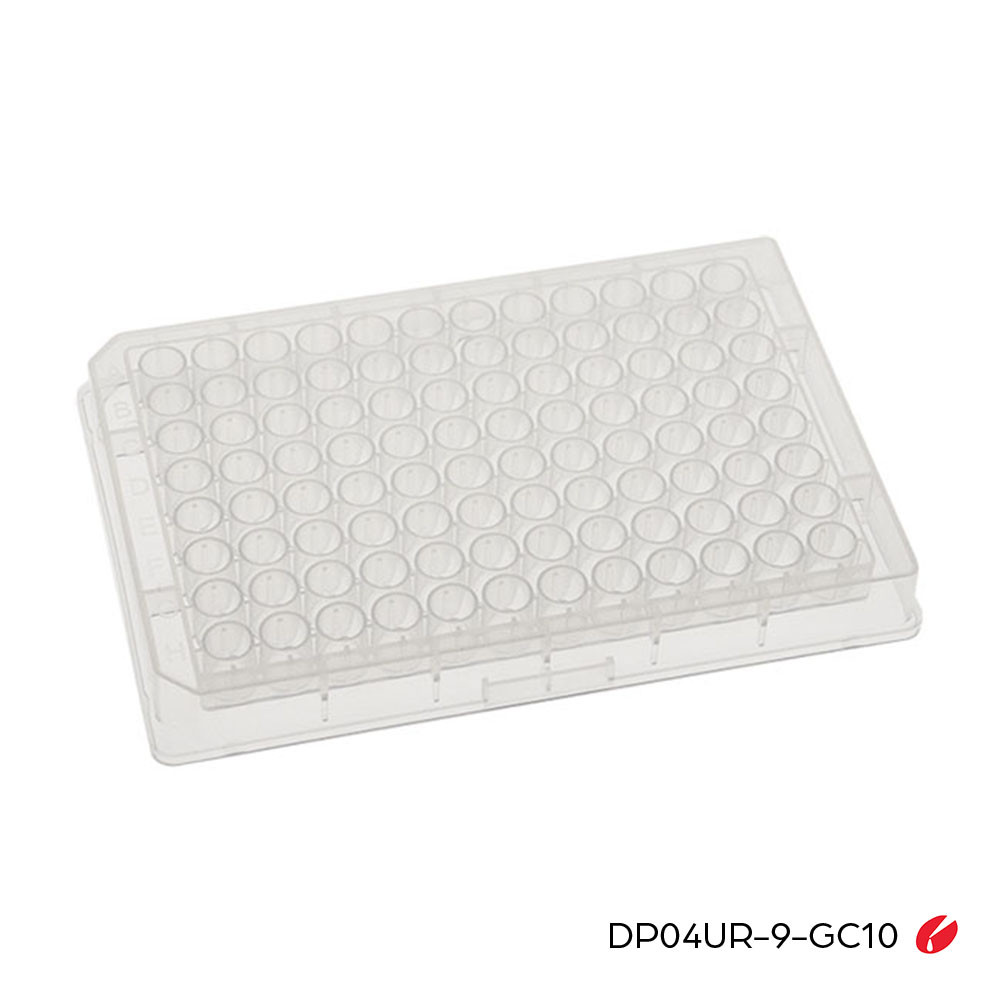

LIGHT LABS is proud to offer the MTC Bio ILP Glass Coated Multiwell Plate (Cat # DP04UR-9-GC10) — a 96-well round well U-bottom plate featuring the same proprietary SiO₂ (silicon dioxide) quartz glass-coated wells as the rest of the ILP Glass Coated Plate line, in the shallow U-bottom format with 14.75mm well height and 335 µL well volume. The DP04UR-9-GC10 occupies the space between the 500 µL DP35UR-9-GC10 and the 300 µL V-bottom DP36VR-9-GC10 in the shallow ILP Glass Coated Plate lineup — providing a 335 µL U-bottom format that is particularly well-suited for applications requiring a slightly larger working volume than the V-bottom format while retaining the gentle curved base of the U-bottom for even distribution of sample across the well floor.

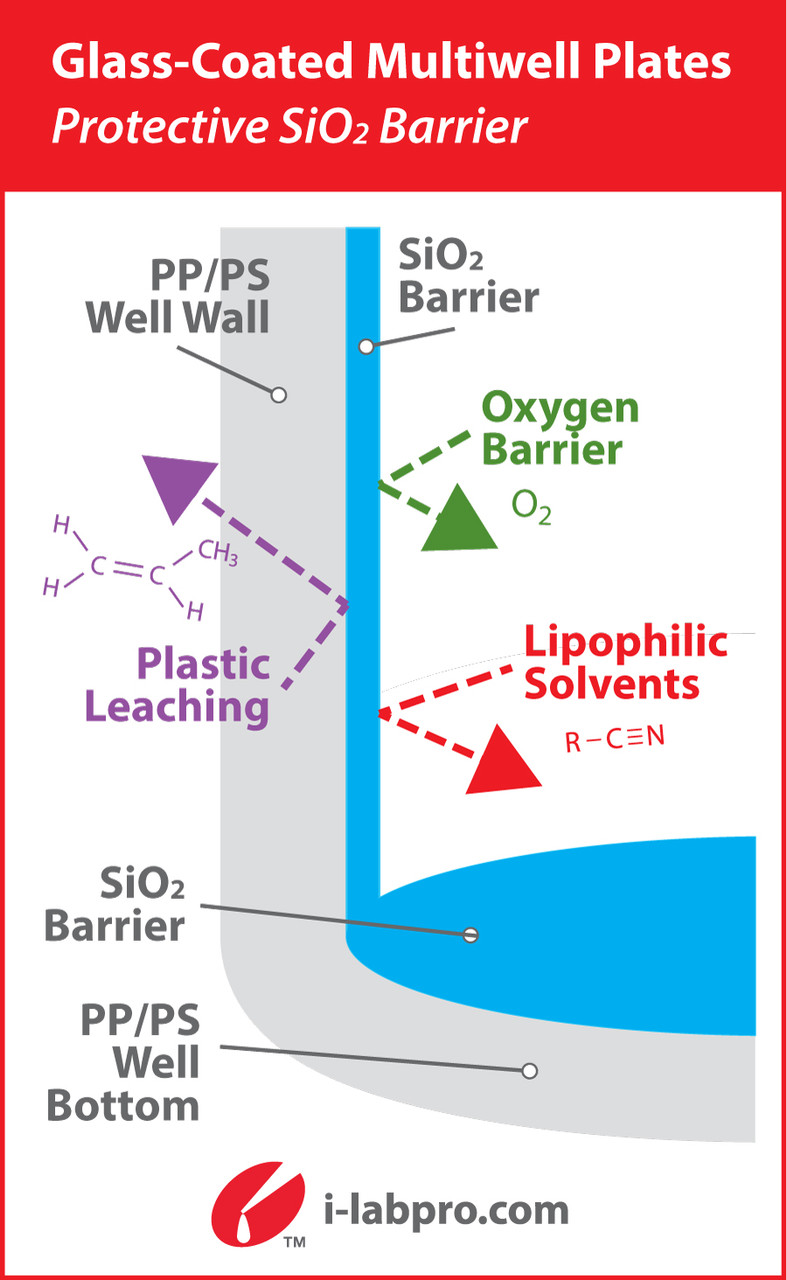

The U-bottom geometry of the DP04UR-9-GC10 provides a broad, gently curved well base that distributes liquid evenly across the well bottom — ideal for cell culture, mixing assays, absorbance-based plate reader measurements, and general sample storage where even sample distribution and optical consistency are more important than the sharp-point concentration of a V-bottom well. Like all ILP Glass Coated Plates, the SiO₂ glass coating creates a molecularly thin quartz glass barrier on the inner surface of each well — eliminating plastic leaching, reducing oxygen transmission, providing superior chemical resistance to organic solvents, and minimizing non-specific adsorption of lipophilic compounds, proteins, and analytes to the well surface. Automation compatible and thermally/chemically stable from -80°C to +80°C. LIGHT LABS is your trusted source for MTC Bio ILP Glass Coated Plates.
KEY FEATURES
- 96-well round well U-bottom format — 14.75mm well height, 335 µL well volume; gently curved base for even sample distribution across well floor
- Intermediate shallow U-bottom format — 335 µL capacity bridges the gap between the 300 µL V-bottom (DP36VR-9-GC10) and 500 µL U-bottom (DP35UR-9-GC10) formats
- Proprietary SiO₂ (silicon dioxide) quartz glass inner well coating — creates a molecularly thin glass barrier between sample and polypropylene well wall; glass-like surface properties in a plastic plate format
- Eliminates plastic leaching — SiO₂ barrier dramatically reduces extractables and leachables from polypropylene into sensitive samples
- Reduced oxygen transmission rate — glass coating reduces O₂ permeation through well walls; critical for oxygen-sensitive samples and compounds
- Superior chemical resistance — glass-like resistance to organic solvents and aggressive chemicals; ideal for chemical synthesis, extraction, and compound handling
- Improved sample recovery and consistency — reduces non-specific adsorption of lipophilic compounds, proteins, and analytes; more analyte remains in solution with less well-to-well variability
- Eliminates the need for glass inserts — glass-like sample contact in a standard SBS-format plate
- Automation compatible — fits all standard autosamplers, liquid handlers, and plate-handling instrumentation
- Thermally and chemically stable: -80°C to +80°C
- Packaged 10 plates per pack
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | DP04UR-9-GC10 |
| Brand | MTC Bio / ILP (Innovative Laboratory Products) |
| Product Name | ILP Glass Coated Multiwell Plate |
| Well Format | 96 Well, Round |
| Well Bottom | U-Bottom |
| Well Volume | 335 µL |
| Well Height | 14.75 mm |
| Well Coating | SiO₂ (silicon dioxide) quartz glass — inner well surface |
| Well Material | Polypropylene (outer) + SiO₂ glass coating (inner) |
| Temperature Range | -80°C to +80°C |
| Automation Compatible | Yes — fits standard autosamplers and liquid handlers |
| Plate Format | SBS standard footprint |
| Packaging | 10 plates/pack |
KEY ADVANTAGES OF SiO₂ GLASS COATING vs. STANDARD PP PLATES
| Challenge | Standard PP Plate | ILP Glass Coated Plate |
|---|---|---|
| Plastic Leaching | PP can release trace additives into samples | SiO₂ barrier eliminates contact between sample and polymer |
| Oxygen Transmission | O₂ permeates through PP walls | Glass coating reduces O₂ transmission rate |
| Lipophilic Adsorption | Compounds stick to PP surface, reducing recovery | Glass surface reduces non-specific adsorption |
| Chemical Resistance | Limited vs. organic solvents | Glass-like resistance to solvents and aggressive chemicals |
| Glass Inserts | Required for glass-like performance | Eliminated — glass coating achieves same result |
SHALLOW FORMAT COMPARISON — ILP GLASS COATED 96-WELL ROUND WELL PLATES
| Cat # | Bottom | Well Height | Well Volume | Best For |
|---|---|---|---|---|
| DP35UR-9-GC10 | U-Bottom | 14.40 mm | 500 µL | General storage, larger working volumes |
| DP04UR-9-GC10 | U-Bottom | 14.75 mm | 335 µL | Intermediate volume U-bottom workflows |
| DP36VR-9-GC10 | V-Bottom | 14.60 mm | 300 µL | Cell pelleting, precipitation, quantitative recovery |
APPLICATIONS
- Compound library storage at intermediate volumes requiring glass-like chemical resistance
- Chemical synthesis and extraction workflows with 335 µL scale reactions
- Sample preparation for LC-MS/MS and analytical techniques requiring low background and even sample distribution
- Absorbance-based plate reader measurements benefiting from U-bottom optical consistency
- Storage of oxygen-sensitive compounds requiring reduced O₂ transmission
- Bioanalytical workflows where PP extractables interfere with sensitive detection
- General sample storage and mixing assays requiring glass-like surface inertness
- Any 96-well round well U-bottom application at 335 µL scale requiring glass-like well surface properties
ORDERING INFORMATION — MTC BIO ILP GLASS COATED MULTIWELL PLATES
96 Round Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP04UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 14.75 mm | 335 µL | 10 |
| DP35UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 14.40 mm | 500 µL | 10 |
| DP36VR-9-GC10 | Glass Coated Plate, 96 Round Well | V-Bottom | 14.60 mm | 300 µL | 10 |
| DP12UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 31.50 mm | 1.1 mL | 10 |
| DP10UR-9-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 33.00 mm | 1.1 mL | 10 |
| DP11VR-9-GC10 | Glass Coated Plate, 96 Round Well | V-Bottom | 33.00 mm | 1.1 mL | 10 |
| DP1M-RD-96-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 42.50 mm | 1.2 mL | 10 |
| DP2M-RD-96-GC10 | Glass Coated Plate, 96 Round Well | U-Bottom | 45.30 mm | 2.0 mL | 10 |
96 Square Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP21US-9-GC10 | Glass Coated Plate, 96 Square Well | U-Bottom | 41.60 mm | 2.0 mL | 10 |
| DP22VS-9-GC10 | Glass Coated Plate, 96 Square Well | V-Bottom | 41.20 mm | 2.2 mL | 10 |
384 Square Well Plates — SiO₂ Glass Coated
| Cat # | Description | Bottom | Well Height | Well Volume | Qty/Pack |
|---|---|---|---|---|---|
| DP120-SQ-384-GC10 | Glass Coated Plate, 384 Square Well | U-Bottom | 14.40 mm | 120 µL | 10 |
| DP24VS-384-GC10 | Glass Coated Plate, 384 Square Well | V-Bottom | 24.90 mm | 200 µL | 10 |
