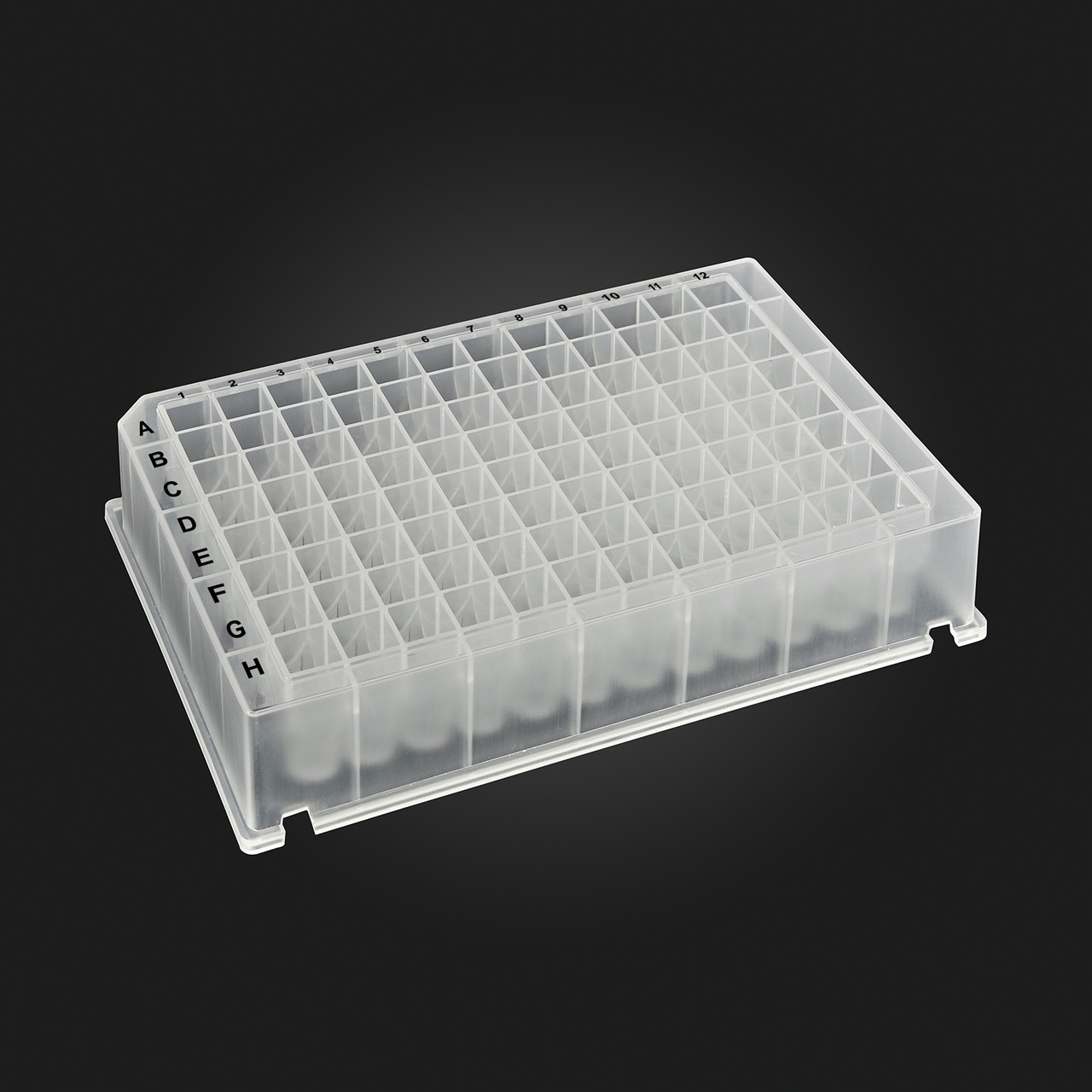

MTC Bio OptiWell™ D3096-19 | 96-Well Deep Well Plate, Square V-Bottom, 1.0mL, Non-Sterile — 100/Case (10 Bags of 10)

The MTC Bio OptiWell™ D3096-19 is a 96-well deep well plate with square V-bottom wells and 1.0mL capacity per well — non-sterile, virgin medical-grade polypropylene, black printed alpha-numerics, minimal binding and liquid retention, compatible with all popular automated research platforms and robotic equipment. OptiWell plates come in 24, 48, 96, or 384 format for virtually every research lab, HTS application, and automated/robotic platform. These plates are useful for bacterial cultures, centrifugation (up to 4,000 × g) and general sample storage. Plates are produced and packaged in a Class 100,000 clean room and are ANSI/SLAS 1-2004 compliant. All plates are certified non-pyrogenic and RNase/DNase free. Case of 100 plates — 10 bags of 10 plates each. The sterile version is available as D3096-19S.

D3096-19 vs. D3096-19S — Non-Sterile vs. Sterile: Choosing the Right Format The D3096-19 and D3096-19S are identical OptiWell™ 96-well square V-bottom 1.0mL deep well plates — sterility is the sole difference:

The D3096-19 non-sterile format is the correct choice for labs that do not require validated sterility — including compound library management at 1.0mL scale, general sample storage, non-sterile automated liquid handling reformatting, and any 1.0mL square V-bottom application where plate contents do not require a sterile vessel. For bacterial culture and sterile cell-based assays where sterility is required, the D3096-19S sterile format is the appropriate choice.

D3096-19 vs. D3096-09 — Square V-Bottom Non-Sterile at 1.0mL vs. 0.5mL:

D3096-19 vs. D3096-15 — Square V-Bottom vs. Round U-Bottom Non-Sterile at 1.0mL: Both are non-sterile 96-well 1.0mL deep well plates — the well shape and bottom geometry are the key differentiators:

Square V-Bottom Wells — Maximum Sample Recovery at 1.0mL for Non-Sterile Workflows The square V-bottom well geometry of the D3096-19 concentrates sample, beads, or pellets to the absolute lowest point of each well for complete recovery by pipette tip or robotic probe — while the square cross-section delivers the maximum volume capacity within the ANSI/SLAS standard 96-well footprint. For non-sterile compound cherry-picking at 1.0mL scale, non-sterile bead-based assay preparation requiring complete bead recovery, sample reformatting, and any non-sterile application requiring the combination of maximum sample recovery and 1.0mL square well volume, the D3096-19 provides the optimal combination of geometry and cost efficiency.

100 Plates Per Case — Maximum Supply Efficiency Case of 100 plates — 10 bags of 10 plates each. Like the sterile D3096-19S, the D3096-19 offers 100 plates per case — double the 50/case format of many other deep well plates in the lineup. This larger case quantity provides significant per-plate cost savings for high-throughput labs consuming non-sterile 1.0mL square V-bottom plates in large quantities — and as the non-sterile format, the D3096-19 delivers the lowest per-plate cost in the 1.0mL square V-bottom format.

D3096-19 in the Full OptiWell™ 96-Well Deep Well Family:

Automated Platform Compatibility — ANSI/SLAS 1-2004 Standard For automated research platforms and robotic equipment. The D3096-19 conforms to ANSI/SLAS 1-2004 standard 96-well microplate footprint dimensions — ensuring compatibility with all major automated liquid handling platforms including Hamilton, Tecan, Beckman Coulter, PerkinElmer, Agilent, and other standard HTS robotic systems.

4,000 × g Centrifugation Rating Centrifugation up to 4,000 × g — covering all standard plate centrifugation protocols for cell pelleting, bead collection, and sample concentration at 1.0mL scale.

Virgin Medical-Grade Polypropylene — Minimal Binding and Liquid Retention Minimal binding / liquid retention. Virgin, medical-grade polypropylene. Certified RNase/DNase free and non-pyrogenic — the non-sterile designation refers only to the absence of gamma irradiation sterilization, not to the purity of the polypropylene resin.

Black Printed Alpha-Numerics — Instant Well Identification Black printed alpha-numerics. Molded black alpha-numeric well identification (A through H rows, 1 through 12 columns).

Class 100,000 Cleanroom Production — Certified Purity Plates are produced and packaged in a Class 100,000 clean room. Certified non-pyrogenic and RNase/DNase free — maintaining molecular biology grade purity standards despite the non-sterile designation.

Compatible Replacement — Cross-Reference Guide

The MTC Bio OptiWell™ D3096-19 is a direct compatible replacement for non-sterile 96-well square V-bottom 1.0mL deep well plates from several major manufacturers:

• Thermo Fisher AB-0932 — Thermo Scientific 96-well square V-bottom deep well plate, 1.0mL, non-sterile
• Corning® Axygen® P-DW-11-C — Axygen 96-well square V-bottom deep well plate, 1.0mL, non-sterile
• Greiner Bio-One 786201 — 96-well deep well plate, square V-bottom, 1.0mL, non-sterile
• Eppendorf® 0030501012 — Eppendorf 96-well deepwell plate, square V-bottom, 1.0mL, non-sterile

Competitor brand names and catalog numbers are referenced for cross-referencing purposes only. Compatibility should be verified for your specific application and protocol.

Key Features

• MTC Bio OptiWell™ — Catalog # D3096-19
• 96-well deep well plate — square V-bottom wells
• 1.0mL per-well capacity
• Square V-bottom — maximum sample recovery at 1.0mL scale
• Non-sterile — lowest per-plate cost in the 1.0mL square V-bottom format
• 100 plates per case — maximum supply efficiency at lowest per-plate cost
• Virgin medical-grade polypropylene — minimal binding and liquid retention
• Black printed alpha-numerics — instant well identification
• ANSI/SLAS 1-2004 compliant — compatible with all standard automated liquid handling platforms
• 4,000 × g centrifugation rating
• Compatible with silicone sealing mats and sealing film
• No lid, no skirt
• Autoclavable — can be sterilized before use if required
• Class 100,000 cleanroom production
• Certified RNase-free and DNase-free
• Certified non-pyrogenic
• Sterile version: D3096-19S
• Case of 100 plates — 10 bags of 10 plates

Supported Applications Compound cherry-picking and reformatting at 1.0mL scale with complete well recovery, non-sterile bead-based assay preparation requiring V-bottom geometry, compound library storage and management, automated liquid handling sample reformatting, non-sterile magnetic bead workflows at 1.0mL scale, centrifugation workflows up to 4,000 × g, general sample storage and archiving, HPLC sample preparation, serial dilution series, and any 96-well application requiring non-sterile square V-bottom deep well format with 1.0mL per-well capacity and full automated platform compatibility.

Technical Specifications
