Product Description
In a rack four boxes deep, the back box is usually the hardest to reach. The Crystal Technology & Industries UFD-442 Upright Freezer Drawer Rack solves that with four full-length pull-out drawers. Each one brings all four boxes in its row forward at once, so you can grab any sample in seconds. The rack holds sixteen standard 2" freezer boxes, four boxes deep by four boxes high, and its 22 5/16" depth makes full use of deep upright freezer shelves.
The UFD-442 is built from pharmaceutical-grade stainless steel with double welds for lasting strength and rigidity at -80°C, even fully loaded. All edges are smoothed for safe, comfortable handling with cryo gloves. The compartments fit standard 2" cardboard, fiberboard, and polycarbonate freezer boxes. At 9 7/16" tall, the UFD-442 suits mid-height upright freezer shelves, and Crystal also lists it for chest freezer box storage.
For deep freezers where reaching the back of a rack is a daily frustration, the UFD-442 is a practical upgrade. Order it with the rest of the Crystal 4-deep drawer rack line from LIGHT LABS.
Key Features
- Full-depth pull-out drawers – Bring all four boxes in a row forward without removing the rack
- Holds 16 standard 2" boxes – 4 boxes deep x 4 boxes high
- Pharmaceutical-grade stainless steel – Corrosion-resistant and durable at ultra-low temperatures
- Double-welded construction – Stays rigid even when fully loaded
- Smoothed edges – Safer, more comfortable handling
- 22 5/16" depth – Makes full use of deep upright freezer shelves
- Fits standard 2" boxes – Cardboard, fiberboard, and polycarbonate freezer boxes
- Upright or chest freezers – Listed by Crystal for both upright and chest freezer box storage
Specifications
| Catalog Number | UFD-442 |
| Brand | Crystal Technology & Industries |
| Rack Type | Upright freezer drawer rack |
| Box Size | Standard 2" boxes |
| Configuration | 4 boxes deep x 4 boxes high |
| Total Capacity | 16 boxes |
| Material | Pharmaceutical-grade stainless steel, double welded |
| Overall Dimensions (W x D x H) | 5 1/2 x 22 5/16 x 9 7/16 in (140 x 566 x 240 mm) |
| Compartment Dimensions (W x D x H) | 5 1/4 x 5 3/8 x 2 1/8 in (133 x 137.4 x 54.4 mm) |
| Freezer Type | Upright or chest freezers |
| Boxes Included | No, rack only |
Choose by Configuration – 4-Deep Drawer Racks for 2" Boxes
- UFD-432 – 4 deep x 3 high, 12 boxes
- UFD-442 – 4 deep x 4 high, 16 boxes

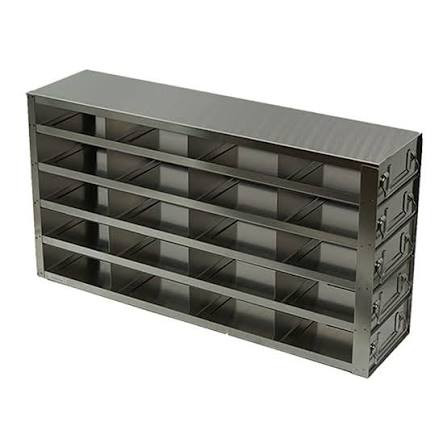

- UFD-452 – 4 deep x 5 high, 20 boxes

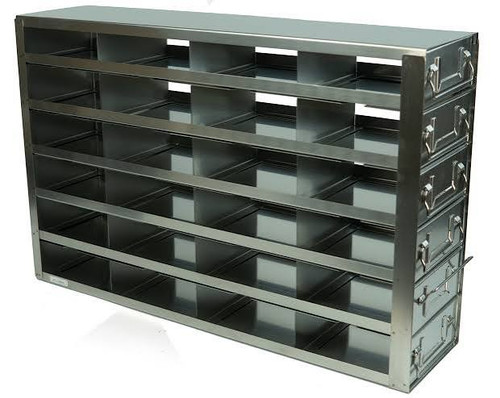

- UFD-462 – 4 deep x 6 high, 24 boxes (ideal for cardboard boxes)
- UFD-472 – 4 deep x 7 high, 28 boxes
Need a Shallower Rack?
- UFD-342 – 3 deep x 4 high, 12 boxes, for shallower freezer shelves
Drawer Rack or Side-Access Rack?
- Drawer Rack (UFD Series) – Pull out one drawer to see and reach every box in that row. Best for frequently accessed samples and for reaching boxes at the back of deep racks.
- Side-Access Rack (UF-442) – Boxes slide in and out of open compartments from the side. Best for maximum capacity and lowest cost per box position.
Applications
- Sample storage in -80°C and -20°C upright and chest freezers
- Biobanking and specimen inventory management
- Storage of cryovials, microtubes, and aliquots in 2" boxes
- Organizing deep freezer shelves
- Clinical, research, and pharmaceutical laboratories
