Product Description

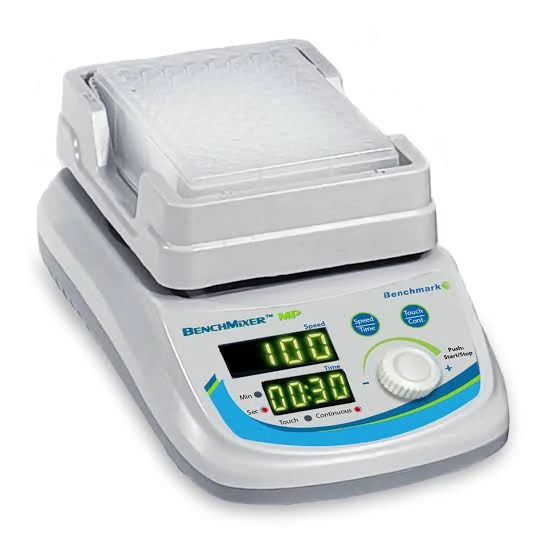

LIGHT LABS is proud to offer the Benchmark Scientific BenchMixer™ MP Vortex Mixer (Cat # BV1007) — the most comprehensively capable and all-in-one vortex mixing solution in the Benchmark Scientific lineup, specifically designed to provide thorough mixing across the widest possible range of commonly used laboratory sample vessels — from standard microplates (deep well, PCR, ELISA, and other formats) through 50 mL conical tubes, all the way down to individual tube vortexing in traditional touch mode. The BV1007 is delivered as a complete package — all necessary holders, foam inserts, and cup head attachments are included in the box — making it the only Benchmark Scientific vortex mixer that is fully equipped for microplate AND multi-tube AND single-tube touch vortexing from day one, without purchasing any additional accessories.
The defining innovation of the BV1007 vs. all other BenchMixer models is its automatic holder recognition function — a built-in sensor system that detects which sample holder is installed on the platform and automatically adjusts the maximum speed setting accordingly. This critical safety and performance feature ensures that the appropriate maximum vortexing speed for the specific holder and vessel format in use is never exceeded — preventing excessive speeds that could damage microplates, spill samples, or create safety hazards during high-speed vortexing of different vessel formats. The system eliminates the need for manual speed adjustment when switching between holders, and ensures optimized performance for each vessel type without guesswork.
The BV1007 is also the only BenchMixer model to include a built-in programmable digital timer — adjustable from 1 second to 999 minutes — enabling precisely timed vortexing steps to be set and walked away from with confidence. The timer combined with continuous operating mode transforms the BV1007 into a fully automated, hands-free vortexer for timed protocol steps in extraction, lysis, incubation, and mixing workflows. The compact 8.9" x 5.3" footprint is wider than the other BenchMixer models to accommodate the microplate holder, but at only 2.2" height the BV1007 fits easily under standard laboratory equipment and inside incubators. 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Accepts wide range of microplates — deep well, PCR, ELISA, standard 96-well, and other microplate formats; the only BenchMixer that vortexes microplates
- Automatic holder recognition function — built-in sensor detects installed holder and automatically adjusts maximum speed setting; no manual adjustment needed when switching between vessel formats
- Programmable digital timer — 1 second to 999 minutes; enables precisely timed, hands-free vortexing steps; the only BenchMixer with built-in timer
- Converts to traditional touch mode vortexer — included cup head attachment converts BV1007 to standard pressure-activated touch vortexer for single-tube vortexing

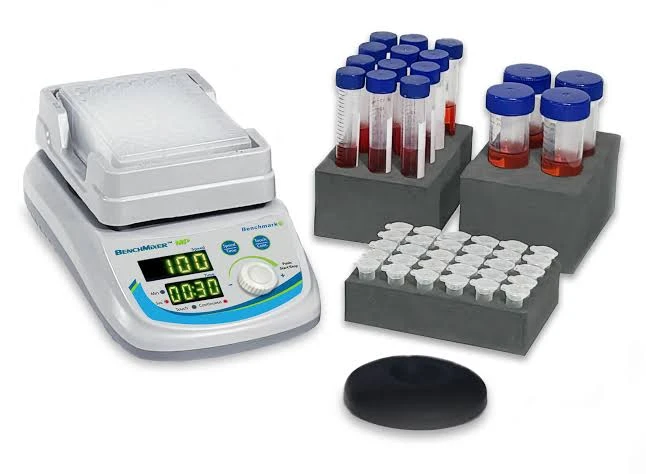

- Complete accessory package included — all accessories in the box: cup head, plate holder, foam inserts for 30 x 1.5/2.0 mL tubes, 12 x 15 mL tubes, and 4 x 50 mL tubes
- Variable speed 200–3000 RPM — dial-controlled speed for gentle agitation through powerful vortexing
- Touch AND Continuous operating modes — pressure-activated touch mode and sustained continuous mode
- 3mm orbital movement — efficient orbital mixing across all vessel formats
- Low-profile design: 2.2" height — fits under standard lab equipment and inside incubators
- Strong suction cup feet — conserves bench space; maintains stability during mixing
- Cold room and incubator compatible — +4°C to +65°C operating temperature range
- Optional additional foam inserts available — 70 x 0.5 mL (BV1007-T05), 16 x 5–7 mL (BV1007-T57), and others
- Electrical: 115V AC, 60 Hz, 1.5A
- Weight: 8.8 lbs (4 kg)
- 2-year warranty
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | BV1007 |
| Brand | Benchmark Scientific |
| Product Name | BenchMixer™ MP Vortex Mixer |
| Speed Range | 200–3000 RPM (variable) |
| Speed Control | Variable — dial controlled |
| Orbital Movement | 3 mm |
| Operating Modes | Touch AND Continuous |
| Timer | Yes — programmable, 1 sec to 999 minutes |
| Auto Recognition | Yes — detects installed holder; auto-adjusts max speed |
| Microplate Compatible | Yes — deep well, PCR, ELISA, and wide range of microplate formats |
| Suction Feet | Yes — strong suction cup feet |
| Cold Room/Incubator Compatible | Yes — +4°C to +65°C |
| Height | 2.2" (5.5 cm) — low-profile design |
| Dimensions (W x D x H) | 8.9" x 5.3" x 2.2" (22.6 x 13.4 x 5.5 cm) |
| Weight | 8.8 lbs (4 kg) |
| Electrical | 115V AC, 60 Hz, 1.5A |
| Operating Temperature | +4°C to +65°C |
| Warranty | 2 years |
INCLUDED ACCESSORIES
| Item | Cat # | Description |
|---|---|---|
| BenchMixer MP Unit | BV1007 | Base unit with digital timer and auto-recognition |
| Cup Head Attachment | BV1007-HEAD | Converts to traditional touch mode vortexer |
| Plate Holder Attachment | BV1007-HOLDER | Accepts deep well, PCR, ELISA, and standard microplates |
| Foam Insert — Tubes | BV1007-T1520 | 30 x 1.5/2.0 mL microcentrifuge tubes |
| Foam Insert — Tubes | BV1007-T15 | 12 x 15 mL conical tubes |
| Foam Insert — Tubes | BV1007-T50 | 4 x 50 mL conical tubes |
OPTIONAL ACCESSORIES (SOLD SEPARATELY)
| Cat # | Description |
|---|---|
| BV1007-T05 | Foam Insert for 70 x 0.5 mL tubes |
| BV1007-T57 | Foam Insert for 16 x 5–7 mL tubes |
COMPLETE BENCHMIXER™ LINEUP COMPARISON
| Feature | MP BV1007 | Mortexer™ BV1005 | V2 BV1003 | BV1000 | Vornado™ BV101 |
|---|---|---|---|---|---|
| Microplate Vortexing | ✓ Yes | No | No | No | No |
| Programmable Timer | ✓ Yes | No | No | No | No |
| Auto-Recognition | ✓ Yes | No | No | No | No |
| Top Speed | 3000 RPM | 3400 RPM | 3200 RPM | 3200 RPM | Fixed 2800 RPM |
| Head Type | Plate + tube inserts + cup | Multi-Head (8 tubes) | Reversible | Standard cup | Fixed cup |
| All Accessories Included | ✓ Yes | No | No | No | No |
| Best For | Microplate + tube vortexing; timed protocols | High-throughput multi-tube | Dual surface flexibility | Standard variable speed | Quick single-tube |
APPLICATIONS
- Microplate vortexing — deep well plates, PCR plates, ELISA plates, standard 96-well plates
- Cell-based assay mixing in 96-well and deep well plates
- Timed extraction and lysis protocols requiring precise timer-controlled vortexing
- Simultaneous vortexing of up to 30 x 1.5/2.0 mL, 12 x 15 mL, or 4 x 50 mL tubes
- Traditional single-tube touch vortexing using included cup head attachment
- Temperature-controlled microplate and tube vortexing in incubators and cold rooms
- High-throughput molecular biology, cell biology, and biochemistry workflows requiring both plate and tube vortexing in one instrument
- Any laboratory application requiring the most complete and versatile all-in-one vortex mixing solution
ORDERING INFORMATION — BENCHMARK SCIENTIFIC VORTEX MIXERS
| Cat # | Product | Top Speed | Key Feature |
|---|---|---|---|
| BV1007 | BenchMixer™ MP | 200–3000 RPM | Microplates + tubes + timer + auto-recognition; all accessories included |
| BV1005 | Mortexer™ | 200–3400 RPM | Multi-Head — cup + 8 microtubes simultaneously |
| BV1003 | BenchMixer™ V2 | 200–3200 RPM | Reversible cup/flat dimpled head |
| BV1000 | BenchMixer™ | 200–3200 RPM | Standard cup; wide accessory range |
| BV101 | Vornado™ — Gray | Fixed 2800 RPM | Ultra-compact Insta-Touch |
| BV101-B | Vornado™ — Blue | Fixed 2800 RPM | Color-coded blue |
| BV101-G | Vornado™ — Green | Fixed 2800 RPM | Color-coded green |
| BV101-P | Vornado™ — Purple | Fixed 2800 RPM | Color-coded purple |
| BV101-R | Vornado™ — Red | Fixed 2800 RPM | Color-coded red |
