Product Description
LIGHT LABS is proud to offer the Benchmark Scientific RotoBot™ Programmable Rotator (Cat # R4045) — the full-size, high-capacity format of the RotoBot™ series, delivering the same advanced programming capabilities and 10+ operating modes as the compact R4040 Mini in a wider platform that accommodates significantly larger tube loads simultaneously. The R4045 is the preferred choice for higher-throughput laboratories, core facilities, and research groups processing larger numbers of samples per batch — where the mini R4040 would require multiple loading cycles to process the same batch that the R4045 handles in a single run.
The R4045 delivers exactly the same extraordinary programming flexibility as the R4040 Mini — the same variable speed range of 1 to 80 RPM, the same 10+ operating modes including full 360° rotation, pause, oscillating/mixing, reversing, vibrating, and platform rocking, and the same two powerful C1 and C2 Custom Modes that allow users to program sequential combinations of any available actions in user-defined succession for nearly infinite automated mixing protocol flexibility. The timer provides up to 99 hours and 59 minutes of unattended operation — enabling fully automated multi-step mixing protocols of virtually any duration. The only meaningful difference between the R4045 and the R4040 Mini is the platform size and resulting tube capacity: the R4045's wider 16.1" platform accommodates up to 84 x 1.5 mL tubes, 22 x 15 mL tubes, or 12 x 50 mL tubes simultaneously — approximately 40% more capacity than the Mini across all tube formats.
The R4045 includes a starter set of tube holders: 2 packs of 15 x 1.5 mL holders, 2 packs of 4 x 15 mL holders, and 2 packs of 6 x 50 mL holders — providing immediate out-of-the-box capacity for all three standard tube sizes. Additional holders of the same sizes are available as accessories to reach maximum platform capacity. Horizontal holders for Western blotting and hybridization are also available separately. Cold room and incubator compatible (+2°C to +70°C). Universal voltage (100–240V). 2-year warranty. LIGHT LABS is your trusted source for Benchmark Scientific laboratory equipment.
KEY FEATURES
- Full-size high-capacity platform — wider 16.1" platform vs. 11.4" Mini R4040; approximately 40% more tube capacity across all formats simultaneously
- Maximum capacity: 84 x 1.5 mL, 22 x 15 mL, or 12 x 50 mL — highest simultaneous tube load in the RotoBot™ series; ideal for high-throughput labs and core facilities
- 10+ programmable operating modes — identical to R4040 Mini; modes include full 360° rotation, pause intervals, oscillating/mixing, reversing, vibrating, rocking, and more
- C1 and C2 Custom Modes — program sequential combinations of any available modes; nearly infinite automated mixing protocol flexibility
- Variable speed: 1–80 RPM — precisely match rotation speed to protocol requirements
- Programmable timer: 1 second to 99 hours 59 minutes / Continuous — true walk-away unattended operation
- Cold room and incubator safe — +2°C to +70°C; broadest thermal range of any Benchmark Scientific rotator
- Tube holder starter set included — 2 packs of 15 x 1.5 mL, 2 packs of 4 x 15 mL, 2 packs of 6 x 50 mL
- Horizontal holders available separately — Western blotting, hybridization
- Optional rocking platform with rubber mat — converts to platform rocker in Rock/PP mode
- Sliding attachment system — quick and easy tube holder changes
- Digital LED display — clear speed, mode, and timer readout
- Universal voltage: 100–240V, 50–60 Hz; 3A
- Weight: 5 lbs (2.27 kg)
- 2-year warranty
- Made by Benchmark Scientific
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | R4045 |
| Brand | Benchmark Scientific |
| Product Name | RotoBot™ Programmable Rotator |
| Speed Range | Variable 1–80 RPM |
| Operating Modes | 10+ modes including Rotate, Pause, Mix/Oscillate, Reverse, Vibrate, Rock; C1 & C2 Custom Mode sequences |
| Timer | 1 second to 99 hr 59 min / Continuous |
| Max Capacity | 84 x 1.5 mL; 22 x 15 mL; 12 x 50 mL |
| Included Tube Holders | 2 packs of 15 x 1.5 mL; 2 packs of 4 x 15 mL; 2 packs of 6 x 50 mL |
| Horizontal Holders | Available separately — Western blotting, hybridization |
| Optional Rocking Platform | Yes — rubber mat (sold separately) for Rock/PP mode |
| Operating Temperature | +2°C to +70°C |
| Display | Digital LED |
| Dimensions (W x D x H) | 16.1" x 5.4" x 7.8" (41 x 13.7 x 19.9 cm) |
| Weight | 5 lbs (2.27 kg) |
| Electrical | Universal voltage 100–240V, 50–60 Hz; 3A |
| Warranty | 2 years |
ROTOBOT™ OPERATING MODES — OVERVIEW
| Mode | Action | Best For |
|---|---|---|
| Full 360° Rotation | Continuous end-over-end rotation at set speed | Standard rotation mixing; bead assays; resuspension |
| Pause Mode | Rotation with programmable intermittent stops | Sedimentation-based binding; partial settling protocols |
| Mix/Oscillate Mode | Rotation combined with oscillating intervals | High-viscosity samples; vigorous mixing needs |
| Reverse Mode | Alternating forward/reverse rotation | Prevents tube contents from settling at one end |
| Vibrate Mode | High-frequency vibrating action | Rapid resuspension; vigorous agitation |
| Rock/PP Mode | Platform rocking (see-saw) with optional mat | Gentle rocking; Western blot incubations |
| C1 Custom Mode | User-programmed sequence of actions | Multi-step automated mixing protocols |
| C2 Custom Mode | Second user-programmed sequence | Second custom protocol; near-infinite flexibility |

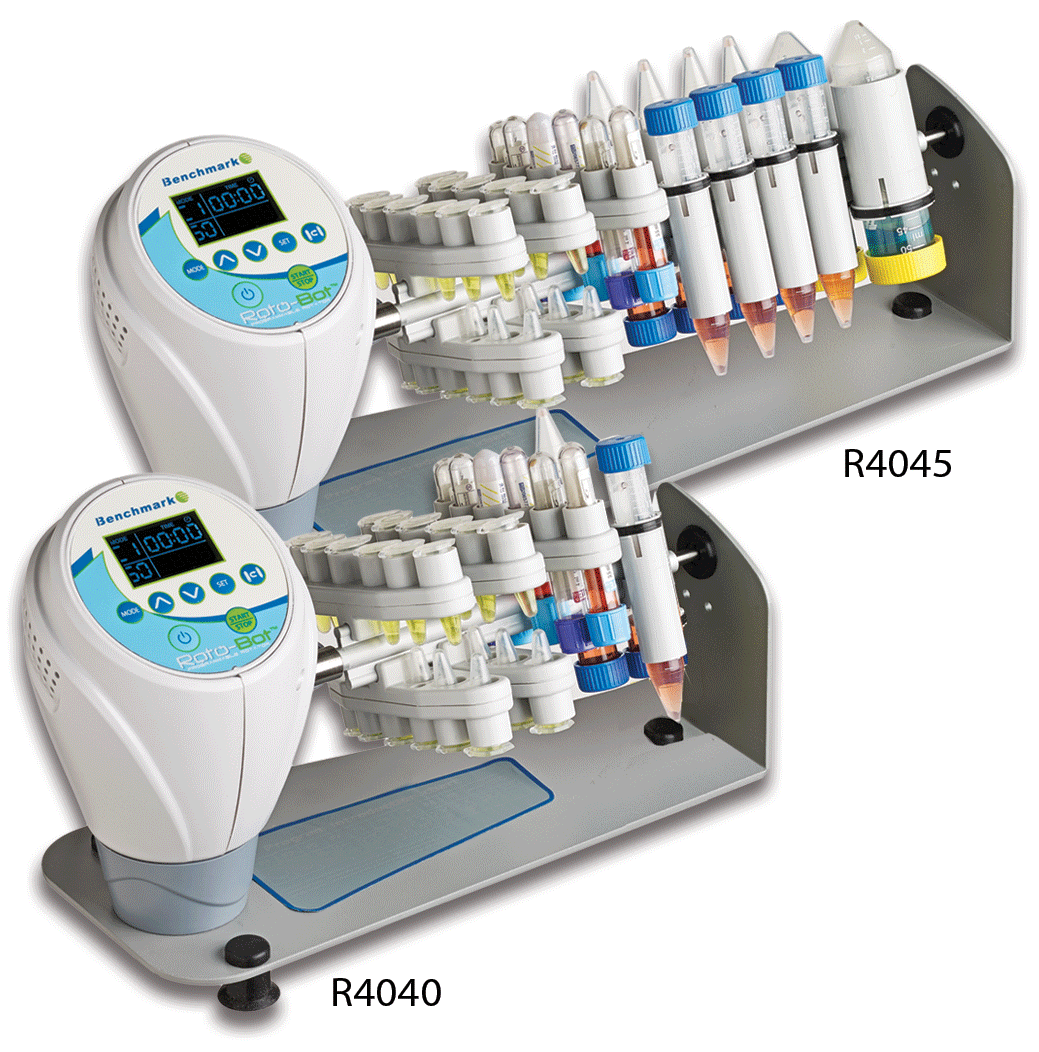

R4045 ROTOBOT™ vs. R4040 ROTOBOT™ MINI — KEY DIFFERENCE
| Feature | RotoBot™ R4045 | RotoBot™ Mini R4040 |
|---|---|---|
| Platform | Full-size — wider | Mini — compact |
| Max Capacity (1.5 mL) | 84 tubes | 60 tubes |
| Max Capacity (15 mL) | 22 tubes | 10 tubes |
| Max Capacity (50 mL) | 12 tubes | 6 tubes |
| Dimensions | 16.1" x 5.4" x 7.8" | 11.4" x 5.4" x 7.8" |
| Weight | 5 lbs (2.27 kg) | 4 lbs (1.8 kg) |
| Programming | Identical — 10+ modes + C1/C2 | Identical — 10+ modes + C1/C2 |
| Best For | High-throughput; larger batches; core facilities | Smaller labs; moderate throughput |
APPLICATIONS
- High-throughput bead-based assay incubations requiring programmed rotation + pause + mix cycles
- Large-batch nucleic acid purification with custom multi-step rotation/mixing programs
- Core facility protein binding assays with precise speed and mode control for large sample numbers
- High-volume Western blotting incubations with horizontal holders
- Large-scale hybridization incubations
- High-throughput cell resuspension with reverse mode
- Long-duration automated batch mixing protocols using C1/C2 Custom Modes
- Any high-throughput laboratory application requiring the most advanced programmable tube rotation with maximum simultaneous tube capacity
ORDERING INFORMATION — BENCHMARK SCIENTIFIC ROTOBOT™ PROGRAMMABLE ROTATORS
| Cat # | Product | Max Capacity | Dimensions | Weight |
|---|---|---|---|---|
| R4045 | RotoBot™ Programmable Rotator (full-size) | 84 x 1.5 mL; 22 x 15 mL; 12 x 50 mL | 16.1" x 5.4" x 7.8" | 5 lbs |
| R4040 | RotoBot™ Mini Programmable Rotator | 60 x 1.5 mL; 10 x 15 mL; 6 x 50 mL | 11.4" x 5.4" x 7.8" | 4 lbs |
