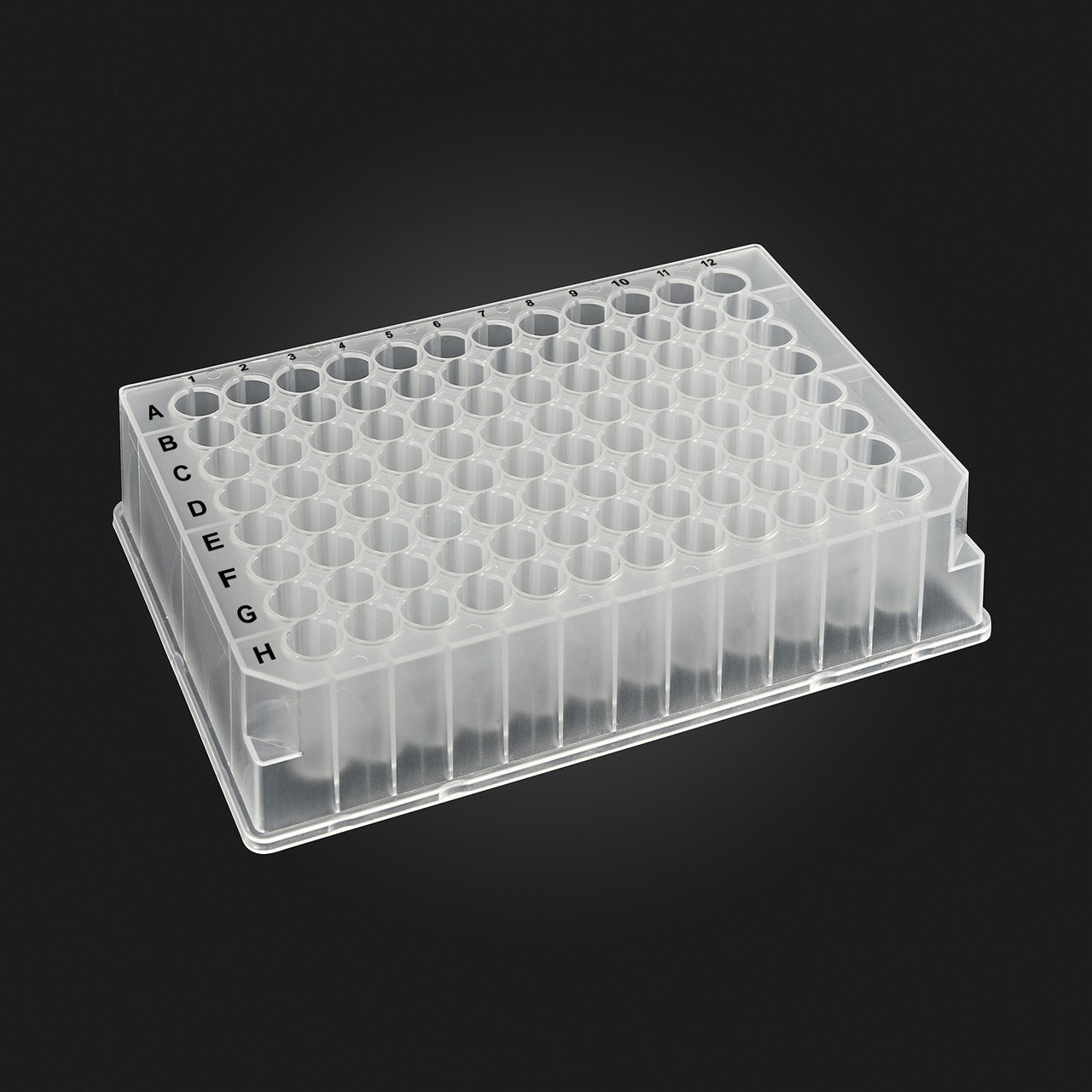

MTC Bio OptiWell™ D3096-23 | 96-Well Deep Well Plate, Round V-Bottom, 1.1mL, Non-Sterile — 50/Case (10 Bags of 5)

The MTC Bio OptiWell™ D3096-23 is a 96-well deep well plate with round V-bottom wells and 1.1mL capacity per well — non-sterile, virgin medical-grade polypropylene, black printed alpha-numerics, minimal binding and liquid retention, compatible with all popular automated research platforms and robotic equipment. OptiWell plates come in 24, 48, 96, or 384 format for virtually every research lab, HTS application, and automated/robotic platform. These plates are useful for bacterial cultures, centrifugation (up to 4,000 × g) and general sample storage. Plates are produced and packaged in a Class 100,000 clean room and are ANSI/SLAS 1-2004 compliant. All plates are certified non-pyrogenic and RNase/DNase free. Case of 50 plates — 10 bags of 5 plates each. The sterile version is available as D3096-23S.

D3096-23 vs. D3096-23S — Non-Sterile vs. Sterile: The Only Difference The D3096-23 and D3096-23S are identical OptiWell™ 96-well round V-bottom 1.1mL deep well plates — sterility is the sole difference:

The D3096-23 non-sterile format is the correct choice for labs that do not require validated sterility — including compound library management at 1.1mL scale, general sample storage, non-sterile bead-based assay preparation, and any round V-bottom application where plate contents do not require a sterile vessel. For sterile bead-based workflows and sterile automated liquid handling where sterility is required, the D3096-23S is the appropriate choice.

D3096-23 vs. D3096-21 — Round V-Bottom vs. Round U-Bottom Non-Sterile at 1.1mL: Both plates are non-sterile 96-well round 1.1mL deep well plates — the well bottom geometry is the critical differentiator:

Round V-Bottom Wells — Complete Sample Recovery at 1.1mL for Non-Sterile Workflows The round V-bottom well geometry of the D3096-23 concentrates sample, beads, or pellets to the lowest point of each well for complete recovery by pipette tip or robotic probe — now in a non-sterile format at the 1.1mL volume. The round well cross-section provides maximum compatibility with the widest range of pipette tips, robotic liquid handling probes, and multichannel pipettes. For non-sterile compound cherry-picking at 1.1mL scale, non-sterile bead-based assay preparation requiring complete bead recovery, and any non-sterile application requiring complete sample recovery at 1.1mL volume, the D3096-23 provides the optimal combination of round V-bottom recovery geometry and lowest per-plate cost.

1.1mL Per Well — Non-Sterile Round V-Bottom at Mid-Volume and Lowest Cost The 1.1mL per-well capacity of the D3096-23 fills the precise volume niche between the 0.45mL round V-bottom (D3096-07) and the larger 2.3mL square V-bottom formats — providing non-sterile V-bottom working capacity at the exact 1.1mL volume at the lowest per-plate cost in this format. As the non-sterile format, the D3096-23 delivers the same round V-bottom recovery performance as the D3096-23S at a lower per-plate cost for applications that do not require sterility.

D3096-23 in the Full OptiWell™ 96-Well Non-Sterile Round Deep Well Family:

D3096-23 in the Full OptiWell™ 96-Well Non-Sterile 1.1mL Family:

Automated Platform Compatibility — ANSI/SLAS 1-2004 Standard For automated research platforms and robotic equipment. The D3096-23 conforms to ANSI/SLAS 1-2004 standard 96-well microplate footprint dimensions — ensuring compatibility with all major automated liquid handling platforms including Hamilton, Tecan, Beckman Coulter, PerkinElmer, Agilent, and other standard HTS robotic systems.

4,000 × g Centrifugation Rating Centrifugation up to 4,000 × g — covering all standard plate centrifugation protocols for cell pelleting, bead collection, and sample concentration at 1.1mL scale.

Virgin Medical-Grade Polypropylene — Minimal Binding and Liquid Retention Minimal binding / liquid retention. Virgin, medical-grade polypropylene. Certified RNase/DNase free and non-pyrogenic — the non-sterile designation refers only to the absence of gamma irradiation sterilization, not to the purity of the polypropylene resin.

Black Printed Alpha-Numerics — Instant Well Identification Black printed alpha-numerics. Molded black alpha-numeric well identification (A through H rows, 1 through 12 columns).

Class 100,000 Cleanroom Production — Certified Purity Plates are produced and packaged in a Class 100,000 clean room. Certified non-pyrogenic and RNase/DNase free — maintaining molecular biology grade purity standards despite the non-sterile designation.

Compatible Replacement — Cross-Reference Guide

The MTC Bio OptiWell™ D3096-23 is a comparable alternative to non-sterile 96-well round V-bottom 1.1mL deep well plates from several major manufacturers:

• Thermo Fisher AB-0788 — Thermo Scientific 96-well round V-bottom deep well plate, 1.1mL, non-sterile
• Greiner Bio-One 780201 — 96-well deep well plate, round V-bottom, 1.1mL, non-sterile
• Eppendorf® 0030503319 — Eppendorf 96-well deepwell plate, round V-bottom, 1.1mL, non-sterile

Competitor brand names and catalog numbers are referenced for cross-referencing purposes only. Volume specifications may vary. Compatibility should be verified for your specific application and protocol.

Key Features

• MTC Bio OptiWell™ — Catalog # D3096-23
• 96-well deep well plate — round V-bottom wells
• 1.1mL per-well capacity
• Round V-bottom — complete sample recovery at 1.1mL non-sterile scale
• Non-sterile — lowest per-plate cost in the 1.1mL round V-bottom format
• Virgin medical-grade polypropylene — minimal binding and liquid retention
• Black printed alpha-numerics — instant well identification
• ANSI/SLAS 1-2004 compliant — compatible with all standard automated liquid handling platforms
• 4,000 × g centrifugation rating
• Compatible with silicone sealing mats and sealing film
• No lid, no skirt
• Autoclavable — can be sterilized before use if required
• Class 100,000 cleanroom production
• Certified RNase-free and DNase-free
• Certified non-pyrogenic
• Sterile version: D3096-23S
• Case of 50 plates — 10 bags of 5 plates

Supported Applications Non-sterile compound cherry-picking and reformatting at 1.1mL scale with complete well recovery, non-sterile bead-based assay preparation requiring V-bottom complete recovery at mid-volume, automated liquid handling sample processing requiring round V-bottom geometry, non-sterile cell pelleting in 96-well format, centrifugation workflows up to 4,000 × g, general sample storage and archiving, HPLC sample preparation, compound dilution series at 1.1mL scale, and any 96-well application requiring non-sterile round V-bottom deep well format with 1.1mL per-well capacity and full automated platform compatibility.
