Product Description

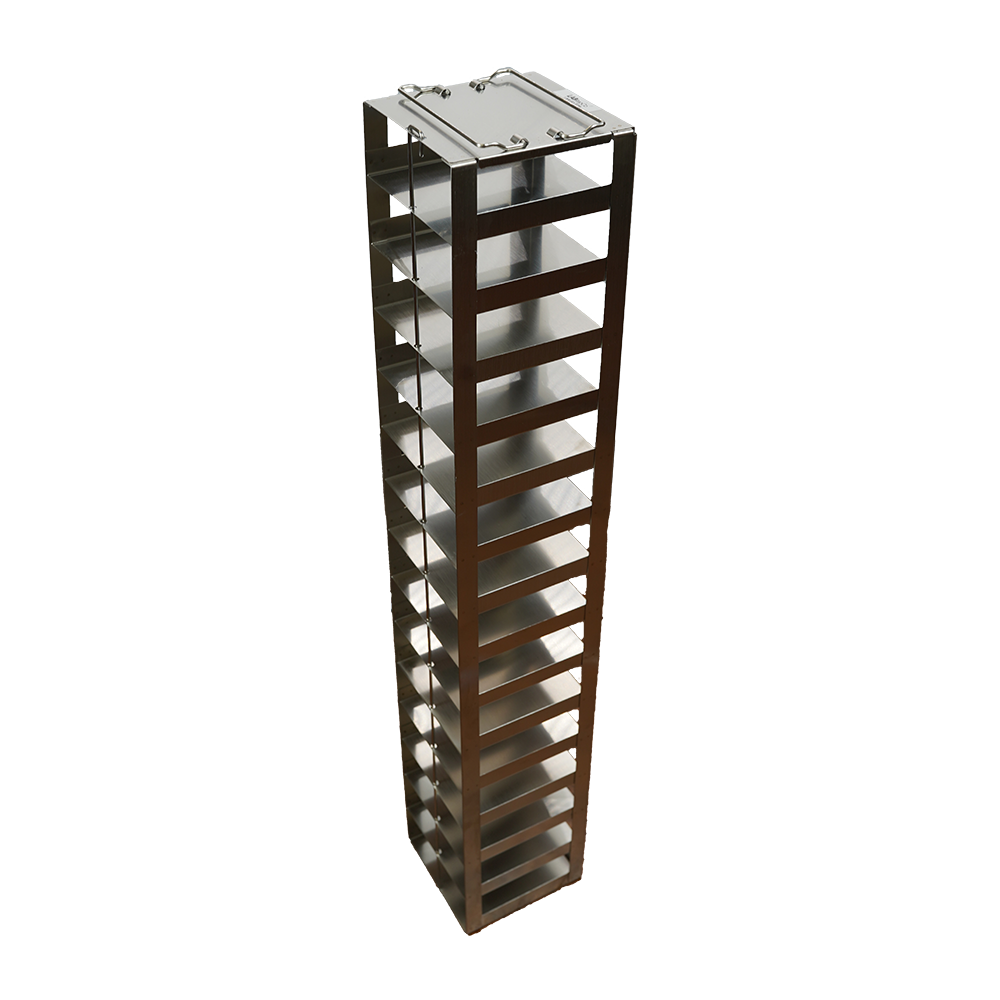

LIGHT LABS is proud to offer the Crystal Technology & Industries Stainless Steel Vertical Freezer Rack for Standard 2" Boxes (Cat # CF-15-2). This extra-tall, maximum-capacity vertical rack stores fifteen standard 2" freezer boxes in a single column, stacked 15 boxes high. It is built for large liquid nitrogen (LN2) tanks and tall chest freezers. At 33 1/4" tall, it holds five more boxes than the 10-high CF-10-2 in the same 5 5/8" x 5 1/2" footprint, so it fits the most boxes into every rack position in a deep tank.
The CF-15-2 is made of pharmaceutical-grade stainless steel with double-welded joints for strength and long-term durability at ultra-low and cryogenic temperatures. All edges are smoothed for safe handling, even with cryogenic gloves. Each of the fifteen compartments measures 2 3/16" x 5 5/16" x 5 3/8" and accepts standard 2" cryoboxes and freezer boxes in fiberboard, cardboard, or plastic. A built-in handle at the top of the rack makes lifting it in and out of the tank quick and easy.
The CF-15-2 is sold as a rack only. Storage boxes are not included, so you can use your existing 2" boxes. Pre-configured versions with 2" boxes and 81-cell or 100-cell dividers are also available. For added sample security, an optional lock device is sold separately. LIGHT LABS is your trusted source for laboratory freezer racks and cold storage solutions.
KEY FEATURES
- Holds 15 standard 2" boxes — single-column vertical design, 15 boxes high
- Maximum capacity — five more boxes than the 10-high CF-10-2 in the same footprint
- Sized for large LN2 tanks — 33 1/4" tall, for deep tanks and tall chest freezers
- For chest freezers and LN2 tanks — lowers straight down for efficient top-access storage
- Pharmaceutical-grade stainless steel — corrosion resistant and durable at ultra-low and cryogenic temperatures
- Double-welded construction — strong, rigid, built for long-term use
- Smoothed edges — safe handling, even with cryogenic gloves
- Built-in handle — easy lifting in and out of the tank
- Rack only — use your existing 2" fiberboard, cardboard, or plastic boxes
- Versions with boxes available — with 81-cell (CF-15-2-W-81) or 100-cell (CF-15-2-W-100) dividers
- Optional lock device — sold separately
- Made by Crystal Technology & Industries
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | CF-15-2 |
| Brand | Crystal Technology & Industries |
| Product Name | Stainless Steel Vertical Freezer Rack for Standard 2" Boxes |
| Rack Type | Vertical (top-access) |
| Box Capacity | 15 boxes (1 column x 15 high) |
| Box Size | Standard 2" freezer boxes |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double-welded, smoothed edges |
| Handle | Yes, built-in |
| Freezer Compatibility | Chest freezers, LN2 tanks |
| Overall Dimensions | 33 1/4" x 5 5/8" x 5 1/2" (845 x 143 x 140 mm) |
| Compartment Dimensions | 2 3/16" x 5 5/16" x 5 3/8" (55 x 134.5 x 136 mm) |
| Boxes Included | No (rack only) |
| Lock Device | Sold separately |
CRYSTAL VERTICAL RACKS FOR 2" BOXES — CHOOSE BY HEIGHT
| Boxes High | Overall Height | Standard Rack | Spring-Clip Rack |
|---|---|---|---|
| 15 | 33 1/4" (845 mm) | CF-15-2 | CF-15-2-S |
| 14 | 31 1/16" (789 mm) | CF-14-2 | CF-14-2-S |
| 13 | 28 1/2" (724 mm) | CF-13-2 | CF-13-2-S |
| 12 | 26 5/8" (677 mm) | CF-12-2 | CF-12-2-S |
| 11 | 24 1/2" (622 mm) | CF-11-2 | CF-11-2-S |
| 10 | 22 5/16" (566 mm) | CF-10-2 | CF-10-2-S |
All racks share the same 5 5/8" x 5 1/2" footprint. Every rack is also available with 2" boxes and 81-cell (-W-81) or 100-cell (-W-100) dividers.
APPLICATIONS
- Maximum-capacity storage of 2" cryoboxes in large LN2 tanks
- Vapor-phase and liquid-phase LN2 storage
- Tall chest freezer storage (−20°C, −80°C)
- Biorepository and biobank sample organization
- Cryovial storage for cell lines, stem cells, and primary cells
- DNA, RNA, protein, and serum sample archiving
- Any laboratory application requiring maximum-capacity vertical storage of standard 2" freezer boxes
