Product Description

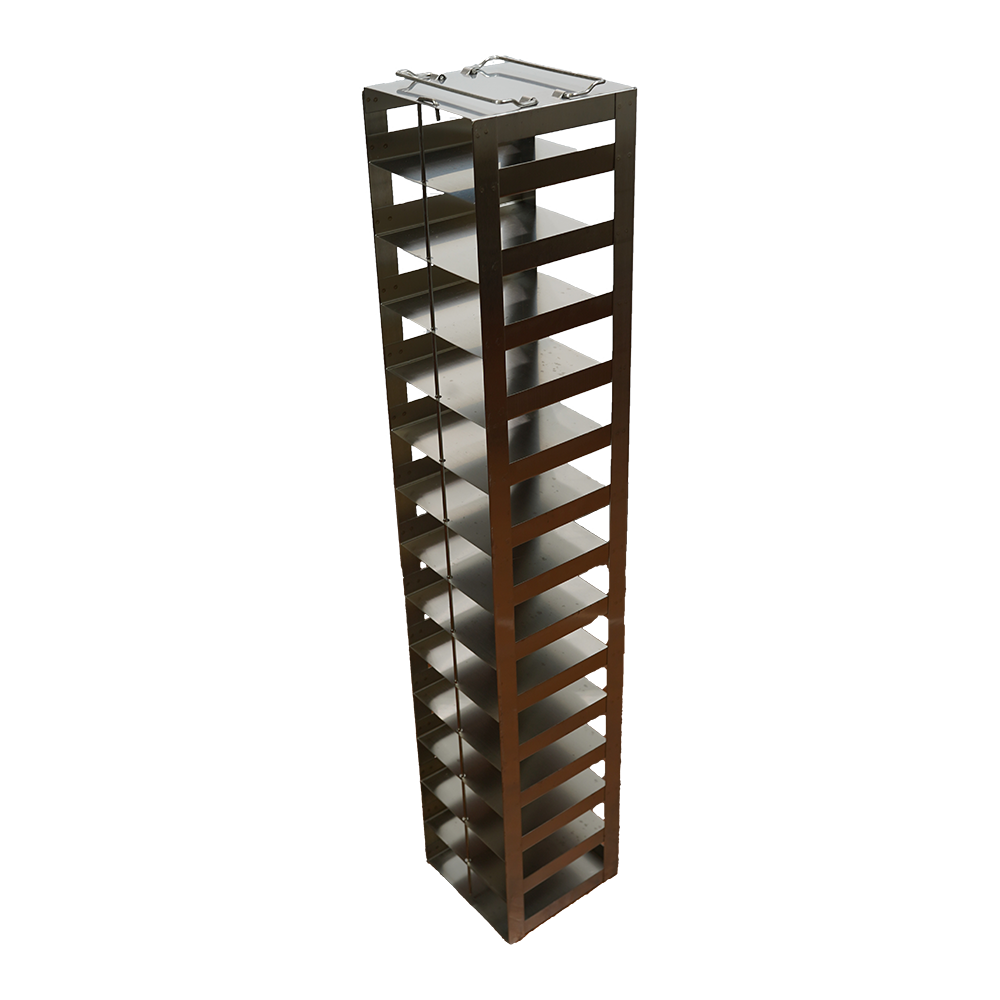

LIGHT LABS is proud to offer the Crystal Technology & Industries Stainless Steel Vertical Freezer Rack with Spring Clips for Standard 2" Boxes (Cat # CF-14-2-S). This extra-tall, high-capacity vertical rack stores fourteen standard 2" freezer boxes in a single column, stacked 14 boxes high, for large liquid nitrogen (LN2) tanks and tall chest freezers. Integrated spring clips hold each box in place, so boxes stay put when the rack is lifted, tilted, or moved. That cuts the risk of a box sliding out and dropping samples into the tank or onto the floor.
The CF-14-2-S is the tallest, highest-capacity rack in Crystal's 2" spring-clip line. At 31 1/16" tall, it holds four more boxes than the 10-high CF-10-2-S in the same 5 5/8" x 5 1/2" footprint. On a rack this tall, built-in box retention matters most. Lifting a fully loaded 14-high rack out of a deep LN2 tank puts the most stress on box retention, and the spring clips hold every box securely without loose locking rods to handle while you're wearing cryogenic gloves. The rack is made of pharmaceutical-grade stainless steel with double-welded joints for strength and long-term durability at cryogenic temperatures. All edges are smoothed for safe handling. Each of the fourteen compartments measures 2 3/16" x 5 5/16" x 5 5/16" and accepts standard 2" cryoboxes and freezer boxes in fiberboard, cardboard, or plastic. A built-in handle at the top makes lifting the rack in and out of the tank quick and easy.
The CF-14-2-S is sold as a rack only. Storage boxes are not included, so you can use your existing 2" boxes. Pre-configured versions with 2" boxes and 81-cell or 100-cell dividers are also available. For added security, an optional lock device is sold separately. LIGHT LABS is your trusted source for laboratory freezer racks and cold storage solutions.
KEY FEATURES
- Integrated spring clips — hold each box securely in place when the rack is lifted or tilted
- Holds 14 standard 2" boxes — single-column vertical design, 14 boxes high
- Highest capacity in the spring-clip line — four more boxes than the 10-high CF-10-2-S in the same footprint
- Sized for large LN2 tanks — 31 1/16" tall, for deep tanks and tall chest freezers
- For chest freezers and LN2 tanks — lowers straight down for efficient top-access storage
- Pharmaceutical-grade stainless steel — corrosion resistant and durable at ultra-low and cryogenic temperatures
- Double-welded construction — strong, rigid, built for long-term use
- Smoothed edges — safe handling, even with cryogenic gloves
- Built-in handle — easy lifting in and out of the tank
- Rack only — use your existing 2" fiberboard, cardboard, or plastic boxes
- Versions with boxes available — with 81-cell (CF-14-2-S-W-81) or 100-cell (CF-14-2-S-W-100) dividers
- Optional lock device — sold separately
- Made by Crystal Technology & Industries
SPECIFICATIONS
| Attribute | Detail |
|---|---|
| Catalog Number | CF-14-2-S |
| Brand | Crystal Technology & Industries |
| Product Name | Stainless Steel Vertical Freezer Rack with Spring Clips for Standard 2" Boxes |
| Rack Type | Vertical (top-access) |
| Box Retention | Integrated spring clips |
| Box Capacity | 14 boxes (1 column x 14 high) |
| Box Size | Standard 2" freezer boxes |
| Material | Pharmaceutical-grade stainless steel |
| Construction | Double-welded, smoothed edges |
| Handle | Yes, built-in |
| Freezer Compatibility | Chest freezers, LN2 tanks |
| Overall Dimensions | 31 1/16" x 5 5/8" x 5 1/2" (789 x 143 x 140 mm) |
| Compartment Dimensions | 2 3/16" x 5 5/16" x 5 5/16" (55 x 135 x 135 mm) |
| Boxes Included | No (rack only) |
| Lock Device | Sold separately |
CRYSTAL VERTICAL RACKS FOR 2" BOXES — CHOOSE BY HEIGHT
| Boxes High | Overall Height | Standard Rack | Spring-Clip Rack |
|---|---|---|---|
| 14 | 31 1/16" (789 mm) | CF-14-2 | CF-14-2-S |
| 13 | 28 1/2" (724 mm) | CF-13-2 | CF-13-2-S |
| 12 | 26 5/8" (677 mm) | CF-12-2 | CF-12-2-S |
| 11 | 24 1/2" (622 mm) | CF-11-2 | CF-11-2-S |
| 10 | 22 5/16" (566 mm) | CF-10-2 | CF-10-2-S |
All racks share the same 5 5/8" x 5 1/2" footprint. Every rack is also available with 2" boxes and 81-cell (-W-81) or 100-cell (-W-100) dividers.
APPLICATIONS
- Secure, high-capacity storage of 2" cryoboxes in large LN2 tanks
- Vapor-phase and liquid-phase LN2 storage
- Tall chest freezer storage (−20°C, −80°C)
- Racks that are frequently lifted, tilted, or moved between freezers
- Biorepository and biobank sample organization
- Cryovial storage for cell lines, stem cells, and primary cells
- Any laboratory application requiring maximum-capacity vertical storage with built-in box retention
